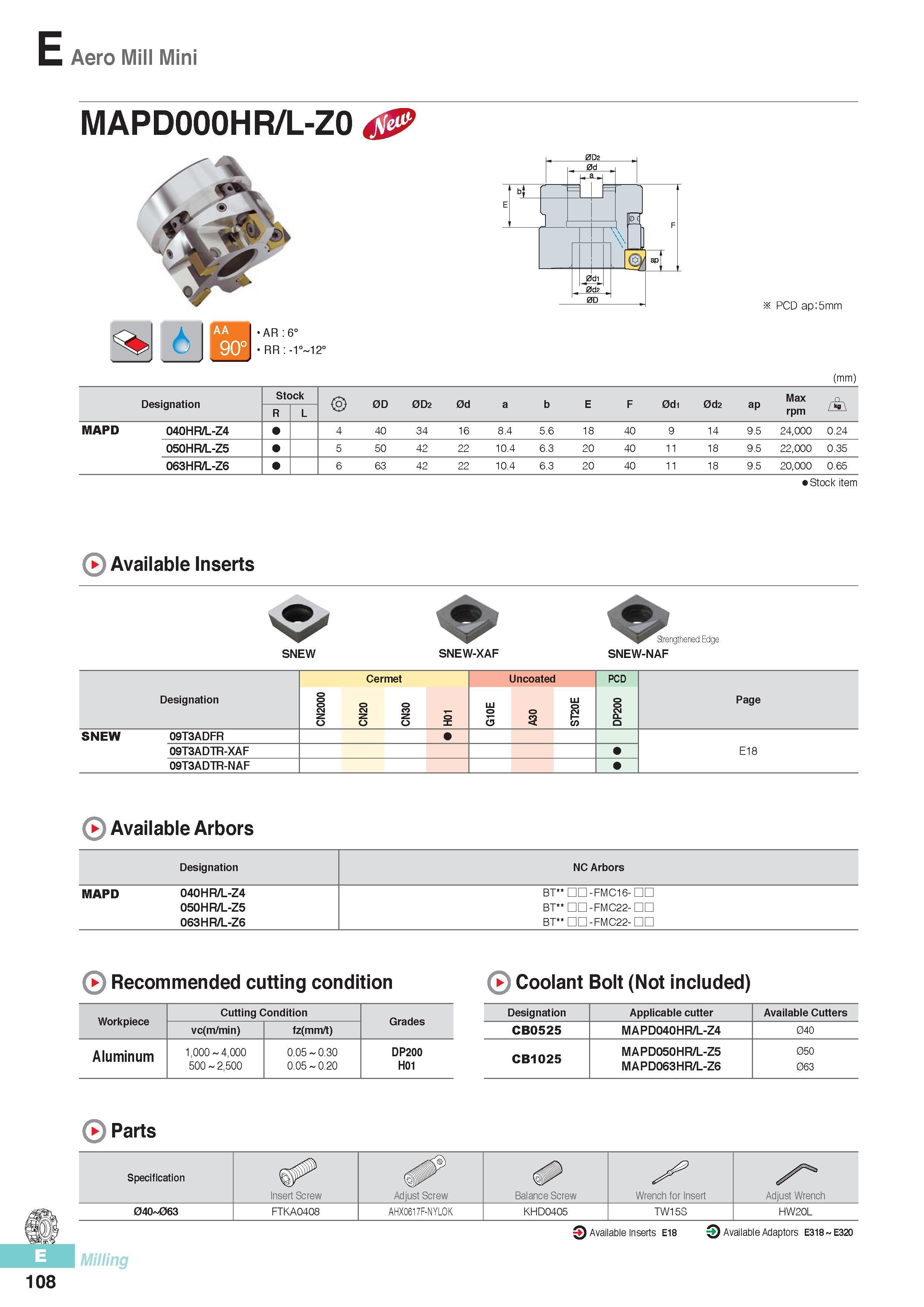

Aero Mill Mini AR :6° I RR -1° 12° R 0di 0d2 0D PCD ap:5mm (mm) Designation Stock 0D 0D2 0d a b E F 0d1 0d2 ap Max f+\ R L rpm MAPD 040HR/L-Z4 4 40 34 16 8.4 5.6 18 40 9 14 9.5 24,000 0.24 050HR/L-Z5 5 50 42 22 10.4 6.3 20 40 11 18 9.5 22,000 0.35 063HR/L-Z6 6 63 42 22 10.4 6.3 20 40 11 18 9.5 20,000 0.65 Stock item 0 Available Inserts SNEW SNEW-XAF SNEW-NAF Designation Cermet Uncoated PCD Page CN2000 CN20 CN30 H01 G10E A30 ST20E DP200 SNEW 09T3ADFR 09T3ADTR-XAF E18 09T3ADTR-NAF 0 Available Arbors Designation NC Arbors MAPD 040HR/L-Z4 BT -FMC16- 050HR/L-Z5 BT -FMC22- 063HR/L-Z6 BT -FMC22- 0 Recommended cutting condition Workpiece Cutting Condition Grades vc(m/min) fz(mm/t) Aluminum 1,000 4,000 500 2,500 0.05 0.30 0.05 0.20 DP200 H01 0 Coolant Bolt (Not included) Designation Applicable cutter Available Cutters CB0525 MAPD040HR/L-Z4 040 CB1025 MAPD050HR/L-Z5 MAPD063HR/L-Z6 050 063 0 Parts Specification Insert Screw Adjust Screw Balance Screw Wrench for Insert Adjust Wrench 040 063 FTKA0408 AHX0617F-NYLQK KHD0405 TW15S HW20L 108 Milling 0 Available Inserts E18 3 Available Adaptors E318 E320
