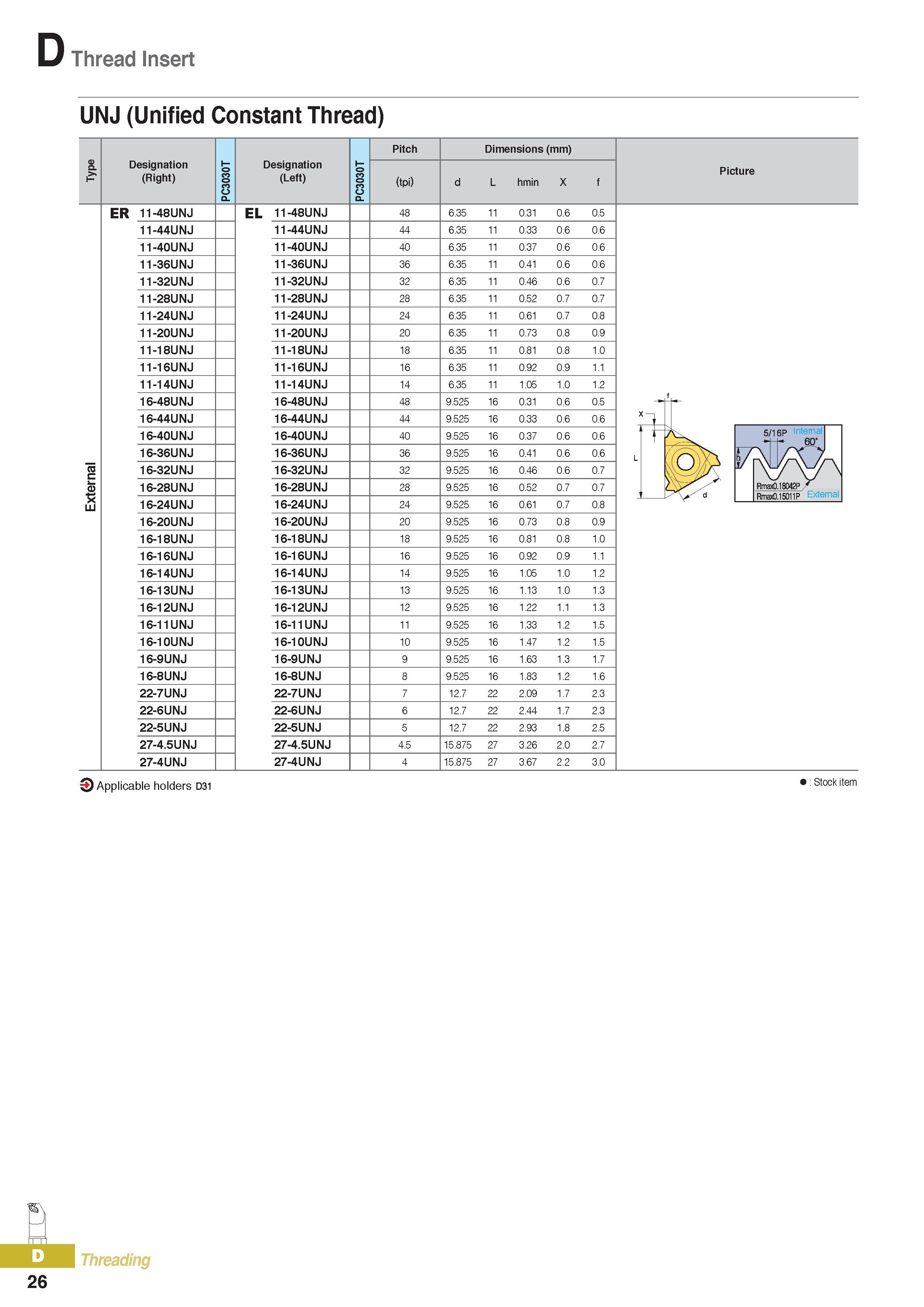

Thread Insert UNJ (Unified Constant Thread) Designation (Right) PC3030T Designation (Left) PC3030T Pitch Dimensions (mm) (tpi) d L hmin X f ER 11-48UNJ EL 11-48UNJ 48 6.35 11 0.31 0.6 0.5 11-44UNJ 11-44UNJ 44 6.35 11 0.33 0.6 0.6 11-40UNJ 11-40UNJ 40 6.35 11 0.37 0.6 0.6 11-36UNJ 11-36UNJ 36 6.35 11 0.41 0.6 0.6 11-32UNJ 11-32UNJ 32 6.35 11 0.46 0.6 0.7 11-28UNJ 11-28UNJ 28 6.35 11 0.52 0.7 0.7 11-24UNJ 11-24UNJ 24 6.35 11 0.61 0.7 0.8 11-20UNJ 11-20UNJ 20 6.35 11 0.73 0.8 0.9 11-18UNJ 11-18UNJ 18 6.35 11 0.81 0.8 1.0 11-16UNJ 11-16UNJ 16 6.35 11 0.92 0.9 1.1 11-14UNJ 11-14UNJ 14 6.35 11 1.05 1.0 1.2 16-48UNJ 16-48UNJ 48 9.525 16 0.31 0.6 0.5 16-44UNJ 16-44UNJ 44 9.525 16 0.33 0.6 0.6 16-40UNJ 16-40UNJ 40 9.525 16 0.37 0.6 0.6 16-36UNJ 16-36UNJ 36 9.525 16 0.41 0.6 0.6 16-32UNJ 16-32UNJ 32 9.525 16 0.46 0.6 0.7 16-28UNJ 16-28UNJ 28 9.525 16 0.52 0.7 0.7 16-24UNJ 16-24UNJ 24 9.525 16 0.61 0.7 0.8 16-20UNJ 16-20UNJ 20 9.525 16 0.73 0.8 0.9 16-18UNJ 16-18UNJ 18 9.525 16 0.81 0.8 1.0 16-16UNJ 16-16UNJ 16 9.525 16 0.92 0.9 1.1 16-14UNJ 16-14UNJ 14 9.525 16 1.05 1.0 1.2 16-13UNJ 16-13UNJ 13 9.525 16 1.13 1.0 1.3 16-12UNJ 16-12UNJ 12 9.525 16 1.22 1.1 1.3 16-11UNJ 16-11UNJ 11 9.525 16 1.33 1.2 1.5 16-10UNJ 16-10UNJ 10 9.525 16 1.47 1.2 1.5 16-9UNJ 16-9UNJ 9 9.525 16 1.63 1.3 1.7 16-8UNJ 16-8UNJ 8 9.525 16 1.83 1.2 1.6 22-7UNJ 22-7UNJ 7 12.7 22 2.09 1.7 2.3 22-6UNJ 22-6UNJ 6 12.7 22 2.44 1.7 2.3 22-5UNJ 22-5UNJ 5 12.7 22 2.93 1.8 2.5 27-4.5UNJ 27-4.5UNJ 4.5 15.875 27 3.26 2.0 2.7 27-4UNJ 27-4UNJ 4 15.875 27 3.67 2.2 3.0 Picture O Applicable holders D31 Stock item Jm Threading 26
