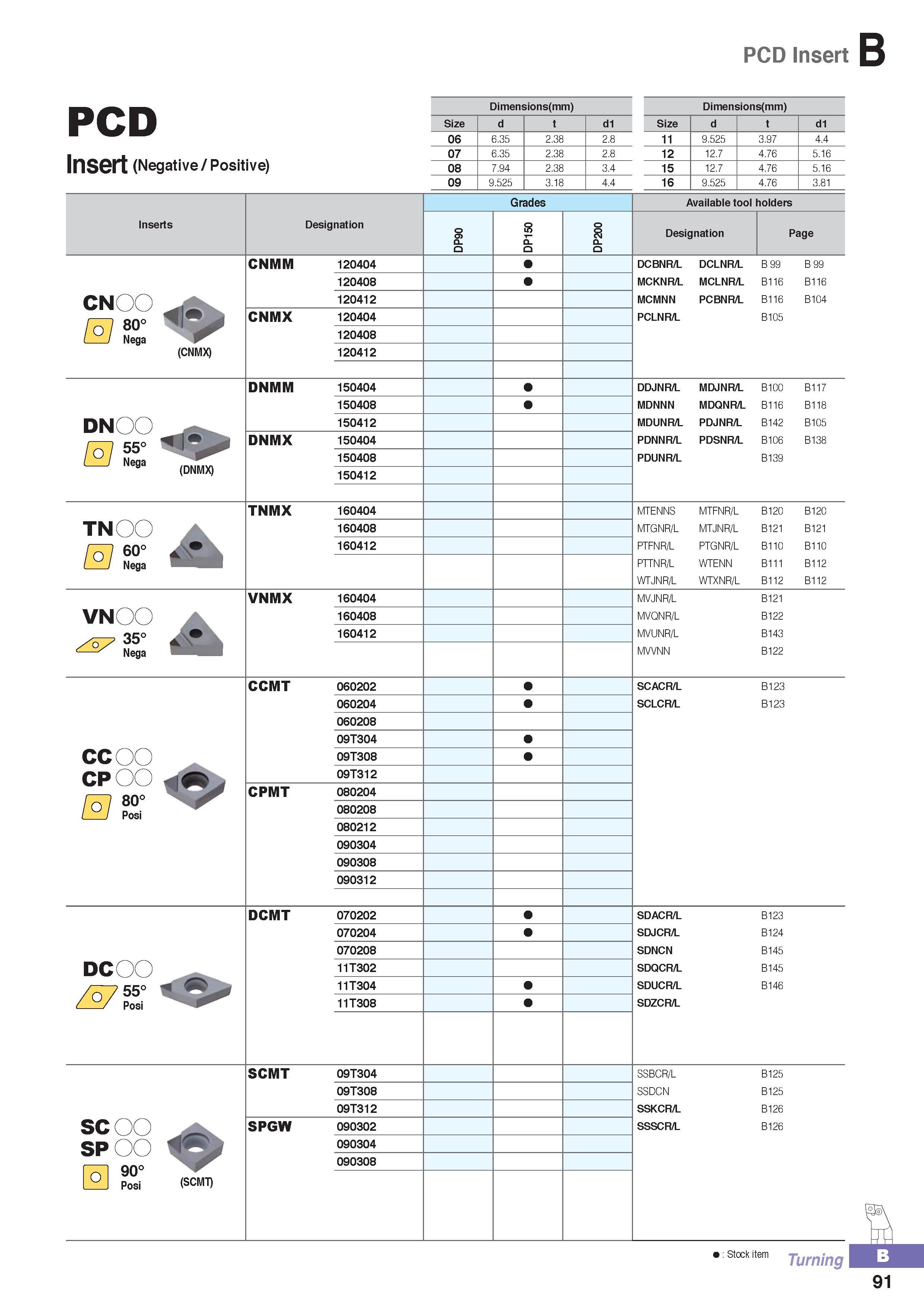

PCD Insert B PCD Insert (Negative / Positive) Dimensions (mm) Dimensions(mm) Inserts CNOC 80° Nega (CNMX) DNOC 55o (DNMX) TNOC 60 N j VNOC 35° Nega CCOC CP oc 80° Posi DCOO 55° Posi SCOC SP oc o 90° Posi (SCMT Designation CNMM 120404 120408 120412 CNMX 120404 120408 120412 DNMM 150404 150408 150412 DNMX 150404 150408 150412 TNMX 160404 160408 160412 VNMX 160404 160408 160412 CCMT 060202 060204 060208 09T304 09T308 09T312 CPMT 080204 080208 080212 090304 090308 090312 DCMT 070202 070204 070208 11T302 11T304 11T308 SCMT 09T304 09T308 09T312 SPGW 090302 090304 090308 Size d t d1 06 6.35 2.38 2.8 07 6.35 2.38 2.8 08 7.94 2.38 3.4 09 9.525 3.18 4.4 Grades a. a a. a 8 a. a Size d t d1 11 9.525 3.97 4.4 12 12.7 4.76 5.16 15 12.7 4.76 5.16 16 9.525 4.76 3.81 Available tool holders Designation Page DCBNR/L DCLNR/L B 99 B 99 MCKNR/L MCLNR/L B116 B116 MCMNN PCBNR/L B116 B104 PCLNR/L B105 DDJNR/L MDJNR/L B100 B117 MDNNN MDQNR/L B116 B118 MDUNR/L PDJNR/L B142 B105 PDNNR/L PDSNR/L B106 B138 PDUNR/L B139 MTENNS MTFNR/L B120 B120 MTGNR/L MTJNR/L B121 B121 PTFNR/L PTGNR/L B110 B110 PTTNR/L WTENN B111 B112 WTJNR/L WTXNR/L B112 B112 MVJNR/L B121 MVQNR/L B122 MVUNR/L B143 MVVNN B122 SCACR/L B123 SCLCR/L B123 SDACR/L SDJCR/L SDNCN SDQCR/L SDUCR/L SDZCR/L B123 B124 B145 B145 B146 SSBCR/L SSDCN SSKCR/L SSSCR/L B125 B125 B126 B126 Stock item l B Turning 91
