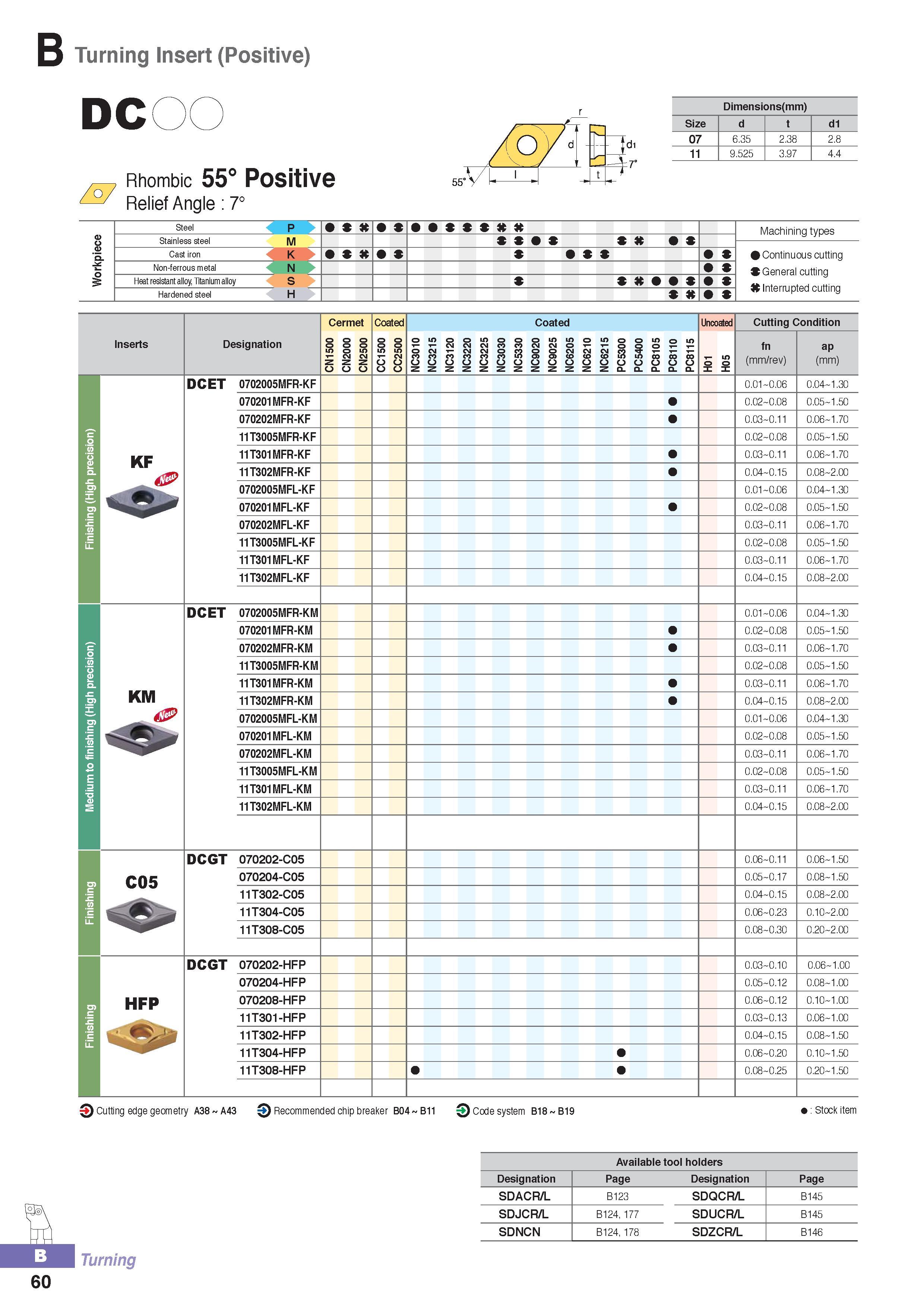

B Turning Insert (Positive) DC Rhombic 55° Positive Relief Angle 7° Dimensions (mm) Size d d1 07 6.35 2.38 2.8 11 9.525 3.97 4.4 Steel p Machining types Stainless steel M Cast iron K Continuous cutting Non-ferrous metal N Heat resistant alloy, Titanium alloy S Hardened steel H X Inlenupled culling Inserts Designation Cermet Coated Coated Uncoated Cutting Condition CN1500 CN2000 CN2500 CC1500 CC2500 050050005505005 1-1-WWWCOCOWWOi-i-OOO C9C9C9C9C9C9LOQQ<0<0<0IOLOCO OOO ZZZZZZZZZZZZQ.Q.Q. 10 o a. 5 5 o a. 1- 10 HH fn (mm/rev) ap (mm) KF DCET 0702005MFR-KF 0.01 0.06 0.04 1.30 070201MFR-KF 0.02 0.08 0.05 1.50 070202MFR-KF 0.03 0.11 0.06 1.70 11T3005MFR-KF 0.02 0.08 0.05 1.50 11T301MFR-KF 0.03 0.11 0.06 1.70 11T302MFR-KF 0.04 0.15 0.08 2.00 0702005MFL-KF 0.01 0.06 0.04 1.30 070201MFL-KF 0.02 0.08 0.05 1.50 070202MFL-KF 0.03 0.11 0.06 1.70 11T3005MFL-KF 0.02 0.08 0.05 1.50 11T301MFL-KF 0.03 0.11 0.06 1.70 11T302MFL-KF 0.04 0.15 0.08 2.00 KM DCET 0702005MFR-KM 0.01 0.06 0.04 1.30 070201MFR-KM 0.02 0.08 0.05 1.50 070202MFR-KM 0.03 0.11 0.06 1.70 11T3005MFR-KM 0.02 0.08 0.05 1.50 11T301MFR-KM 0.03 0.11 0.06 1.70 11T302MFR-KM 0.04 0.15 0.08 2.00 0702005MFL-KM 0.01 0.06 0.04 1.30 "V 070201MFL-KM 0.02 0.08 0.05 1.50 070202MFL-KM 0.03 0.11 0.06 1.70 11T3005MFL-KM 0.02 0.08 0.05 1.50 11T301MFL-KM 0.03 0.11 0.06 1.70 11T302MFL-KM 0.04 0.15 0.08 2.00 C05 DCGT 070202-C05 0.06 0.11 0.06 1.50 070204-C05 0.05 0.17 0.08 1.50 11T302-C05 0.04 0.15 0.08 2.00 11T304-C05 0.06 0.23 0.10 2.00 11T308-C05 0.08 0.30 0.20 2.00 HFP DCGT 070202-HFP 0.03 0.10 0.06 1.00 070204-HFP 0.05 0.12 0.08 1.00 070208-HFP 0.06 0.12 0.10 1.00 11T301-HFP 0.03 0.13 0.06 1.00 11T302-HFP 0.04 0.15 0.08 1.50 11T304-HFP 0.06 0.20 0.10 1.50 11T308-HFP 0.08 0.25 0.20 1.50 Cutting gdge geometry A38 A43 3 Recommended chip breaker B04 B11 Code system B18 B19 Stock item Available tool holders Designation Page Designation Page SDACR/L B123 SDQCR/L B145 SDJCR/L B124, 177 SDUCR/L B145 SDNCN B124, 178 SDZCR/L B146 Turning 60
