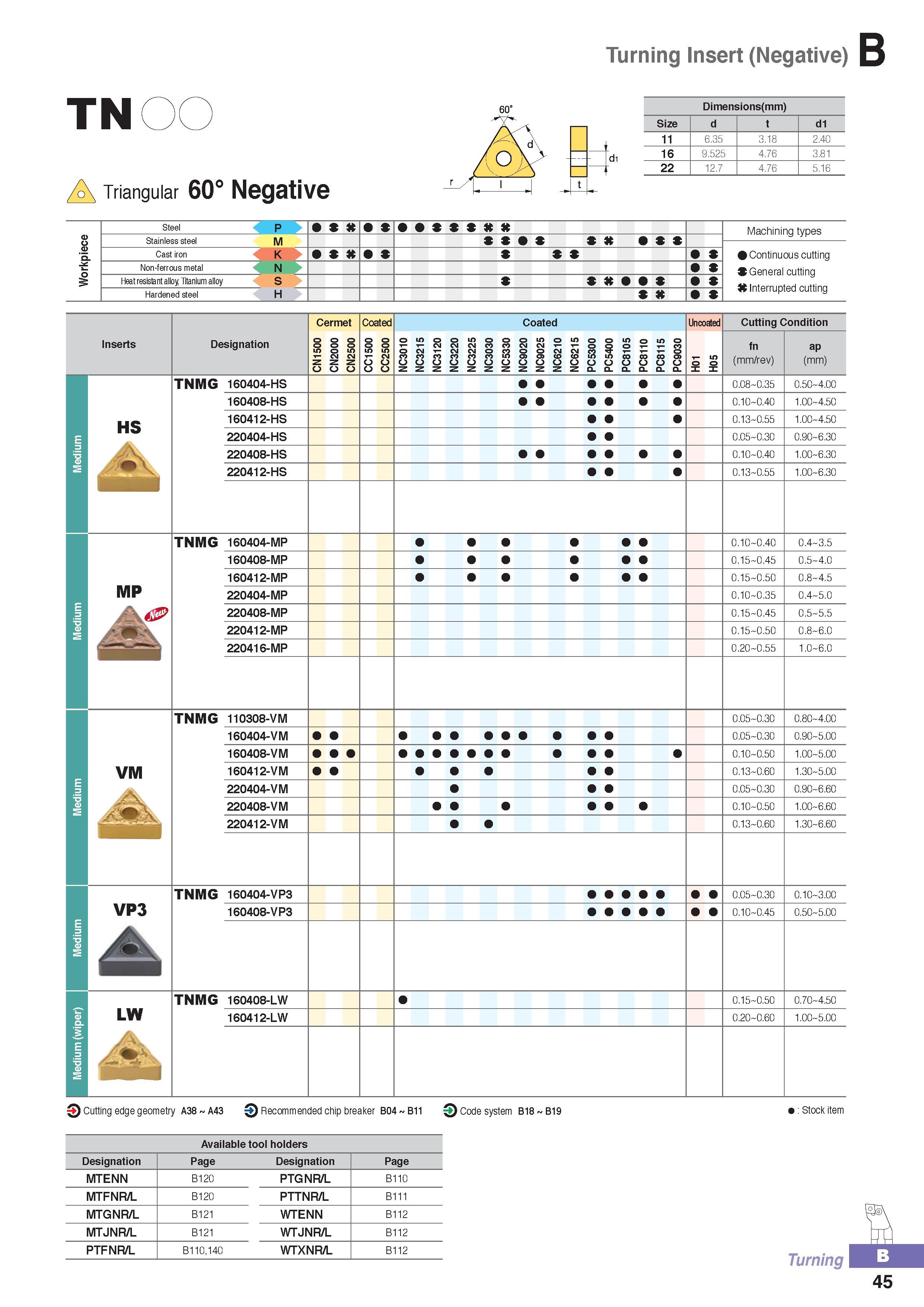

Turning Insert (Negative) TN Triangular 60° Negative Dimensions (mm) Size d d1 11 6.35 3.18 2.40 16 9.525 4.76 3.81 22 12.7 4.76 5.16 Steel p K Stainless steel M Cast iron K Non-ferrous metal N Heat resistant alloy Titanium alloy S Hardened steel H Machining types Continuous cutting General cutting Interrupted cutting Inserts Designation Cermet Coated Coated Uncoated Cutting Condition CN1500 CN2000 CN2500 CC1500 CC2500 NC3010 NC3215 NC3120 NC3220 NC3225 NC3030 NC5330 NC9020 NC9025 NC6210 NC6215 PC5300 PC5400 PC8105 PC8110 PC8115 PC9030 H01 H05 fn (mm/rev) ap (mm) HS TNMG 160404-HS 0.08 0.35 0.50 4.00 160408-HS 0.10 0.40 1.00 4.50 160412-HS 0.13 0.55 1.00 4.50 220404-HS 0.05 0.30 0.90 6.30 220408-HS 0.10 0.40 1.00 6.30 220412-HS 0.13 0.55 1.00 6.30 MP TNMG 160404-MP 0.10 0.40 0.4 3.5 160408-MP 0.15 0.45 0.5 4.0 160412-MP 0.15 0.50 0.8 4.5 220404-MP 0.10 0.35 0.4 5.0 220408-MP 0.15 0.45 0.5 5.5 220412-MP 0.15 0.50 0.8 6.0 220416-MP 0.20 0.55 1.0 6.0 VM TNMG 110308-VM 0.05 0.30 0.80 4.00 160404-VM 0.05 0.30 0.90 5.00 160408-VM 0.10 0.50 1.00 5.00 160412-VM 0.13 0.60 1.30 5.00 220404-VM 0.05 0.30 0.90 6.60 220408-VM 0.10 0.50 1.00 6.60 220412-VM 0.13 0.60 1.30 6.60 VP3 TNMG 160404-VP3 0.05 0.30 0.10 3.00 160408-VP3 0.10 0.45 0.50 5.00 LW TNMG 160408-LW 0.15 0.50 0.70 4.50 160412-LW 0.20 0.60 1.00 5.00 3 Cutting edge geometry A38 A43 3 Recommended chip breaker B04 B11 3 Code system B18 B19 Available tool holders Stock item Designation Page Designation Page MTENN B120 PTGNR/L B110 MTFNR/L B120 PTTNR/L B111 MTGNR/L B121 WTENN B112 MTJNR/L B121 WTJNR/L B112 PTFNR/L B110,140 WTXNR/L B112 Turning 45
