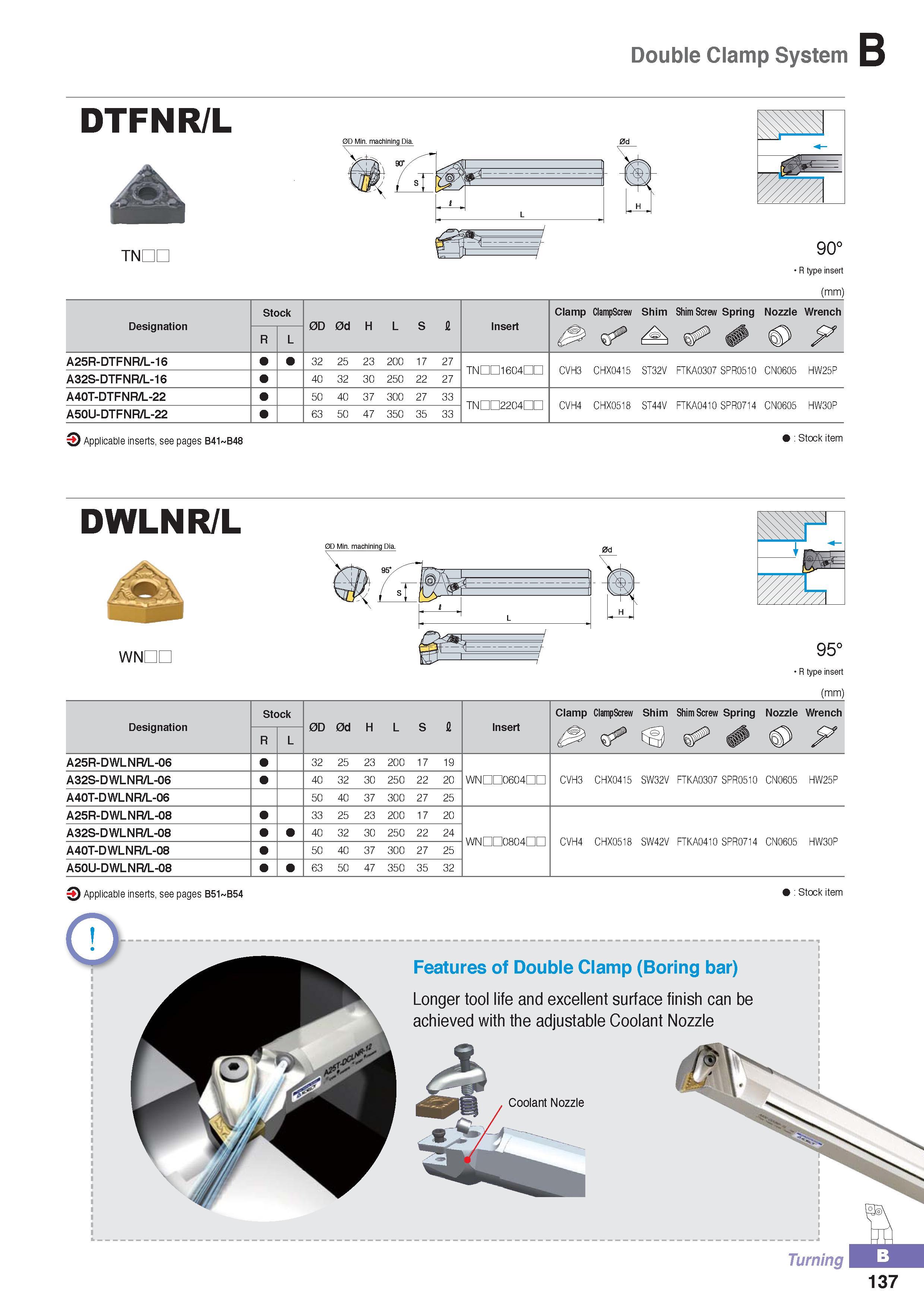

Double Clamp System DTFNR/L A TNDC 0D Min. machining Dia. 90° R type insert (mm) Designation Stock 0 D 0 a. H L S Insert Clamp ClampScrew Shim Shim Screw Spring Nozzle Wrench 0 fp jP’’ R L A25R-DTFNR/L-16 32 25 23 200 17 27 TNmi604m CVH3 CHX0415 ST32V FTKA0307 SPR0510 CN0605 HW25P A32S-DTFNR/L-16 40 32 30 250 22 27 A40T-DTFNR/L-22 50 40 37 300 27 33 TN 22041ml CVH4 CHX0518 ST44V FTKA0410 SPR0714 CN0605 HW30P A50U-DTFNR/L-22 63 50 47 350 35 33 O Applicable inserts, see pages B41 B48 Stock item DWLNR/L WNDC 95° R type insert (mm) Designation Stock 0D 0d H L S A Insert Clamp ClampScrew Shim Shim Screw Spring Nozzle Wrench R L eg) y A25R-DWLNR/L-06 32 25 23 200 17 19 A32S-DWLNR/L-06 40 32 30 250 22 20 WN 0604m CVH3 CHX0415 SW32V FTKA0307 SPR0510 CN0605 HW25P A40T-DWLNR/L-06 50 40 37 300 27 25 A25R-DWLNR/L-08 33 25 23 200 17 20 A32S-DWLNR/L-08 40 32 30 250 22 24 WNm0804m CVH4 CHX0518 SW42V FTKA0410 SPR0714 CN0605 HW30P A40T-DWLNR/L-08 50 40 37 300 27 25 A50U-DWLNR/L-08 63 50 47 350 35 32 O Applicable inserts, see pages B51 B54 Stock item Features of Double Clamp (Boring bar) Longer tool life and excellent surface finish can be achieved with the adjustable Coolant Nozzle Coolant Nozzle Turning 137
