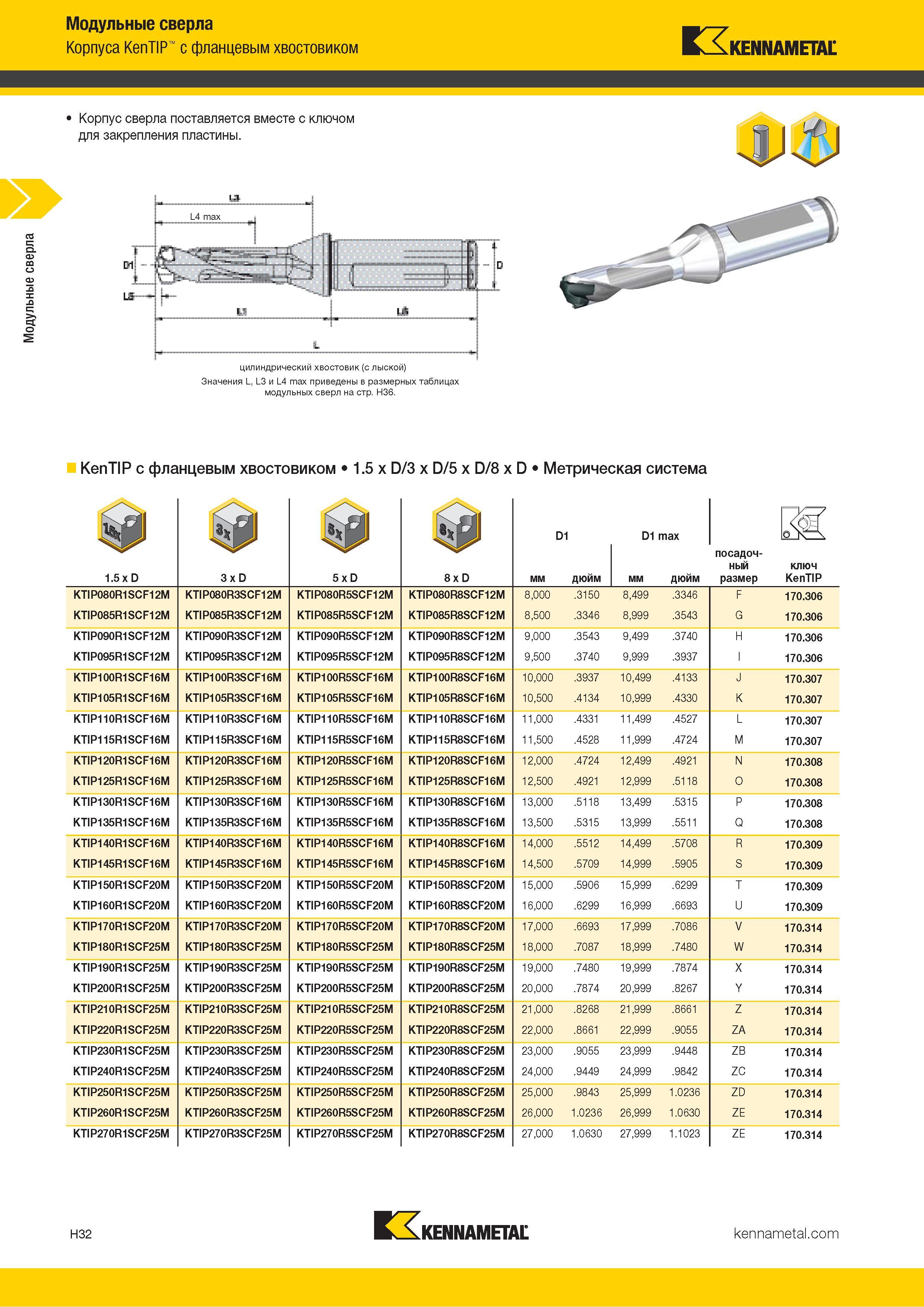

Модульные сверла Корпуса KenTIP с фланцевым хвостовиком Kennametal Корпус сверла поставляется вместе с ключом для закрепления пластины. Значения L, L3 и L4 max приведены в размерных таблицах модульных сверл на стр. H36. KenTIP с фланцевым хвостовиком 1.5 x D/3 x D/5 x D/8 x D Метрическая система 1.5 x D 3 x D 5 x D 8 x D D1 D1 max мм дюйм дюйм посадоч- ный размер ключ KenTIP KTIP080R1SCF12M KTIP085R1SCF12M KTIP080R3SCF12M KTIP085R3SCF12M KTIP080R5SCF12M KTIP085R5SCF12M KTIP080R8SCF12M KTIP085R8SCF12M 8,000 8,500 .3150 .3346 8,499 8,999 .3346 .3543 170.306 170.306 KTIP090R1SCF12M KTIP095R1SCF12M KTIP090R3SCF12M KTIP095R3SCF12M KTIP090R5SCF12M KTIP095R5SCF12M KTIP090R8SCF12M KTIP095R8SCF12M 9,000 9,500 .3543 .3740 9,499 9,999 .3740 .3937 170.306 170.306 KTIP100R1SCF16M KTIP105R1SCF16M KTIP100R3SCF16M KTIP105R3SCF16M KTIP100R5SCF16M KTIP105R5SCF16M KTIP100R8SCF16M KTIP105R8SCF16M 10,000 10,500 .3937 .4134 10,499 10,999 .4133 .4330 170.307 170.307 KTIP110R1SCF16M KTIP115R1SCF16M KTIP110R3SCF16M KTIP115R3SCF16M KTIP110R5SCF16M KTIP115R5SCF16M KTIP110R8SCF16M KTIP115R8SCF16M 11,000 11,500 .4331 .4528 11,499 11,999 .4527 .4724 L M 170.307 170.307 KTIP120R1SCF16M KTIP125R1SCF16M KTIP120R3SCF16M KTIP125R3SCF16M KTIP120R5SCF16M KTIP125R5SCF16M KTIP120R8SCF16M KTIP125R8SCF16M 12,000 12,500 .4724 .4921 12,499 12,999 .4921 .5118 N O 170.308 170.308 KTIP130R1SCF16M KTIP135R1SCF16M KTIP130R3SCF16M KTIP135R3SCF16M KTIP130R5SCF16M KTIP135R5SCF16M KTIP130R8SCF16M KTIP135R8SCF16M 13,000 13,500 .5118 .5315 13,499 13,999 .5315 .5511 P Q 170.308 170.308 KTIP140R1SCF16M KTIP145R1SCF16M KTIP140R3SCF16M KTIP145R3SCF16M KTIP140R5SCF16M KTIP145R5SCF16M KTIP140R8SCF16M KTIP145R8SCF16M 14,000 14,500 .5512 .5709 14,499 14,999 .5708 .5905 170.309 170.309 KTIP150R1SCF20M KTIP160R1SCF20M KTIP150R3SCF20M KTIP160R3SCF20M KTIP150R5SCF20M KTIP160R5SCF20M KTIP150R8SCF20M KTIP160R8SCF20M 15.000 16.000 .5906 .6299 15.999 16.999 .6299 .6693 170.309 170.309 KTIP170R1SCF20M KTIP180R1SCF25M KTIP170R3SCF20M KTIP180R3SCF25M KTIP170R5SCF20M KTIP180R5SCF25M KTIP170R8SCF20M KTIP180R8SCF25M 17.000 18.000 .6693 .7087 17.999 18.999 .7086 .7480 V W 170.314 170.314 KTIP190R1SCF25M KTIP200R1SCF25M KTIP190R3SCF25M KTIP200R3SCF25M KTIP190R5SCF25M KTIP200R5SCF25M KTIP190R8SCF25M KTIP200R8SCF25M 19.000 20.000 .7480 .7874 19.999 20.999 .7874 .8267 170.314 170.314 KTIP210R1SCF25M KTIP220R1SCF25M KTIP210R3SCF25M KTIP220R3SCF25M KTIP210R5SCF25M KTIP220R5SCF25M KTIP210R8SCF25M KTIP220R8SCF25M 21,000 22,000 .8268 .8661 21.999 22.999 .8661 .9055 Z ZA 170.314 170.314 KTIP230R1SCF25M KTIP240R1SCF25M KTIP230R3SCF25M KTIP240R3SCF25M KTIP230R5SCF25M KTIP240R5SCF25M KTIP230R8SCF25M KTIP240R8SCF25M 23.000 24.000 .9055 .9449 23.999 24.999 .9448 .9842 ZB ZC 170.314 170.314 KTIP250R1SCF25M KTIP260R1SCF25M KTIP250R3SCF25M KTIP260R3SCF25M KTIP250R5SCF25M KTIP260R5SCF25M KTIP250R8SCF25M KTIP260R8SCF25M 25.000 26.000 .9843 1.0236 25.999 26.999 1.0236 1.0630 ZD ZE 170.314 170.314 KTIP270R1SCF25M KTIP270R3SCF25M KTIP270R5SCF25M KTIP270R8SCF25M 27,000 1.0630 27,999 1.1023 ZE 170.314 мм H32 Kennametal
