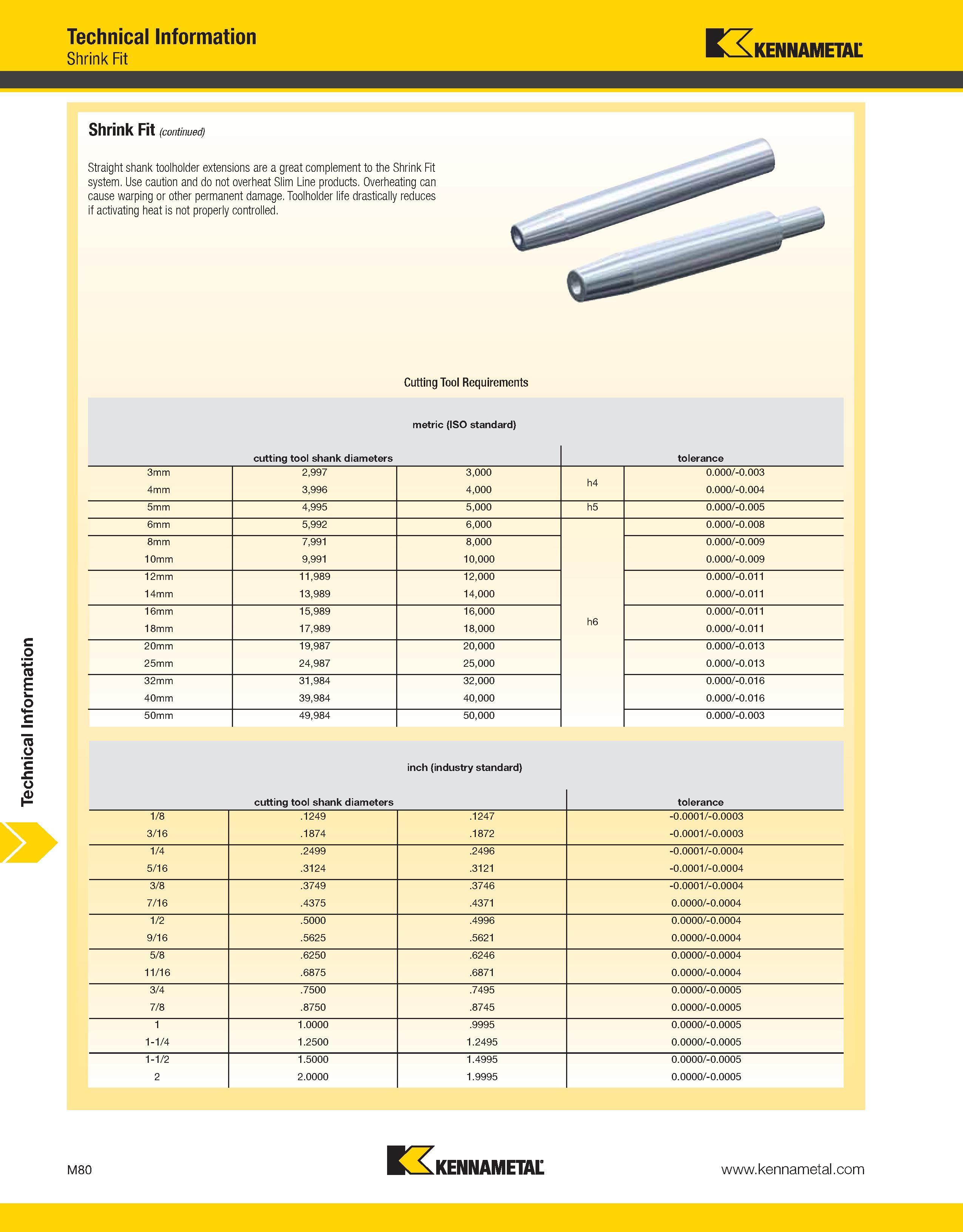

Technical Information Technical Information Shrink Fit Kennametal Shrink Fit (continued) Straight shank toolholder extensions are a great complement to the Shrink Fit system. Use caution and do not overheat Slim Line products. Overheating can cause warping or other permanent damage. Toolholder life drastically reduces if activating heat is not properly controlled. Cutting Tool Requirements metric (ISO standard) cutting tool shank diameters tolerance 3mm 2,997 3,000 0.000/-0.003 4mm 3,996 4,000 h4 0.000/-0.004 5mm 4,995 5,000 h5 0.000/-0.005 6mm 5,992 6,000 0.000/-0.008 8mm 7,991 8,000 0.000/-0.009 10mm 9,991 10,000 0.000/-0.009 12mm 11,989 12,000 0.000/-0.011 14mm 13,989 14,000 0.000/-0.011 16mm 15,989 16,000 0.000/-0.011 18mm 17,989 18,000 h6 0.000/-0.011 20mm 19,987 20,000 0.000/-0.013 25mm 24,987 25,000 0.000/-0.013 32mm 31,984 32,000 0.000/-0.016 40mm 39,984 40,000 0.000/-0.016 50mm 49,984 50,000 0.000/-0.003 inch (industry standard) cutting tool shank diameters tolerance 1/8 .1249 .1247 -0.0001/-0.0003 3/16 .1874 .1872 -0.0001/-0.0003 1/4 .2499 .2496 -0.0001/-0.0004 5/16 .3124 .3121 -0.0001/-0.0004 3/8 .3749 .3746 -0.0001/-0.0004 7/16 .4375 .4371 0.0000/-0.0004 1/2 .5000 .4996 0.0000/-0.0004 9/16 .5625 .5621 0.0000/-0.0004 5/8 .6250 .6246 0.0000/-0.0004 11/16 .6875 .6871 0.0000/-0.0004 3/4 .7500 .7495 0.0000/-0.0005 7/8 .8750 .8745 0.0000/-0.0005 1 1.0000 .9995 0.0000/-0.0005 1-1/4 1.2500 1.2495 0.0000/-0.0005 1-1/2 1.5000 1.4995 0.0000/-0.0005 2 2.0000 1.9995 0.0000/-0.0005 M80 Kennametal
