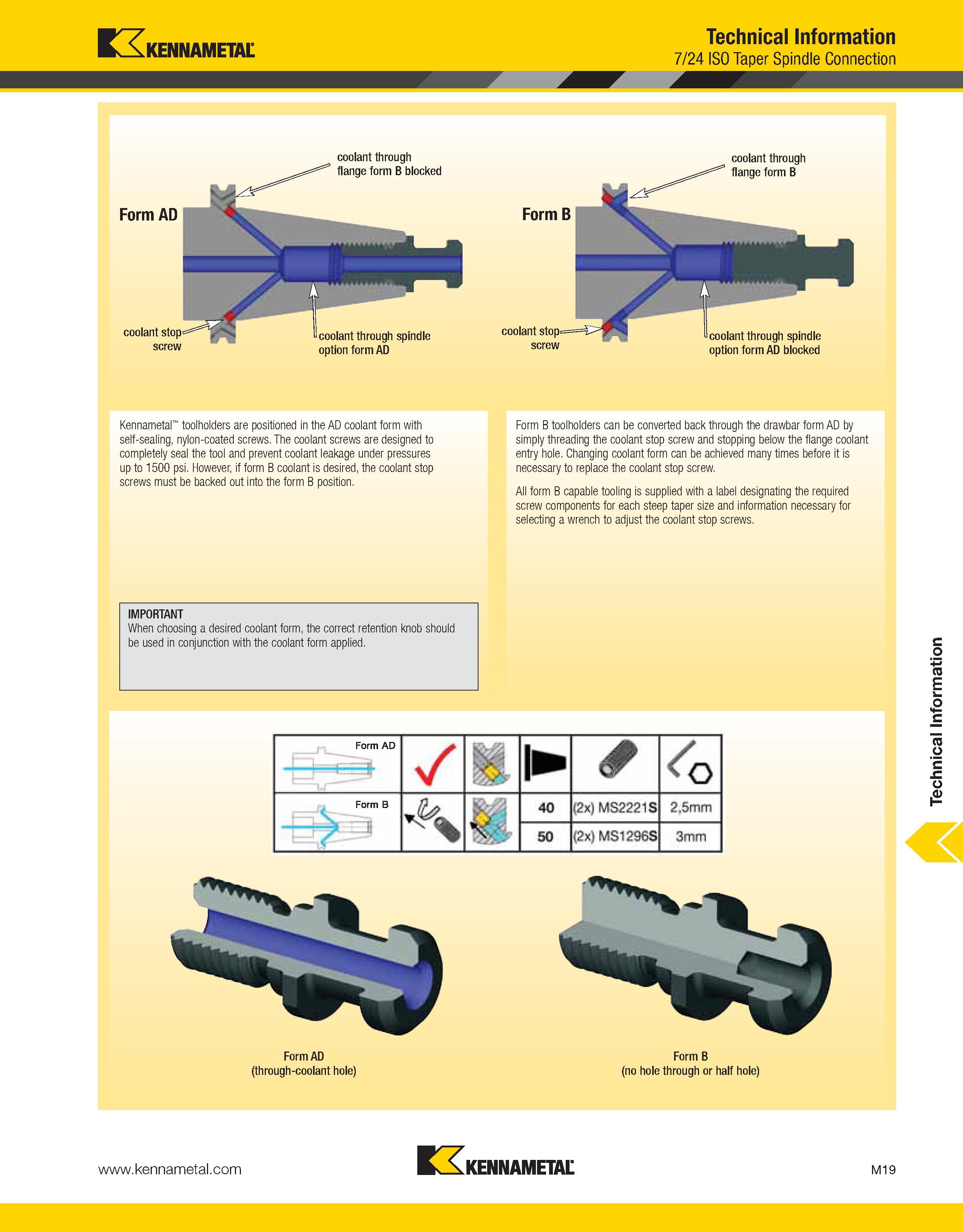

Kennametal Technical Information 7/24 ISO Taper Spindle Connection coolant through flange form B blocked Form AD coolant stop screw coolant through spindle option form AD coolant through flange form B Form B coolant stop screw coolant through spindle option form AD blocked Kennametal toolholders are positioned in the AD coolant form with self-sealing, nylon-coated screws. The coolant screws are designed to completely seal the tool and prevent coolant leakage under pressures up to 1500 psi. However, if form B coolant is desired, the coolant stop screws must be backed out into the form B position. Form B toolholders can be converted back through the drawbar form AD by simply threading the coolant stop screw and stopping below the flange coolant entry hole. Changing coolant form can be achieved many times before it is necessary to replace the coolant stop screw. All form B capable tooling is supplied with a label designating the required screw components for each steep taper size and information necessary for selecting a wrench to adjust the coolant stop screws. IMPORTANT When choosing a desired coolant form, the correct retention knob should be used in conjunction with the coolant form applied. Form AD (through-coolant hole) Form B (no hole through or half hole) Wh KENNAMETAL M19 Technical Information
