1501 Каталог KENNAMETAL 2013 Инструментальная оснастка для металлорежущих станков Стр.M101

Каталог KENNAMETAL 2013 Инструментальная оснастка Стр. M101 1501 Lab2u

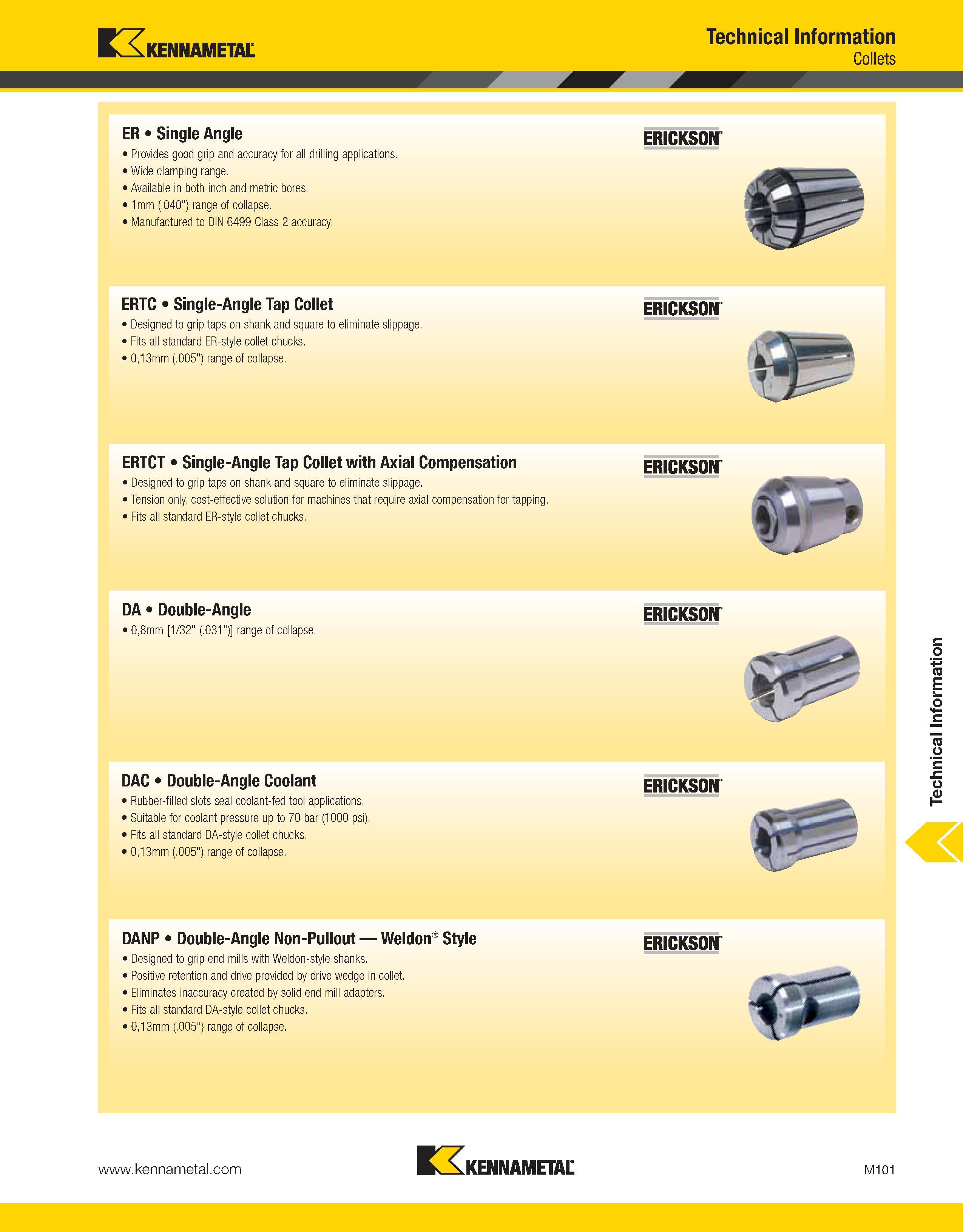

Kennametal Technical Information Collets ER Single Angle Provides good grip and accuracy for all drilling applications. Wide clamping range. Available in both inch and metric bores. 1mm (.040") range of collapse. Manufactured to DIN 6499 Class 2 accuracy. ERICKSON ERTC Single-Angle Tap Collet Designed to grip taps on shank and square to eliminate slippage. Fits all standard ER-style collet chucks. 0,13mm (.005") range of collapse. ERICKSON DAC Double-Angle Coolant Rubber-filled slots seal coolant-fed tool applications. Suitable for coolant pressure up to 70 bar (1000 psi). Fits all standard DA-style collet chucks. 0,13mm (.005") range of collapse. ERICKSON DANP Double-Angle Non-Pullout Weldon Style Designed to grip end mills with Weldon-style shanks. Positive retention and drive provided by drive wedge in collet. Eliminates inaccuracy created by solid end mill adapters. Fits all standard DA-style collet chucks. 0,13mm (.005") range of collapse. ERICKSON Kennametal M101 Technical Information
