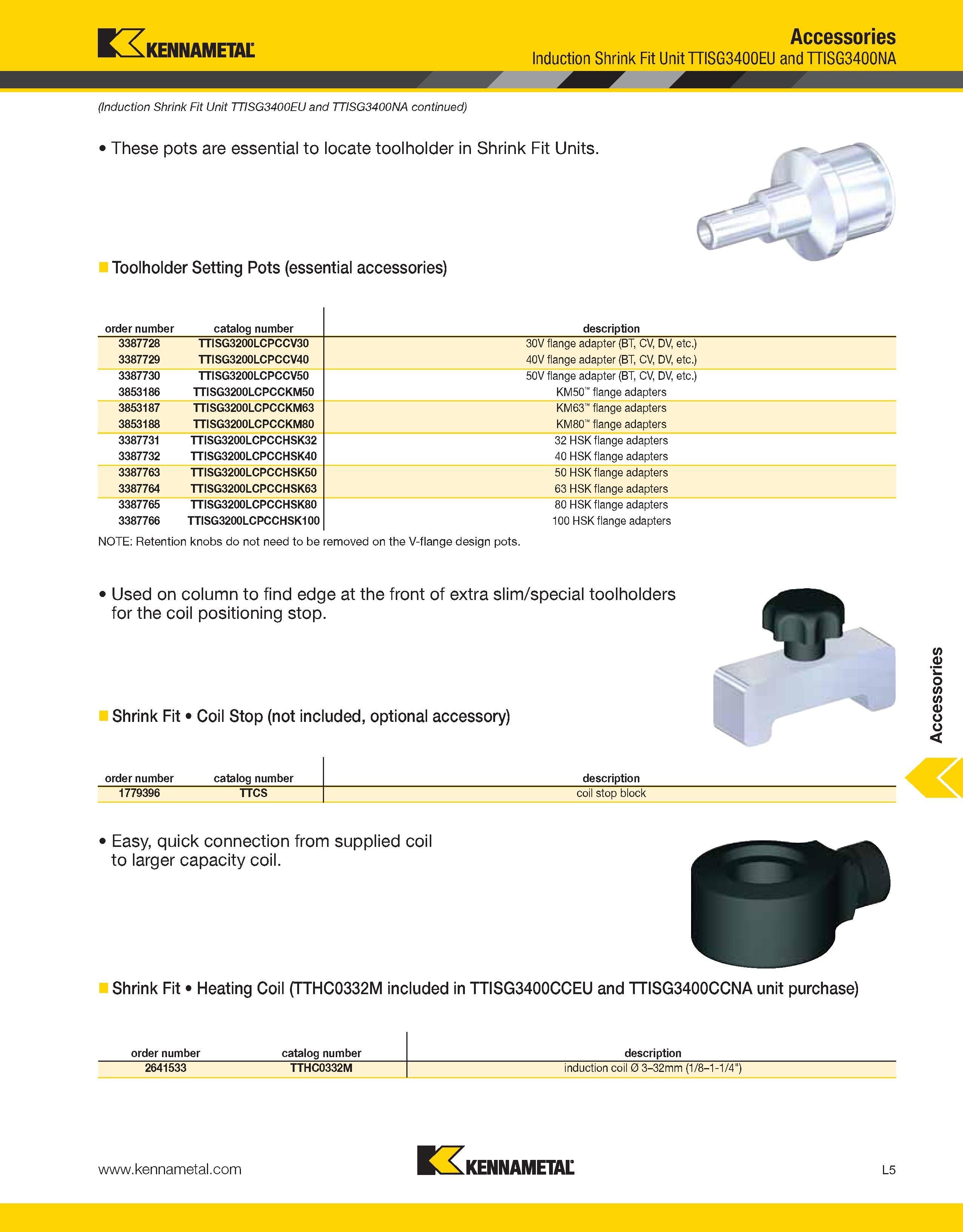

Kennametal Accessories Induction Shrink Fit Unit TTISG3400EU and TTISG3400NA (Induction Shrink Fit Unit TTISG3400EU and TTISG3400NA continued) These pots are essential to locate toolholder in Shrink Fit Units. Toolholder Setting Pots (essential accessories) order number catalog number description 3387728 TTISG3200LCPCCV30 30V flange adapter (BT, CV, DV, etc.) 3387729 TTISG3200LCPCCV40 40V flange adapter (BT, CV, DV, etc.) 3387730 TTISG3200LCPCCV50 50V flange adapter (BT, CV, DV, etc.) 3853186 TTISG3200LCPCCKM50 KM50 flange adapters 3853187 TTISG3200LCPCCKM63 KM63 flange adapters 3853188 TTISG3200LCPCCKM80 KM80 flange adapters 3387731 TTISG3200LCPCCHSK32 32 HSK flange adapters 3387732 TTISG3200LCPCCHSK40 40 HSK flange adapters 3387763 TTISG3200LCPCCHSK50 50 HSK flange adapters 3387764 TTISG3200LCPCCHSK63 63 HSK flange adapters 3387765 TTISG3200LCPCCHSK80 80 HSK flange adapters 3387766 TTISG3200LCPCCHSK100 100 HSK flange adapters NOTE: Retention knobs do not need to be removed on the V-flange design pots. Used on column to find edge at the front of extra slim/special toolholders for the coil positioning stop. Shrink Fit Coil Stop (not included, optional accessory) order number catalog number description 1779396 TTCS coil stop block Easy, quick connection from supplied coil to larger capacity coil. Shrink Fit Heating Coil (TTHC0332M included in TTISG3400CCEU and TTISG3400CCNA unit purchase) order number catalog number description 2641533 TTHC0332M induction coil 0 3-32mm (1/8-1-1/4") Kennametal L5 Accessories
