1365 Каталог KENNAMETAL 2013 Инструментальная оснастка для металлорежущих станков Стр.L25

Каталог KENNAMETAL 2013 Инструментальная оснастка Стр. L25 1365 Lab2u

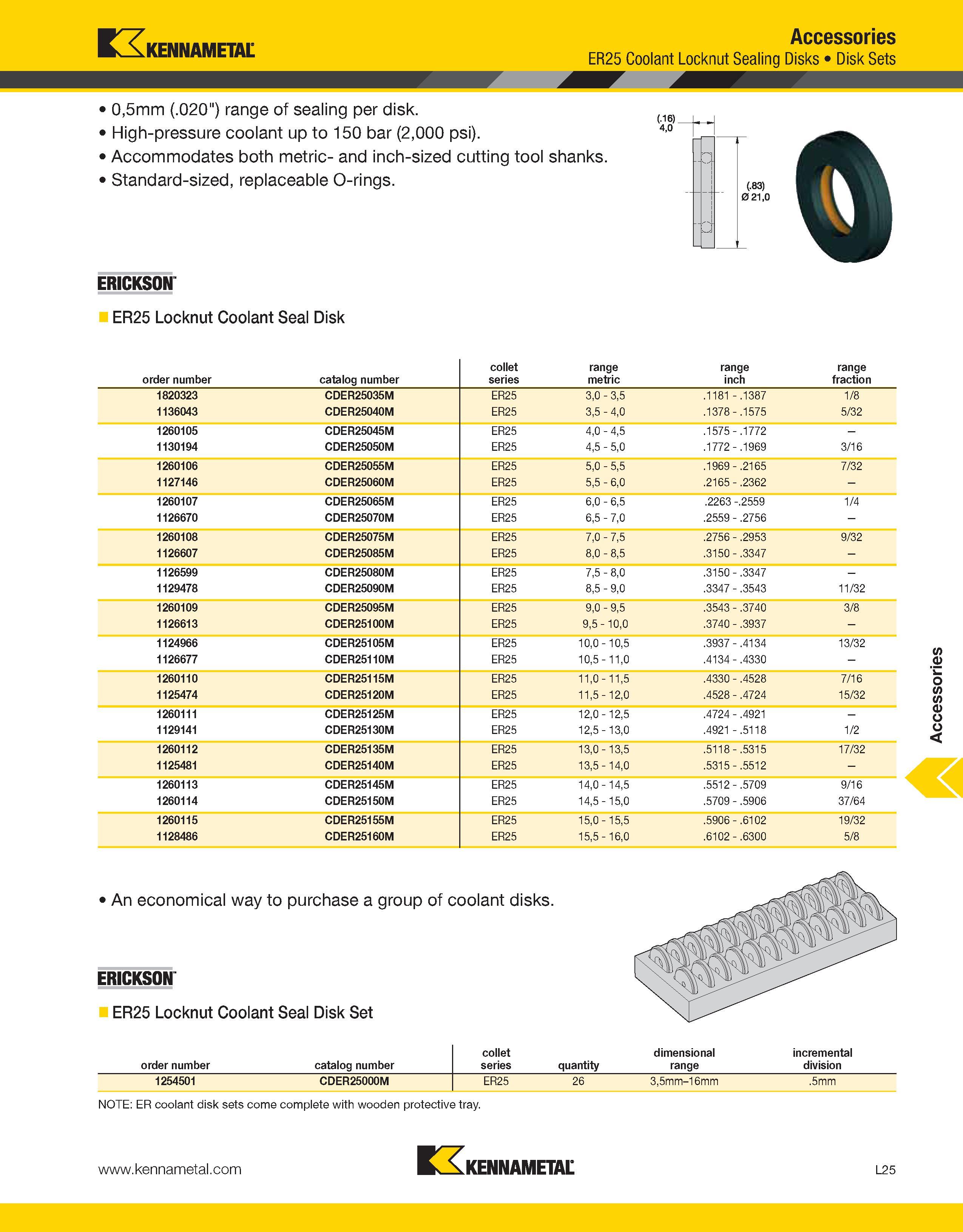

Kennametal Accessories ER25 Coolant Locknut Sealing Disks Disk Sets 0,5mm (.020") range of sealing per disk. High-pressure coolant up to 150 bar (2,000 psi). Accommodates both metric- and inch-sized cutting tool shanks. Standard-sized, replaceable O-rings. ERICKSON ER25 Locknut Coolant Seal Disk (-16) 4,0 (.83) 0 21,0 order number catalog number collet series range metric range inch range fraction 1820323 CDER25035M ER25 3,0 - 3,5 .1181 - .1387 1/8 1136043 CDER25040M ER25 3,5 - 4,0 .1378 - .1575 5/32 1260105 CDER25045M ER25 4,0 - 4,5 .1575 - .1772 - 1130194 CDER25050M ER25 4,5 - 5,0 .1772 - .1969 3/16 1260106 CDER25055M ER25 5,0 - 5,5 .1969 - .2165 7/32 1127146 CDER25060M ER25 5,5 - 6,0 .2165 - .2362 - 1260107 CDER25065M ER25 6,0 - 6,5 .2263 -.2559 1/4 1126670 CDER25070M ER25 6,5 - 7,0 .2559 - .2756 - 1260108 CDER25075M ER25 7,0 - 7,5 .2756 - .2953 9/32 1126607 CDER25085M ER25 8,0 - 8,5 .3150 - .3347 - 1126599 CDER25080M ER25 7,5 - 8,0 .3150 - .3347 - 1129478 CDER25090M ER25 8,5 - 9,0 .3347 - .3543 11/32 1260109 CDER25095M ER25 9,0 - 9,5 .3543 - .3740 3/8 1126613 CDER25100M ER25 9,5 - 10,0 .3740 - .3937 - 1124966 CDER25105M ER25 10,0 - 10,5 .3937 - .4134 13/32 1126677 CDER25110M ER25 10,5 - 11,0 .4134 - .4330 - 1260110 CDER25115M ER25 11,0 - 11,5 .4330 - .4528 7/16 1125474 CDER25120M ER25 11,5 - 12,0 .4528 - .4724 15/32 1260111 CDER25125M ER25 12,0 - 12,5 .4724 - .4921 - 1129141 CDER25130M ER25 12,5 - 13,0 .4921 - .5118 1/2 1260112 CDER25135M ER25 13,0 - 13,5 .5118 - .5315 17/32 1125481 CDER25140M ER25 13,5 - 14,0 .5315 - .5512 - 1260113 CDER25145M ER25 14,0 - 14,5 .5512 - .5709 9/16 1260114 CDER25150M ER25 14,5 - 15,0 .5709 - .5906 37/64 1260115 CDER25155M ER25 15,0 - 15,5 .5906 - .6102 19/32 1128486 CDER25160M ER25 15,5 - 16,0 .6102 - .6300 5/8 An economical way to purchase a group of coolant disks. ERICKSON ER25 Locknut Coolant Seal Disk Set collet dimensional incremental order number catalog number series quantity range division 1254501 CDER25000M ER25 26 3,5mm-16mm .5mm NOTE: ER coolant disk sets come complete with wooden protective tray. Wh KENNAMETAL L25 Accessories
