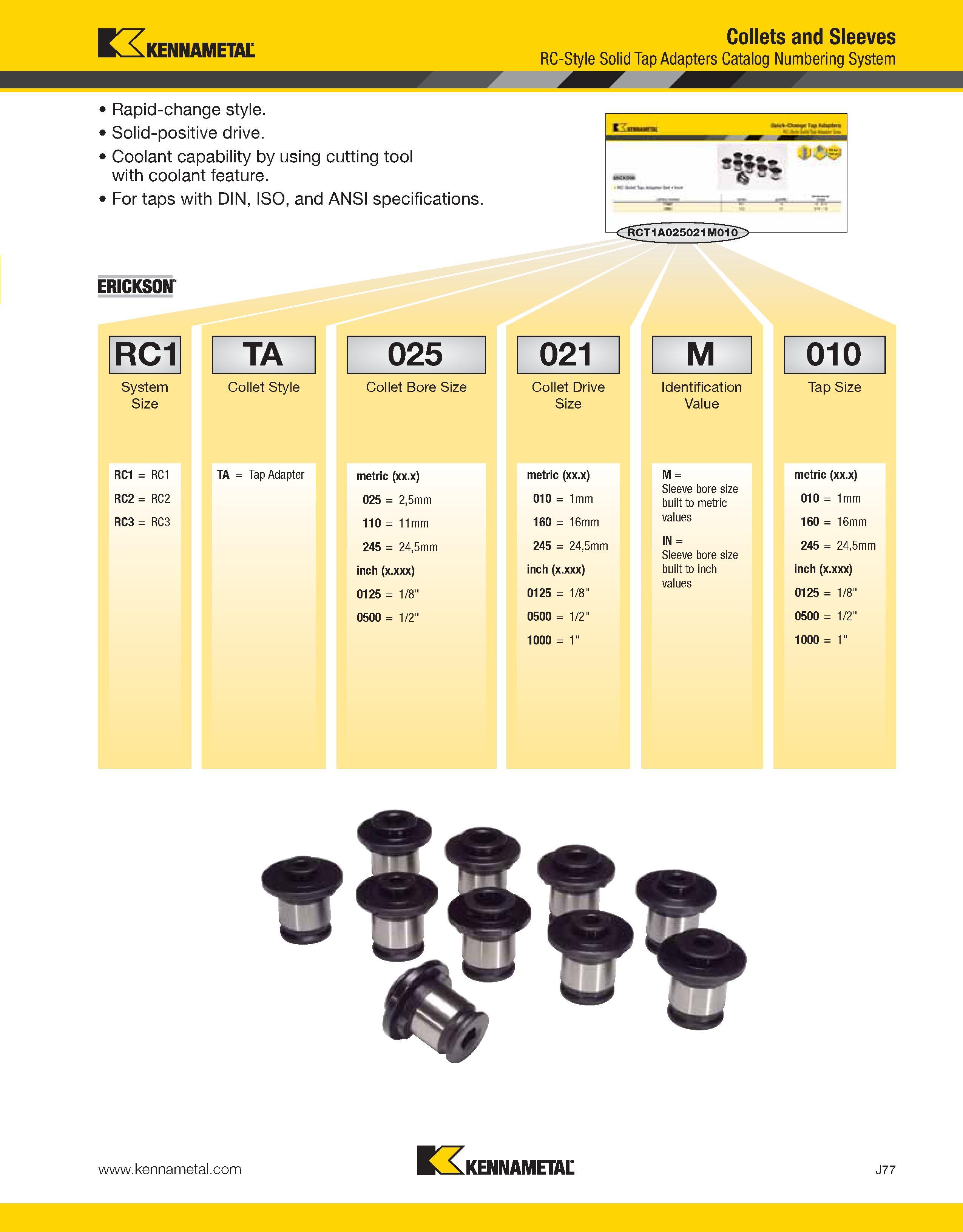

Kennametal Rapid-change style. Solid-positive drive. Coolant capability by using cutting tool with coolant feature. For taps with DIN, ISO, and ANSI specifications. Collets and Sleeves RC-Style Solid Tap Adapters Catalog Numbering System ERICKSON RC1 TA System Size Collet Style 025 Collet Bore Size 021 Collet Drive Size M Identification Value 010 Tap Size RC1 = RC1 RC2 = RC2 RC3 = RC3 TA = Tap Adapter metric (xx.x) 025 = 2,5mm 110 = 11mm 245 = 24,5mm inch (x.xxx) 0125 = 1/8" 0500 = 1/2" metric (xx.x) 010 = 1mm 160 = 16mm 245 = 24,5mm inch (x.xxx) 0125 = 1/8" 0500 = 1/2" 1000 = 1" M = Sleeve bore size built to metric values IN = Sleeve bore size built to inch values metric (xx.x) 010 = 1mm 160 = 16mm 245 = 24,5mm inch (x.xxx) 0125 = 1/8" 0500 = 1/2" 1000 = 1" Wh KENNAMETAL J77
