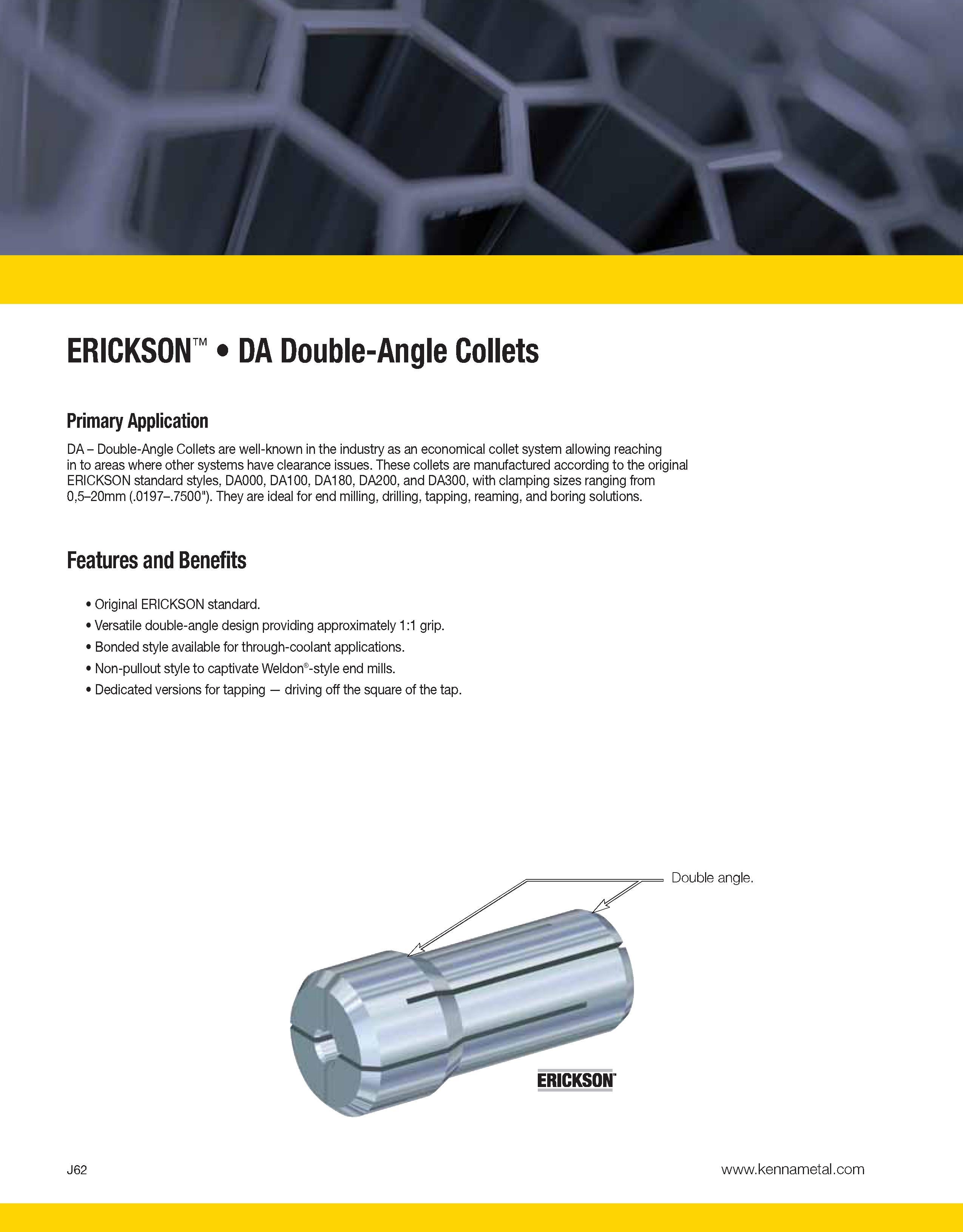

ERICKSON DA Double-Angle Collets Primary Application DA - Double-Angle Collets are well-known in the industry as an economical collet system allowing reaching in to areas where other systems have clearance issues. These collets are manufactured according to the original ERICKSON standard styles, DA000, DA100, DA180, DA200, and DA300, with clamping sizes ranging from 0,5-20mm (.0197-.7500"). They are ideal for end milling, drilling, tapping, reaming, and boring solutions. Features and Benefits Original ERICKSON standard. Versatile double-angle design providing approximately 1:1 grip. Bonded style available for through-coolant applications. Non-pullout style to captivate Weldon -style end mills. Dedicated versions for tapping driving off the square of the tap. Double angle. J62
