1300 Каталог KENNAMETAL 2013 Инструментальная оснастка для металлорежущих станков Стр.J56

Каталог KENNAMETAL 2013 Инструментальная оснастка Стр. J56 1300 Lab2u

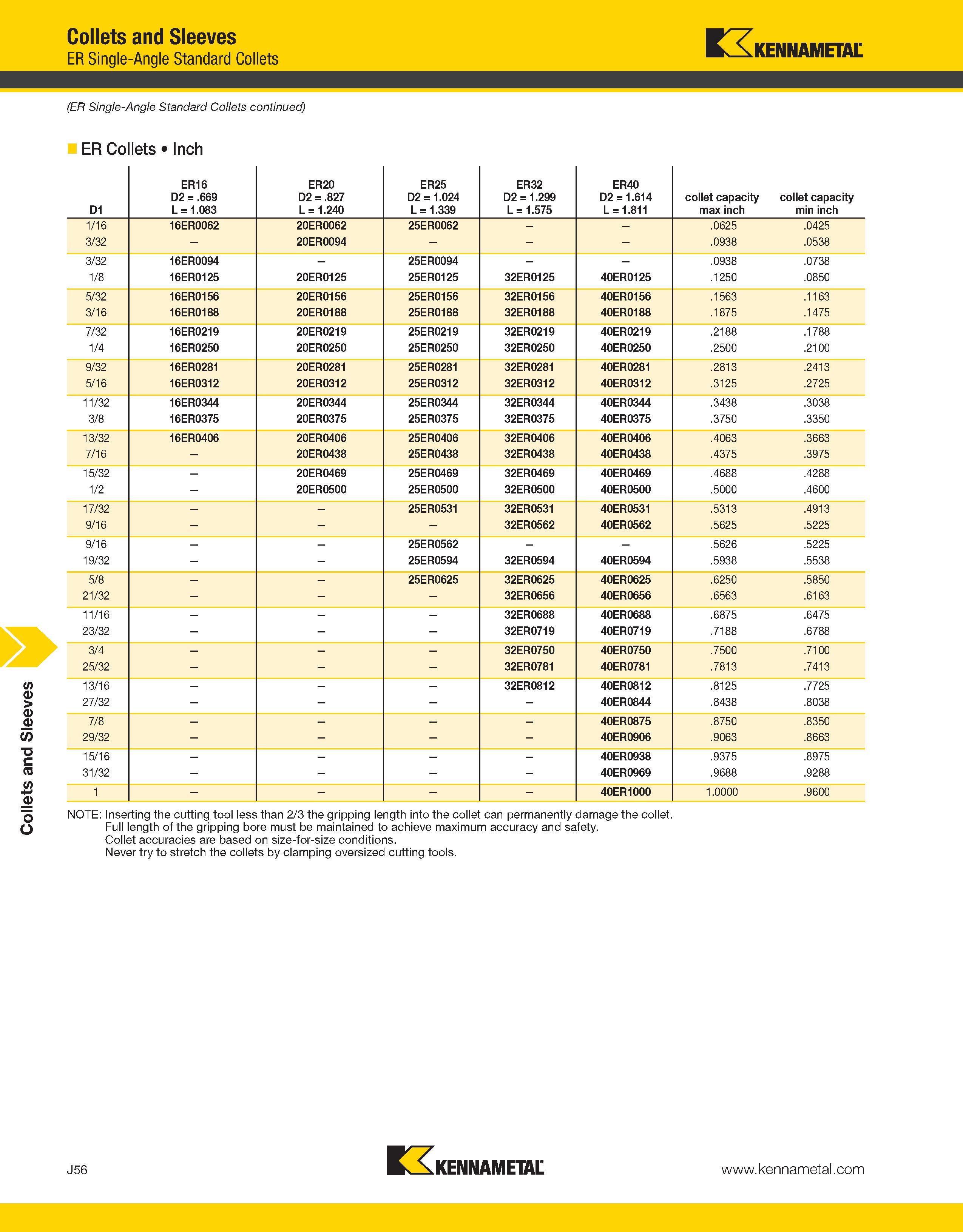

Collets and Sleeves Collets and Sleeves ER Single-Angle Standard Collets Kennametal (ER Single-Angle Standard Collets continued) ER Collets Inch NOTE: Inserting the cutting tool less than 2/3 the gripping length into the collet can permanently damage the collet. Full length of the gripping bore must be maintained to achieve maximum accuracy and safety. Collet accuracies are based on size-for-size conditions. Never try to stretch the collets by clamping oversized cutting tools. J56 Kennametal
