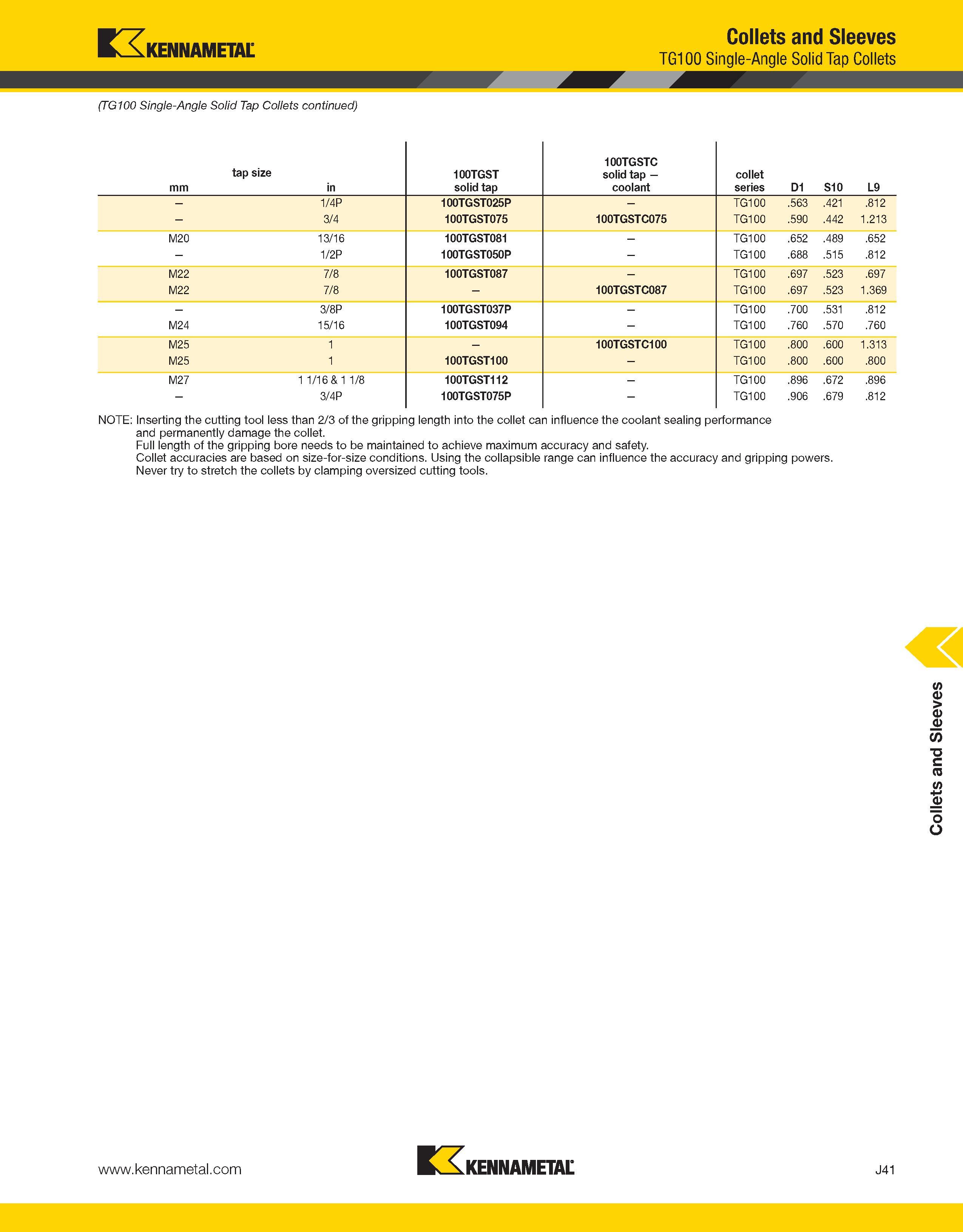

Collets and Sleeves KENNAMETAL TG100 Single-Angle Solid Tap Collets A (TG100 Single-Angle Solid Tap Collets continued) mm tap size in 100TGST solid tap 100TGSTC solid tap -coolant collet series D1 S10 L9 - 1/4P 100TGST025P - TG100 .563 .421 .812 - 3/4 100TGST075 100TGSTC075 TG100 .590 .442 1.213 M20 13/16 100TGST081 - TG100 .652 .489 .652 - 1/2P 100TGST050P - TG100 .688 .515 .812 M22 7/8 100TGST087 - TG100 .697 .523 .697 M22 7/8 - 100TGSTC087 TG100 .697 .523 1.369 - 3/8P 100TGST037P - TG100 .700 .531 .812 M24 15/16 100TGST094 - TG100 .760 .570 .760 M25 1 - 100TGSTC100 TG100 .800 .600 1.313 M25 1 100TGST100 - TG100 .800 .600 .800 M27 1 1/16 & 1 1/8 100TGST112 - TG100 .896 .672 .896 - 3/4P 100TGST075P - TG100 .906 .679 .812 NOTE: Inserting the cutting tool less than 2/3 of the gripping length into the collet can influence the coolant sealing performance and permanently damage the collet. Full length of the gripping bore needs to be maintained to achieve maximum accuracy and safety. Collet accuracies are based on size-for-size conditions. Using the collapsible range can influence the accuracy and gripping powers. Never try to stretch the collets by clamping oversized cutting tools. Kennametal J41 Collets and Sleeves
