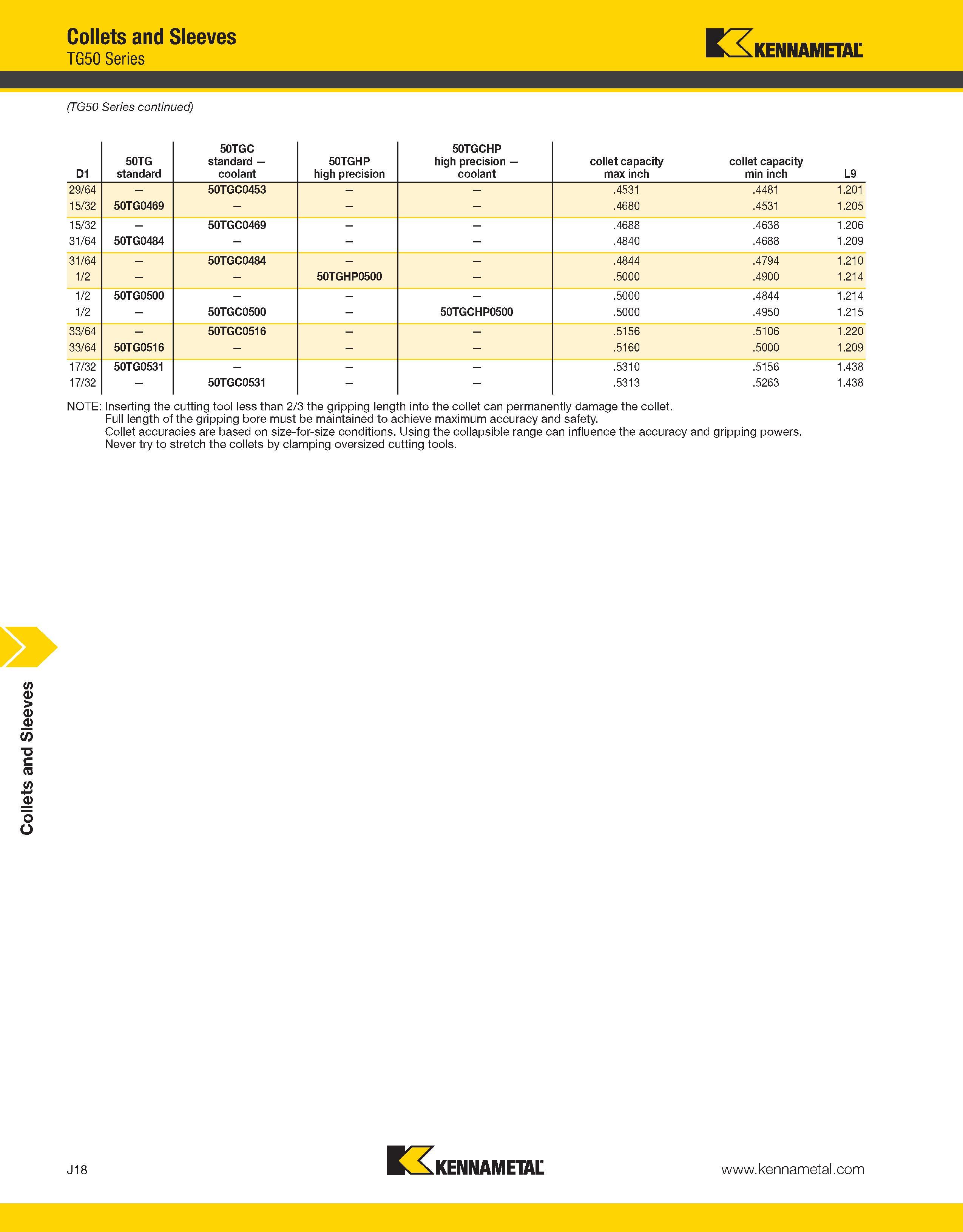

Collets and Sleeves Collets and Sleeves TG50 Series Kennametal (TG50 Series continued) D1 50TG standard 50TGC standard -coolant 50TGHP high precision 50TGCHP high precision -coolant collet capacity max inch collet capacity min inch L9 29/64 - 50TGC0453 - - .4531 .4481 1.201 15/32 50TG0469 - - - .4680 .4531 1.205 15/32 - 50TGC0469 - - .4688 .4638 1.206 31/64 50TG0484 - - - .4840 .4688 1.209 31/64 - 50TGC0484 - - .4844 .4794 1.210 1/2 - - 50TGHP0500 - .5000 .4900 1.214 1/2 50TG0500 - - - .5000 .4844 1.214 1/2 - 50TGC0500 - 50TGCHP0500 .5000 .4950 1.215 33/64 - 50TGC0516 - - .5156 .5106 1.220 33/64 50TG0516 - - - .5160 .5000 1.209 17/32 50TG0531 - - - .5310 .5156 1.438 17/32 - 50TGC0531 - - .5313 .5263 1.438 NOTE: Inserting the cutting tool less than 2/3 the gripping length into the collet can permanently damage the collet. Full length of the gripping bore must be maintained to achieve maximum accuracy and safety. Collet accuracies are based on size-for-size conditions. Using the collapsible range can influence the accuracy and gripping powers. Never try to stretch the collets by clamping oversized cutting tools. J18 Kennametal
