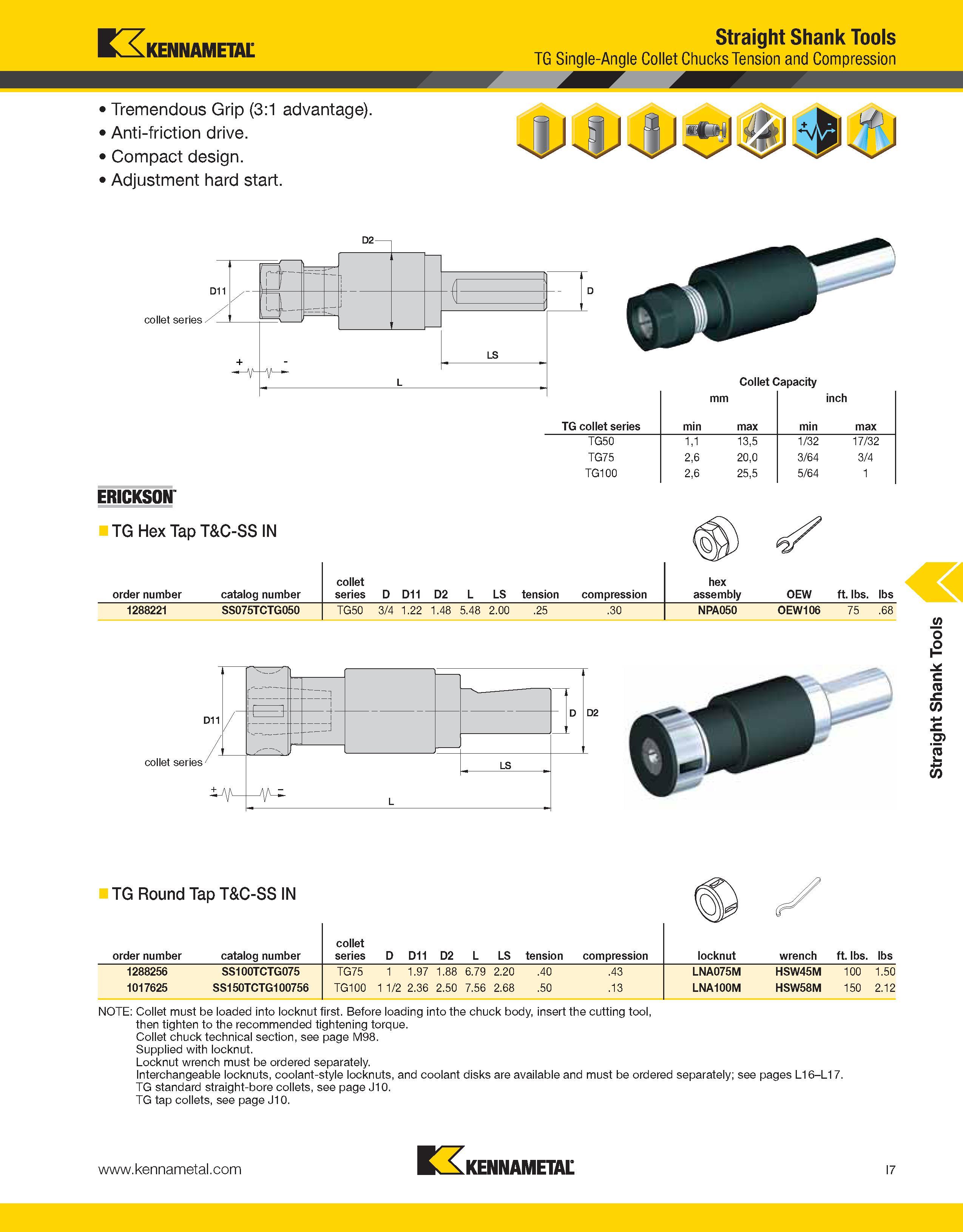

Kennametal Straight Shank Tools TG Single-Angle Collet Chucks Tension and Compression Tremendous Grip (3:1 advantage). Anti-friction drive. Compact design. Adjustment hard start. D2 r D11 collet series I M LS ERICKSON TG Hex Tap T&C-SS IN Collet Capacity TG collet series min mm max min inch max TG50 1,1 13,5 1/32 17/32 TG75 2,6 20,0 3/64 3/4 TG100 2,6 25,5 5/64 1 order number catalog number collet series D D11 D2 L LS tension compression hex assembly OEW ft. lbs. lbs 1288221 SS075TCTG050 TG50 3/4 1.22 1.48 5.48 2.00 .25 .30 NPA050 0EW106 75 .68 order number catalog number collet series D D11 D2 L LS tension compression locknut wrench ft. lbs. lbs 1288256 SS100TCTG075 TG75 1 1.97 1.88 6.79 2.20 .40 .43 LNA075M HSW45M 100 1.50 1017625 SS150TCTG100756 TG100 1 1/2 2.36 2.50 7.56 2.68 .50 .13 LNA100M HSW58M 150 2.12 NOTE: Collet must be loaded into locknut first. Before loading into the chuck body, insert the cutting tool, then tighten to the recommended tightening torque. Collet chuck technical section, see page M98. Supplied with locknut. Locknut wrench must be ordered separately. Interchangeable locknuts, coolant-style locknuts, and coolant disks are available and must be ordered separately; see pages L16-L17. TG standard straight-bore collets, see page J10. TG tap collets, see page J10. n, KENNAMETAL I7 Straight Shank Tools
