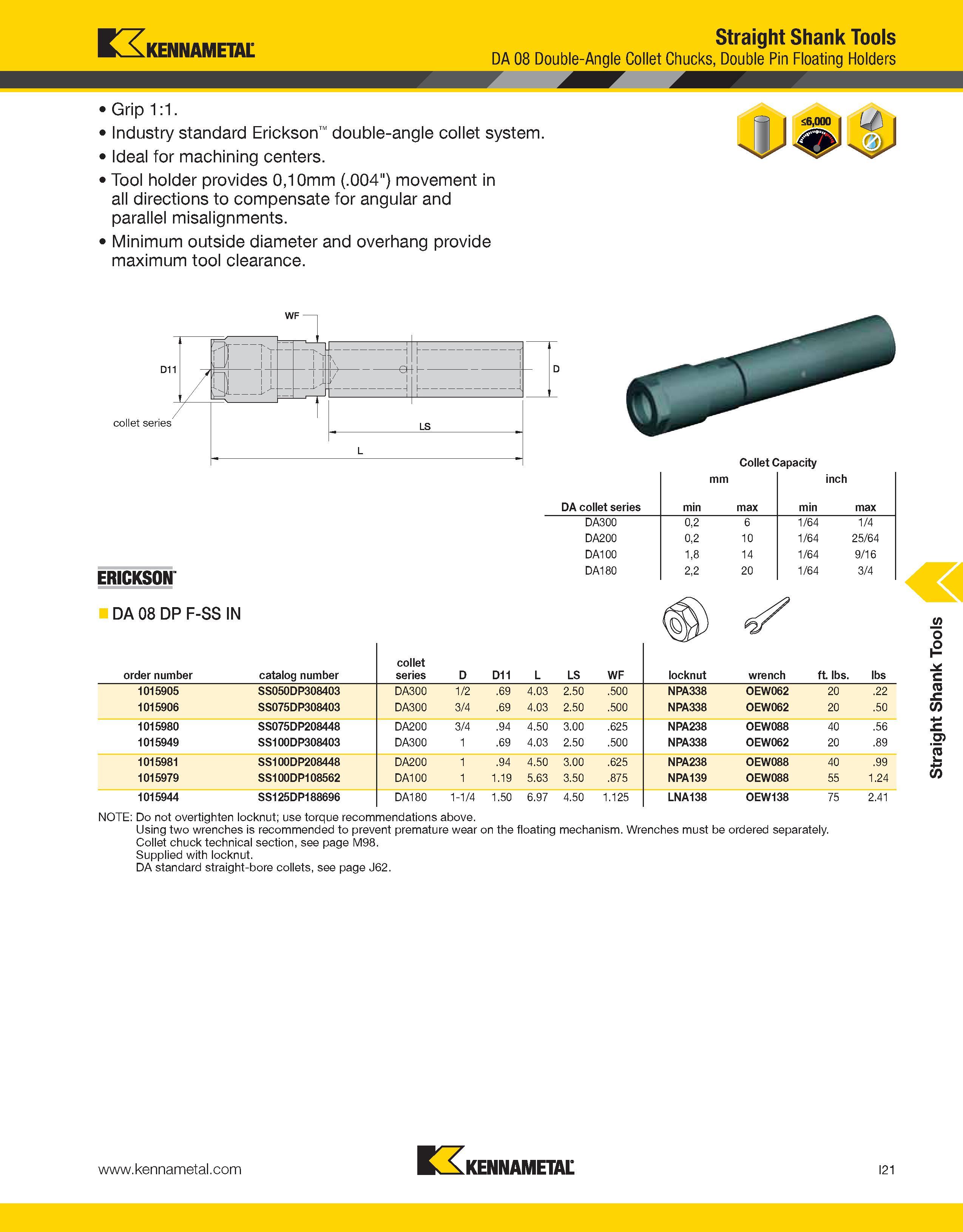

Kennametal Straight Shank Tools DA 08 Double-Angle Collet Chucks, Double Pin Floating Holders Grip 1:1. Industry standard Erickson double-angle collet system. Ideal for machining centers. Tool holder provides 0,10mm (.004") movement in all directions to compensate for angular and parallel misalignments. Minimum outside diameter and overhang provide maximum tool clearance. H collet series I h-11 I -Gr \- 11 I \ I LS ERICKSON DA 08 DP F-SS IN Collet Capacity mm inch DA collet series min max min max DA300 0,2 6 1/64 1/4 DA200 0,2 10 1/64 25/64 DA100 1,8 14 1/64 9/16 DA180 2,2 20 1/64 3/4 order number catalog number collet series D D11 L LS WF locknut wrench ft. lbs. lbs 1015905 SS050DP308403 DA300 1/2 .69 4.03 2.50 .500 NPA338 0EW062 20 .22 1015906 SS075DP308403 DA300 3/4 .69 4.03 2.50 .500 NPA338 0EW062 20 .50 1015980 SS075DP208448 DA200 3/4 .94 4.50 3.00 .625 NPA238 0EW088 40 .56 1015949 SS100DP308403 DA300 1 .69 4.03 2.50 .500 NPA338 0EW062 20 .89 1015981 SS100DP208448 DA200 1 .94 4.50 3.00 .625 NPA238 0EW088 40 .99 1015979 SS100DP108562 DA100 1 1.19 5.63 3.50 .875 NPA139 0EW088 55 1.24 1015944 SS125DP188696 DA180 1-1/4 1.50 6.97 4.50 1.125 LNA138 0EW138 75 2.41 NOTE: Do not overtighten locknut; use torque recommendations above. Using two wrenches is recommended to prevent premature wear on the floating mechanism. Wrenches must be ordered separately. Collet chuck technical section, see page M98. Supplied with locknut. DA standard straight-bore collets, see page J62. Kennametal I21 Straight Shank Tools
