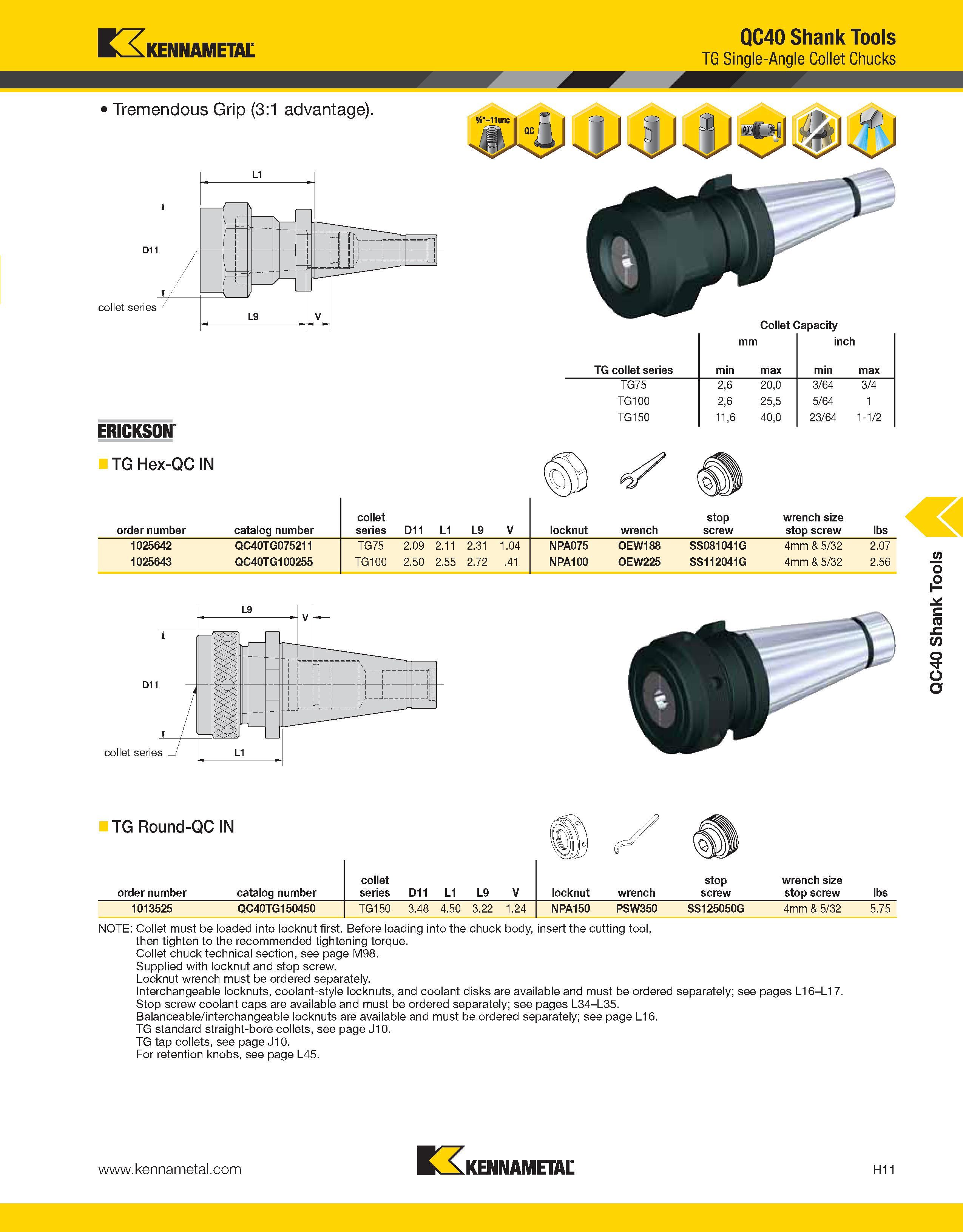

Kennametal QC40 Shank Tools TG Single-Angle Collet Chucks Tremendous Grip (3:1 advantage). %"-11unc Collet Capacity ERICKSON TG collet series min mm max inch min max TG75 2,6 20,0 3/64 3/4 TG100 2,6 25,5 5/64 1 TG150 11,6 40,0 23/64 1-1/2 TG Hex-QC IN order number catalog number collet series D11 L1 L9 V locknut wrench stop screw wrench size stop screw lbs 1025642 QC40TG075211 TG75 2.09 2.11 2.31 1.04 NPA075 OEW188 SS081041G 4mm & 5/32 2.07 1025643 QC40TG100255 TG100 2.50 2.55 2.72 .41 NPA100 OEW225 SS112041G 4mm & 5/32 2.56 TG Round-QC IN order number catalog number collet series D11 L1 L9 V locknut wrench stop screw wrench size stop screw lbs 1013525 QC40TG150450 TG150 3.48 4.50 3.22 1.24 NPA150 PSW350 SS125050G 4mm & 5/32 5.75 NOTE: Collet must be loaded into locknut first. Before loading into the chuck body, insert the cutting tool, then tighten to the recommended tightening torque. Collet chuck technical section, see page M98. Supplied with locknut and stop screw. Locknut wrench must be ordered separately. Interchangeable locknuts, coolant-style locknuts, and coolant disks are available and must be ordered separately; see pages L16-L17. Stop screw coolant caps are available and must be ordered separately; see pages L34-L35. Balanceable/interchangeable locknuts are available and must be ordered separately; see page L16. TG standard straight-bore collets, see page J10. TG tap collets, see page J10. For retention knobs, see page L45. n, KENNAMETAL H11 QC40 Shank Tools
