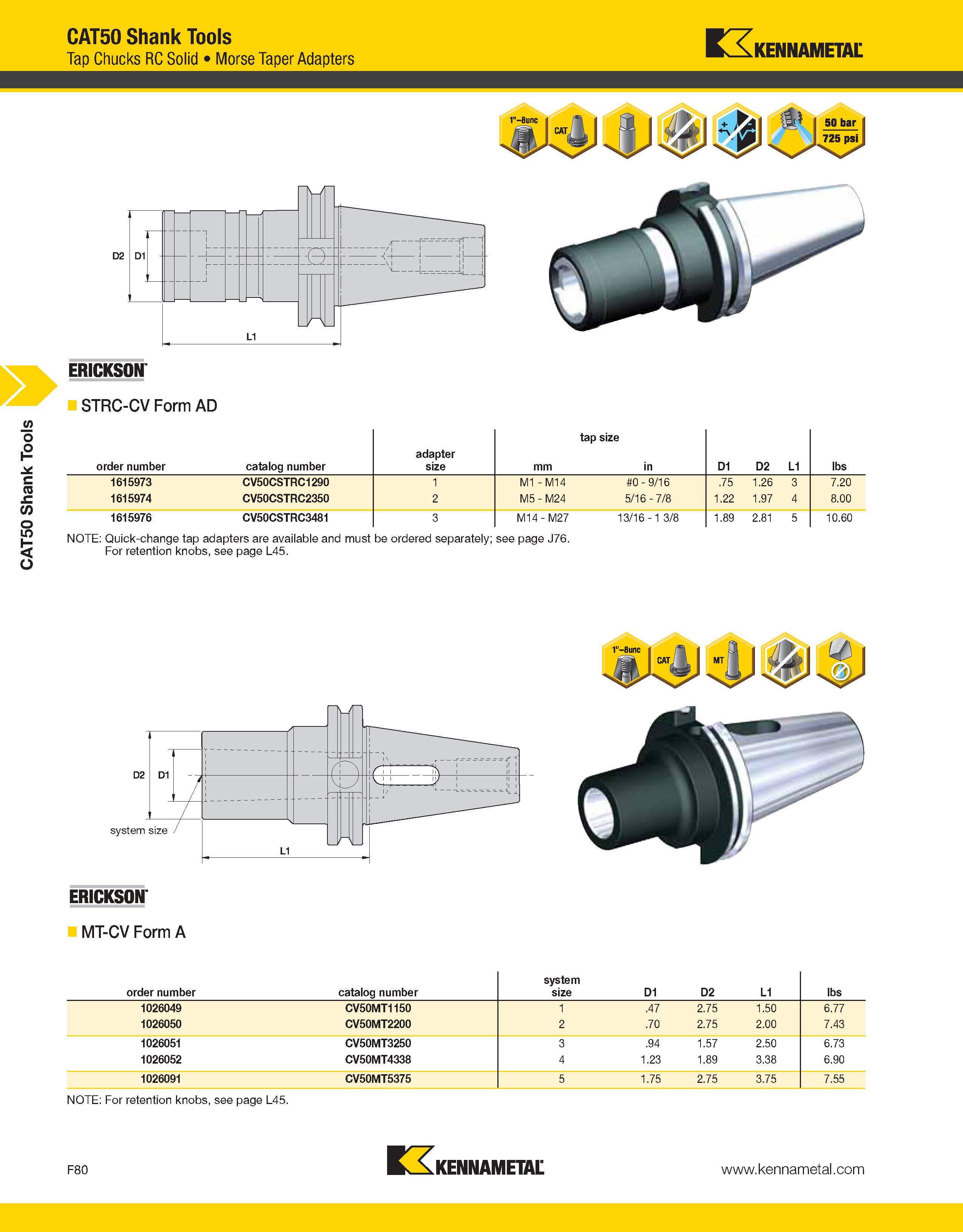

CAT50 Shank Tools CAT50 Shank Tools Tap Chucks RC Solid Morse Taper Adapters Kennametal ERICKSON STRC-CV Form AD order number catalog number adapter size mm tap size in D1 D2 L1 lbs 1615973 CV50CSTRC1290 1 M1 - M14 0 - 9/16 .75 1.26 3 7.20 1615974 CV50CSTRC2350 2 M5 - M24 5/16 - 7/8 1.22 1.97 4 8.00 1615976 CV50CSTRC3481 3 M14 - M27 13/16 - 1 3/8 1.89 2.81 5 10.60 NOTE: Quick-change tap adapters are available and must be ordered separately; see page J76. For retention knobs, see page L45. ERICKSON MT-CV Form A order number catalog number system size D1 D2 L1 lbs 1026049 CV50MT1150 1 .47 2.75 1.50 6.77 1026050 CV50MT2200 2 .70 2.75 2.00 7.43 1026051 CV50MT3250 3 .94 1.57 2.50 6.73 1026052 CV50MT4338 4 1.23 1.89 3.38 6.90 1026091 CV50MT5375 5 1.75 2.75 3.75 7.55 NOTE: For retention knobs, see page L45. F80 n, KENNAMETAL
