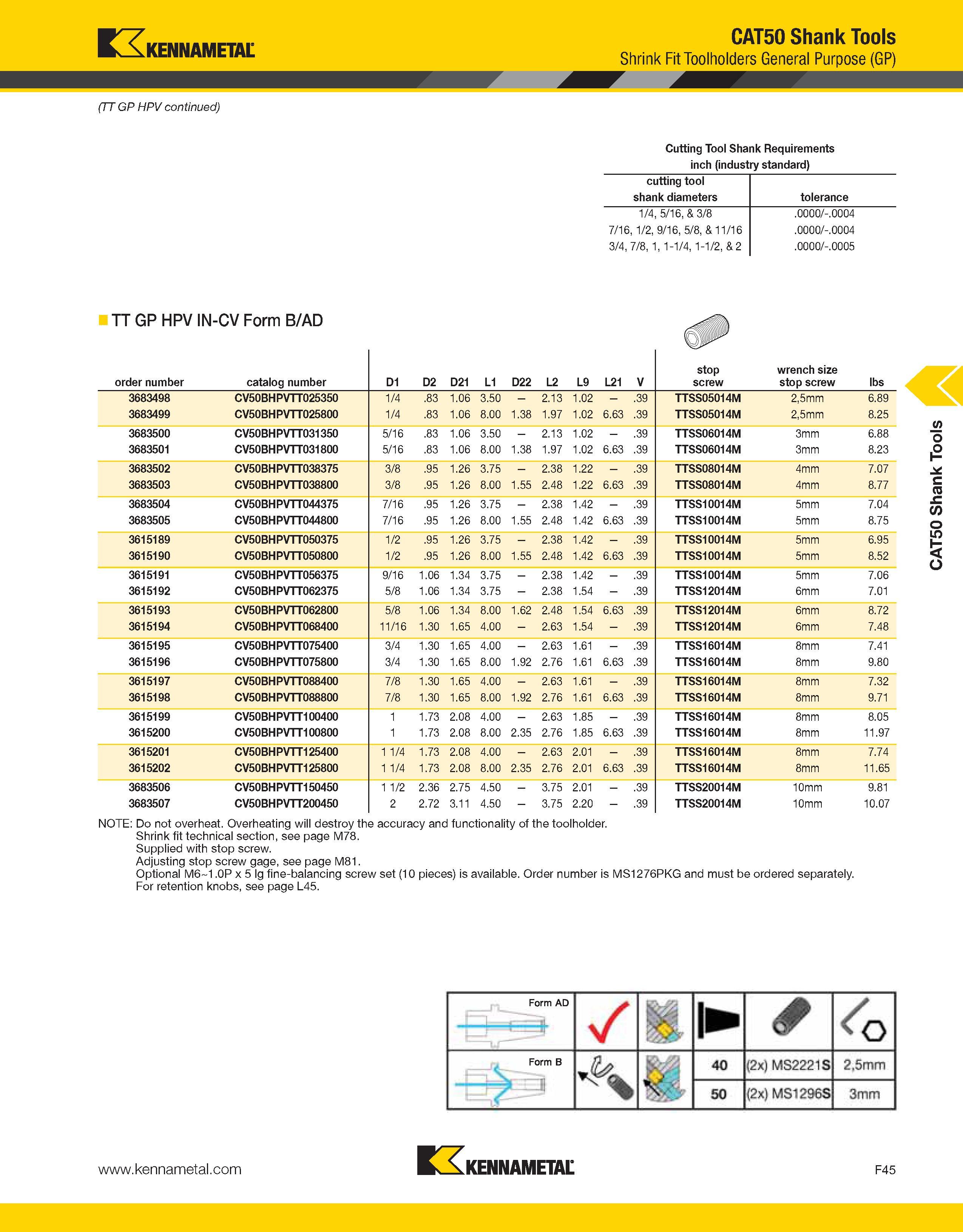

1071 Каталог KENNAMETAL 2013 Инструментальная оснастка для металлорежущих станков Стр.F45

Каталог KENNAMETAL 2013 Инструментальная оснастка Стр. F45 1071 Lab2u

irENNAMETAr CAT50 Shank Tools ivtNNAlVlt IAL Shrink Fit Toolholders General Purpose (GP) A (TT GP HPV continued) Cutting Tool Shank Requirements inch (industry standard) cutting tool shank diameters tolerance 1/4, 5/16, & 3/8 .0000/-.0004 7/16, 1/2, 9/16, 5/8, & 11/16 .0000/-.0004 3/4, 7/8, 1, 1-1/4, 1-1/2, & 2 .0000/-.0005 TT GP HPV IN-CV Form B/AD order number catalog number D1 D2 D21 L1 D22 L2 L9 L21 V stop screw wrench size stop screw lbs 3683498 CV50BHPVTT025350 1/4 .83 1.06 3.50 - 2.13 1.02 - .39 TTSS05014M 2,5mm 6.89 3683499 CV50BHPVTT025800 1/4 .83 1.06 8.00 1.38 1.97 1.02 6.63 .39 TTSS05014M 2,5mm 8.25 3683500 CV50BHPVTT031350 5/16 .83 1.06 3.50 - 2.13 1.02 - .39 TTSS06014M 3mm 6.88 3683501 CV50BHPVTT031800 5/16 .83 1.06 8.00 1.38 1.97 1.02 6.63 .39 TTSS06014M 3mm 8.23 3683502 CV50BHPVTT038375 3/8 .95 1.26 3.75 - 2.38 1.22 - .39 TTSS08014M 4mm 7.07 3683503 CV50BHPVTT038800 3/8 .95 1.26 8.00 1.55 2.48 1.22 6.63 .39 TTSS08014M 4mm 8.77 3683504 CV50BHPVTT044375 7/16 .95 1.26 3.75 - 2.38 1.42 - .39 TTSS10014M 5mm 7.04 3683505 CV50BHPVTT044800 7/16 .95 1.26 8.00 1.55 2.48 1.42 6.63 .39 TTSS10014M 5mm 8.75 3615189 CV50BHPVTT050375 1/2 .95 1.26 3.75 - 2.38 1.42 - .39 TTSS10014M 5mm 6.95 3615190 CV50BHPVTT050800 1/2 .95 1.26 8.00 1.55 2.48 1.42 6.63 .39 TTSS10014M 5mm 8.52 3615191 CV50BHPVTT056375 9/16 1.06 1.34 3.75 - 2.38 1.42 - .39 TTSS10014M 5mm 7.06 3615192 CV50BHPVTT062375 5/8 1.06 1.34 3.75 - 2.38 1.54 - .39 TTSS12014M 6mm 7.01 3615193 CV50BHPVTT062800 5/8 1.06 1.34 8.00 1.62 2.48 1.54 6.63 .39 TTSS12014M 6mm 8.72 3615194 CV50BHPVTT068400 11/16 1.30 1.65 4.00 - 2.63 1.54 - .39 TTSS12014M 6mm 7.48 3615195 CV50BHPVTT075400 3/4 1.30 1.65 4.00 - 2.63 1.61 - .39 TTSS16014M 8mm 7.41 3615196 CV50BHPVTT075800 3/4 1.30 1.65 8.00 1.92 2.76 1.61 6.63 .39 TTSS16014M 8mm 9.80 3615197 CV50BHPVTT088400 7/8 1.30 1.65 4.00 - 2.63 1.61 - .39 TTSS16014M 8mm 7.32 3615198 CV50BHPVTT088800 7/8 1.30 1.65 8.00 1.92 2.76 1.61 6.63 .39 TTSS16014M 8mm 9.71 3615199 CV50BHPVTT100400 1 1.73 2.08 4.00 - 2.63 1.85 - .39 TTSS16014M 8mm 8.05 3615200 CV50BHPVTT100800 1 1.73 2.08 8.00 2.35 2.76 1.85 6.63 .39 TTSS16014M 8mm 11.97 3615201 CV50BHPVTT125400 1 1/4 1.73 2.08 4.00 - 2.63 2.01 - .39 TTSS16014M 8mm 7.74 3615202 CV50BHPVTT125800 1 1/4 1.73 2.08 8.00 2.35 2.76 2.01 6.63 .39 TTSS16014M 8mm 11.65 3683506 CV50BHPVTT150450 1 1/2 2.36 2.75 4.50 - 3.75 2.01 - .39 TTSS20014M 10mm 9.81 3683507 CV50BHPVTT200450 2 2.72 3.11 4.50 - 3.75 2.20 - .39 TTSS20014M 10mm 10.07 NOTE: Do not overheat. Overheating will destroy the accuracy and functionality of the toolholder. Shrink fit technical section, see page M78. Supplied with stop screw. Adjusting stop screw gage, see page M81. Optional M6 1.0P x 5 lg fine-balancing screw set (10 pieces) is available. Order number is MS1276PKG and must be ordered separately. For retention knobs, see page L45. Kennametal F45 CAT50 Shank Tools
