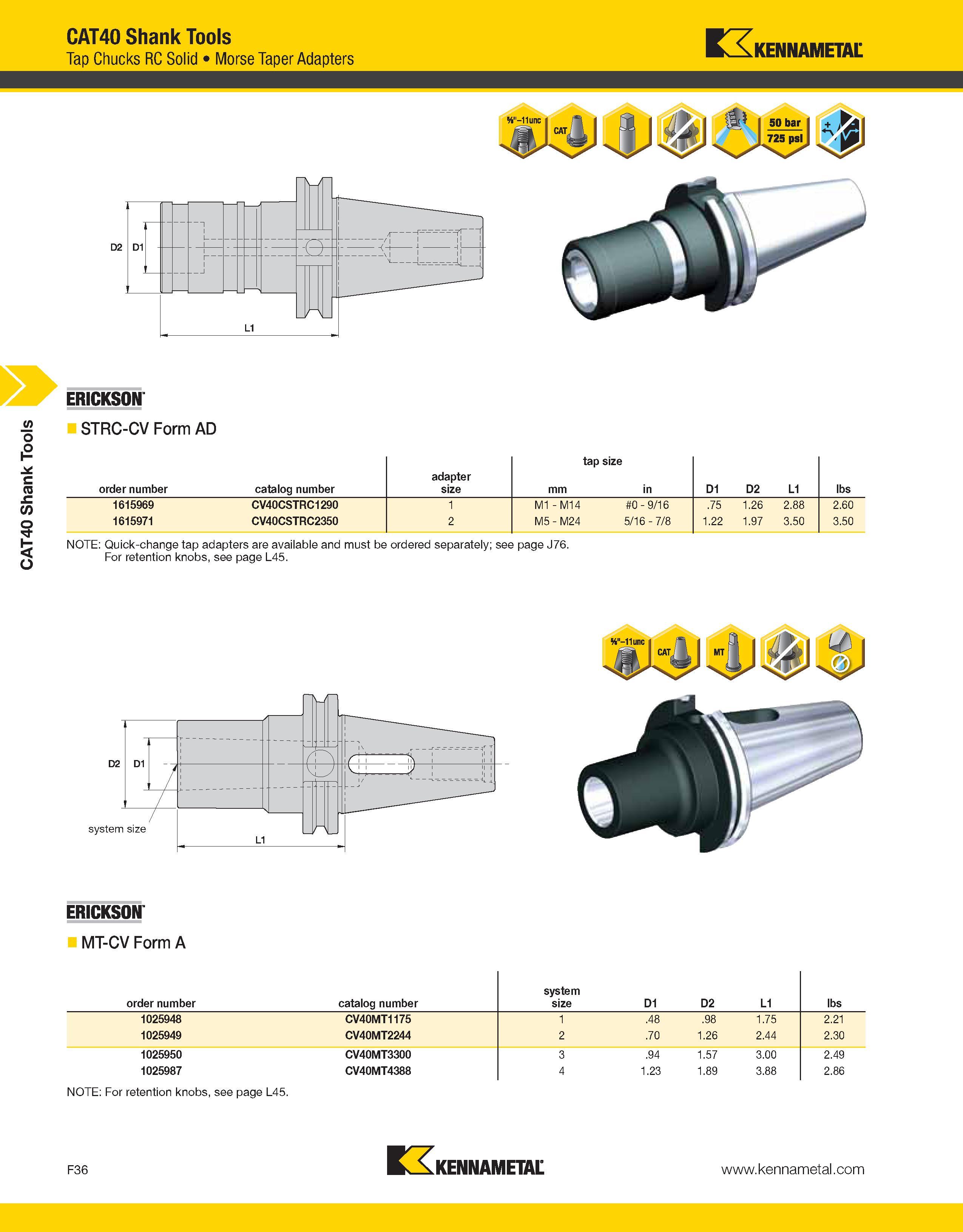

CAT40 Shank Tools CAT40 Shank Tools Tap Chucks RC Solid Morse Taper Adapters Kennametal ERICKSON STRC-CV Form AD order number catalog number adapter size tap size mm in D1 D2 L1 lbs 1615969 CV40CSTRC1290 1 M1 - M14 0 - 9/16 .75 1.26 2.88 2.60 1615971 CV40CSTRC2350 2 M5 - M24 5/16 - 7/8 1.22 1.97 3.50 3.50 NOTE: Quick-change tap adapters are available and must be ordered separately; see page J76. For retention knobs, see page L45. ERICKSON MT-CV Form A order number catalog number system size D1 D2 L1 lbs 1025948 CV40MT1175 1 .48 .98 1.75 2.21 1025949 CV40MT2244 2 .70 1.26 2.44 2.30 1025950 CV40MT3300 3 .94 1.57 3.00 2.49 1025987 CV40MT4388 4 1.23 1.89 3.88 2.86 NOTE: For retention knobs, see page L45. F36 n, KENNAMETAL
