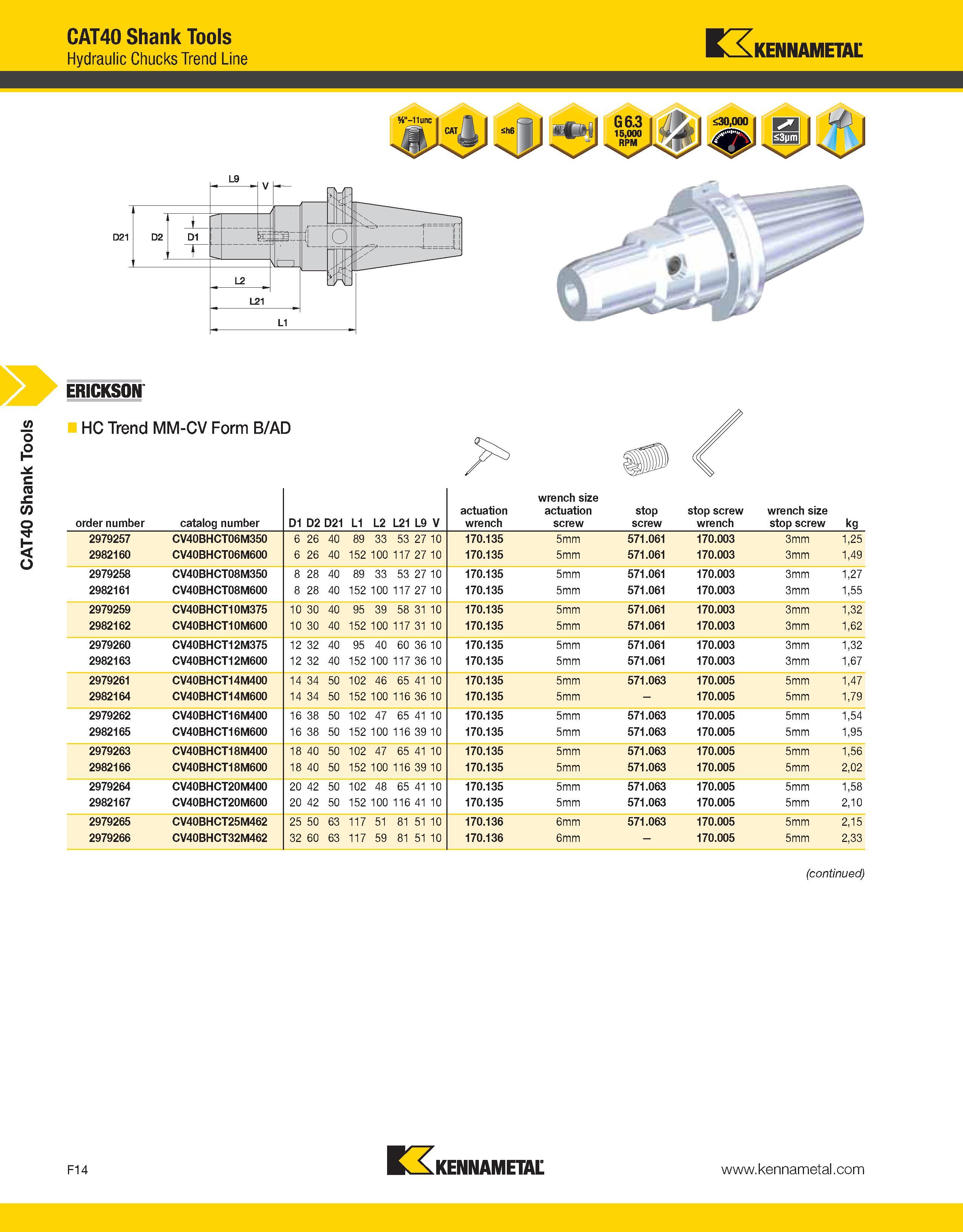

CAT40 Shank Tools CAT40 Shank Tools Hydraulic Chucks Trend Line Kennametal ERICKSON HC Trend MM-CV Form B/AD order number catalog number D1 D2 D21 L1 L2 L21 L9 V actuation wrench wrench size actuation screw stop screw stop screw wrench wrench size stop screw kg 2979257 CV40BHCT06M350 6 26 40 89 33 53 27 10 170.135 5mm 571.061 170.003 3mm 1,25 2982160 CV40BHCT06M600 6 26 40 152 100 117 27 10 170.135 5mm 571.061 170.003 3mm 1,49 2979258 CV40BHCT08M350 8 28 40 89 33 53 27 10 170.135 5mm 571.061 170.003 3mm 1,27 2982161 CV40BHCT08M600 8 28 40 152 100 117 27 10 170.135 5mm 571.061 170.003 3mm 1,55 2979259 CV40BHCT10M375 10 30 40 95 39 58 31 10 170.135 5mm 571.061 170.003 3mm 1,32 2982162 CV40BHCT10M600 10 30 40 152 100 117 31 10 170.135 5mm 571.061 170.003 3mm 1,62 2979260 CV40BHCT12M375 12 32 40 95 40 60 36 10 170.135 5mm 571.061 170.003 3mm 1,32 2982163 CV40BHCT12M600 12 32 40 152 100 117 36 10 170.135 5mm 571.061 170.003 3mm 1,67 2979261 CV40BHCT14M400 14 34 50 102 46 65 41 10 170.135 5mm 571.063 170.005 5mm 1,47 2982164 CV40BHCT14M600 14 34 50 152 100 116 36 10 170.135 5mm - 170.005 5mm 1,79 2979262 CV40BHCT16M400 16 38 50 102 47 65 41 10 170.135 5mm 571.063 170.005 5mm 1,54 2982165 CV40BHCT16M600 16 38 50 152 100 116 39 10 170.135 5mm 571.063 170.005 5mm 1,95 2979263 CV40BHCT18M400 18 40 50 102 47 65 41 10 170.135 5mm 571.063 170.005 5mm 1,56 2982166 CV40BHCT18M600 18 40 50 152 100 116 39 10 170.135 5mm 571.063 170.005 5mm 2,02 2979264 CV40BHCT20M400 20 42 50 102 48 65 41 10 170.135 5mm 571.063 170.005 5mm 1,58 2982167 CV40BHCT20M600 20 42 50 152 100 116 41 10 170.135 5mm 571.063 170.005 5mm 2,10 2979265 CV40BHCT25M462 25 50 63 117 51 81 51 10 170.136 6mm 571.063 170.005 5mm 2,15 2979266 CV40BHCT32M462 32 60 63 117 59 81 51 10 170.136 6mm - 170.005 5mm 2,33 (continued) F14 Kennametal
