1013 Каталог KENNAMETAL 2013 Инструментальная оснастка для металлорежущих станков Стр.E83

Каталог KENNAMETAL 2013 Инструментальная оснастка Стр. E83 1013 Lab2u

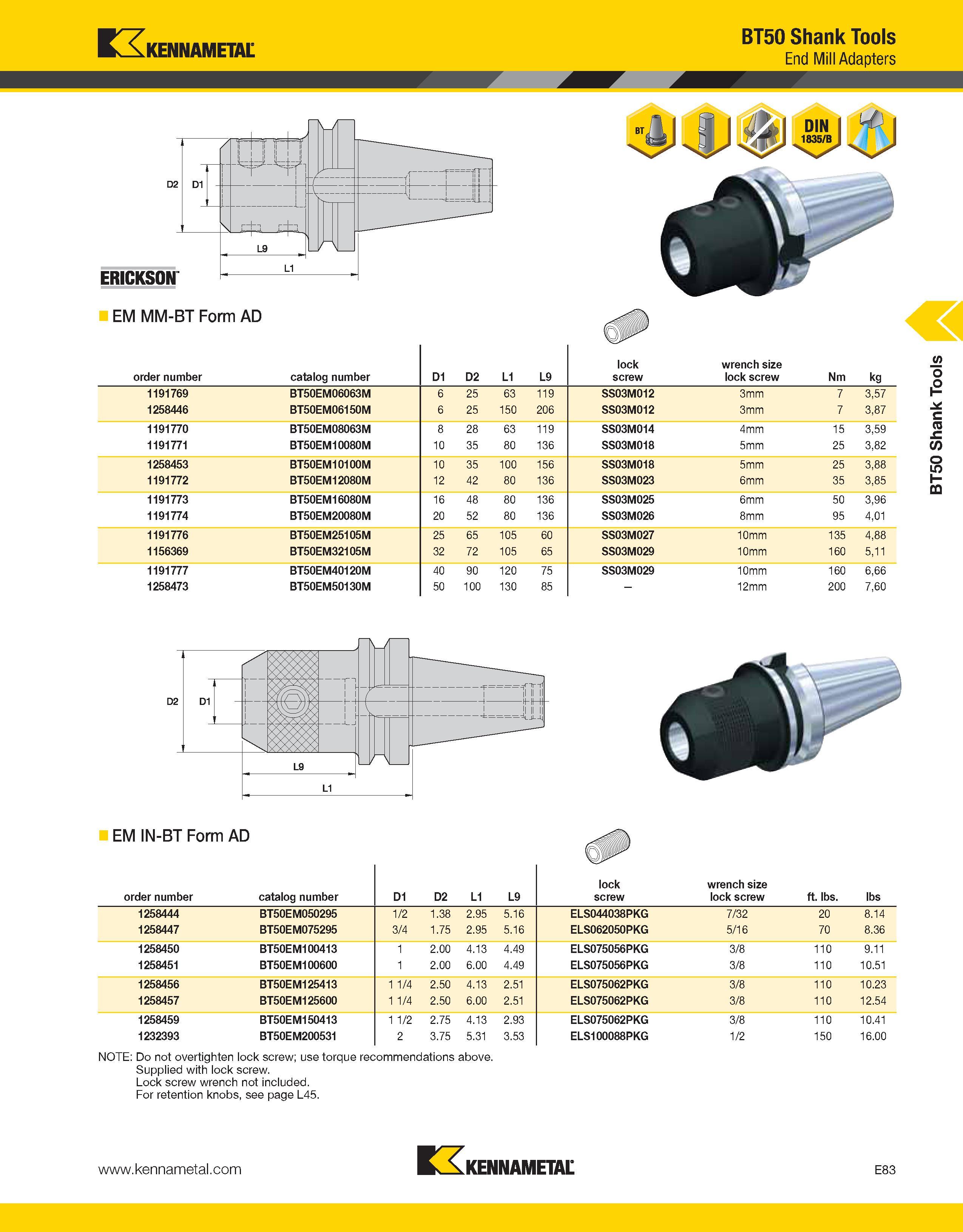

Kennametal BT50 Shank Tools End Mill Adapters EM MM-BT Form AD order number catalog number D1 D2 L1 L9 lock screw wrench size lock screw Nm kg 1191769 BT50EM06063M 6 25 63 119 SS03M012 3mm 7 3,57 1258446 BT50EM06150M 6 25 150 206 SS03M012 3mm 7 3,87 1191770 BT50EM08063M 8 28 63 119 SS03M014 4mm 15 3,59 1191771 BT50EM10080M 10 35 80 136 SS03M018 5mm 25 3,82 1258453 BT50EM10100M 10 35 100 156 SS03M018 5mm 25 3,88 1191772 BT50EM12080M 12 42 80 136 SS03M023 6mm 35 3,85 1191773 BT50EM16080M 16 48 80 136 SS03M025 6mm 50 3,96 1191774 BT50EM20080M 20 52 80 136 SS03M026 8mm 95 4,01 1191776 BT50EM25105M 25 65 105 60 SS03M027 10mm 135 4,88 1156369 BT50EM32105M 32 72 105 65 SS03M029 10mm 160 5,11 1191777 BT50EM40120M 40 90 120 75 SS03M029 10mm 160 6,66 1258473 BT50EM50130M 50 100 130 85 - 12mm 200 7,60 EM IN-BT Form AD order number catalog number D1 D2 L1 L9 lock screw wrench size lock screw ft. lbs. lbs 1258444 BT50EM050295 1/2 1.38 2.95 5.16 ELS044038PKG 7/32 20 8.14 1258447 BT50EM075295 3/4 1.75 2.95 5.16 ELS062050PKG 5/16 70 8.36 1258450 BT50EM100413 1 2.00 4.13 4.49 ELS075056PKG 3/8 110 9.11 1258451 BT50EM100600 1 2.00 6.00 4.49 ELS075056PKG 3/8 110 10.51 1258456 BT50EM125413 1 1/4 2.50 4.13 2.51 ELS075062PKG 3/8 110 10.23 1258457 BT50EM125600 1 1/4 2.50 6.00 2.51 ELS075062PKG 3/8 110 12.54 1258459 BT50EM150413 1 1/2 2.75 4.13 2.93 ELS075062PKG 3/8 110 10.41 1232393 BT50EM200531 2 3.75 5.31 3.53 ELS100088PKG 1/2 150 16.00 NOTE: Do not overtighten lock screw; use torque recommendations above. Supplied with lock screw. Lock screw wrench not included. For retention knobs, see page L45. n, KENNAMETAL E83 BT50 Shank Tools
