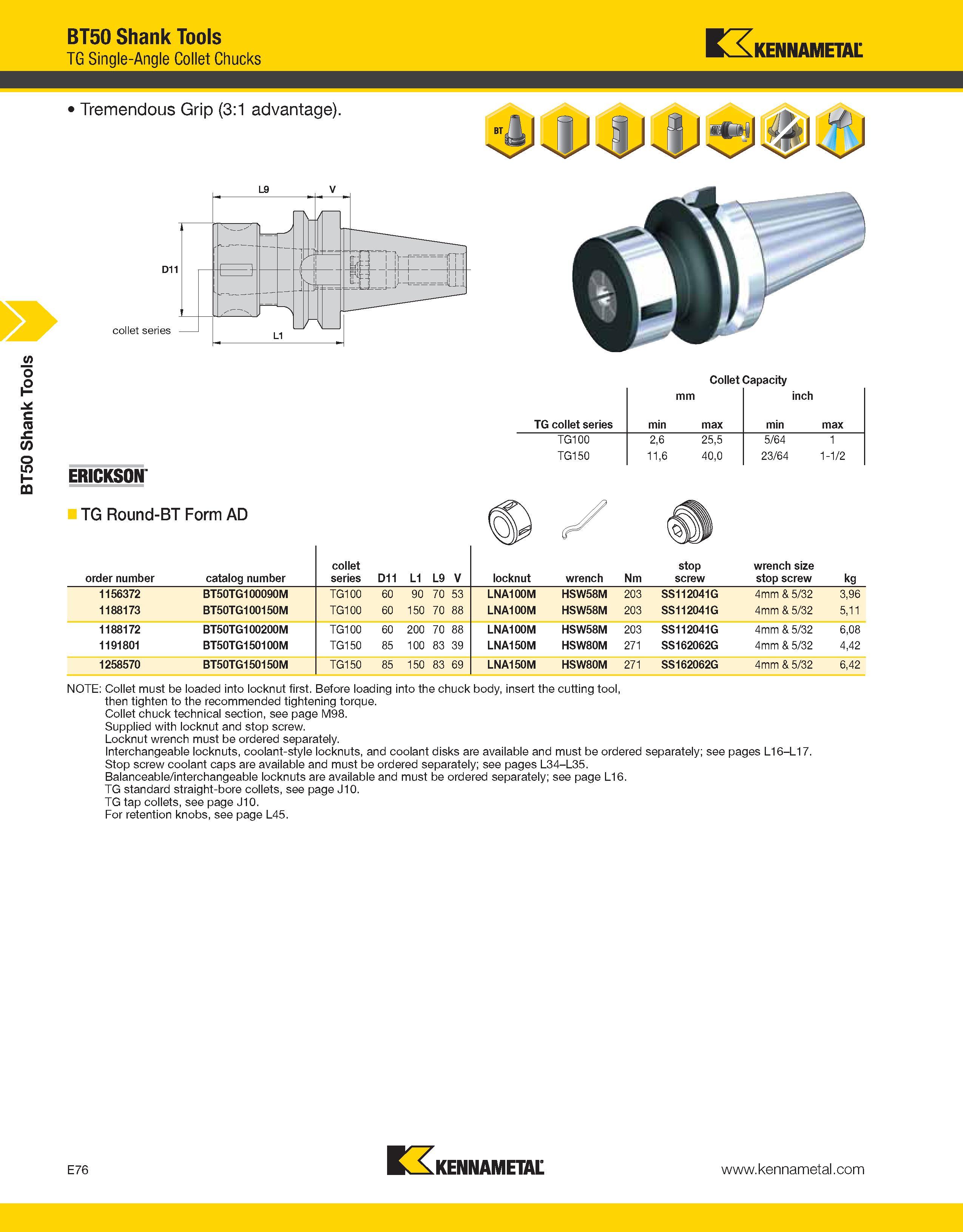

BT50 Shank Tools BT50 Shank Tools TG Single-Angle Collet Chucks Kennametal Collet Capacity mm inch TG collet series min max min max TG100 2,6 25,5 5/64 1 TG150 11,6 40,0 23/64 1-1/2 ERICKSON order number catalog number collet series D11 L1 L9 V locknut wrench Nm stop screw wrench size stop screw kg 1156372 BT50TG100090M TG100 60 90 70 53 LNA100M HSW58M 203 SS112041G 4mm & 5/32 3,96 1188173 BT50TG100150M TG100 60 150 70 88 LNA100M HSW58M 203 SS112041G 4mm & 5/32 5,11 1188172 BT50TG100200M TG100 60 200 70 88 LNA100M HSW58M 203 SS112041G 4mm & 5/32 6,08 1191801 BT50TG150100M TG150 85 100 83 39 LNA150M HSW80M 271 SS162062G 4mm & 5/32 4,42 1258570 BT50TG150150M TG150 85 150 83 69 LNA150M HSW80M 271 SS162062G 4mm & 5/32 6,42 NOTE: Collet must be loaded into locknut first. Before loading into the chuck body, insert the cutting tool, then tighten to the recommended tightening torque. Collet chuck technical section, see page M98. Supplied with locknut and stop screw. Locknut wrench must be ordered separately. Interchangeable locknuts, coolant-style locknuts, and coolant disks are available and must be ordered separately; see pages L16-L17. Stop screw coolant caps are available and must be ordered separately; see pages L34-L35. Balanceable/interchangeable locknuts are available and must be ordered separately; see page L16. TG standard straight-bore collets, see page J10. TG tap collets, see page J10. For retention knobs, see page L45. E76 Kennametal
