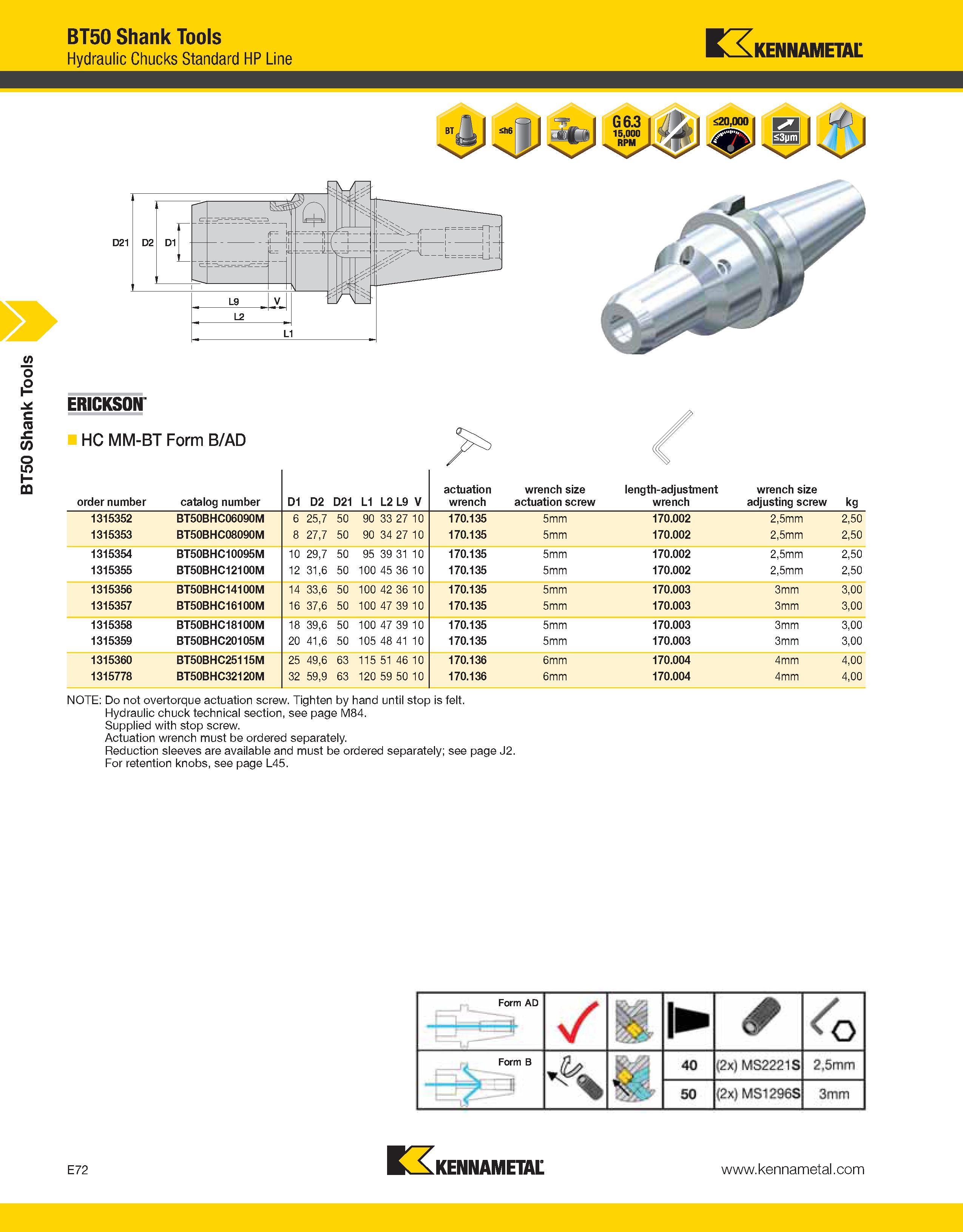

BT50 Shank Tools BT50 Shank Tools Hydraulic Chucks Standard HP Line Kennametal ERICKSON HC MM-BT Form B/AD order number catalog number D1 D2 D21 L1 L2 L9 V actuation wrench wrench size actuation screw length-adjustment wrench wrench size adjusting screw kg 1315352 BT50BHC06090M 6 25,7 50 90 33 27 10 170.135 5mm 170.002 2,5mm 2,50 1315353 BT50BHC08090M 8 27,7 50 90 34 27 10 170.135 5mm 170.002 2,5mm 2,50 1315354 BT50BHC10095M 10 29,7 50 95 39 31 10 170.135 5mm 170.002 2,5mm 2,50 1315355 BT50BHC12100M 12 31,6 50 100 45 36 10 170.135 5mm 170.002 2,5mm 2,50 1315356 BT50BHC14100M 14 ,6 CO 3 50 100 42 36 10 170.135 5mm 170.003 3mm 3,00 1315357 BT50BHC16100M 16 37,6 50 100 47 39 10 170.135 5mm 170.003 3mm 3,00 1315358 BT50BHC18100M 18 39,6 50 100 47 39 10 170.135 5mm 170.003 3mm 3,00 1315359 BT50BHC20105M 20 41,6 50 105 48 41 10 170.135 5mm 170.003 3mm 3,00 1315360 BT50BHC25115M 25 ,6 CD 4 63 115 51 46 10 170.136 6mm 170.004 4mm 4,00 1315778 BT50BHC32120M 32 59,9 63 120 59 50 10 170.136 6mm 170.004 4mm 4,00 NOTE: Do not overtorque actuation screw. Tighten by hand until stop is felt. Hydraulic chuck technical section, see page M84. Supplied with stop screw. Actuation wrench must be ordered separately. Reduction sleeves are available and must be ordered separately; see page J2. For retention knobs, see page L45. Form AD \y X lb V Form B 40 (2x) MS2221S 2,5mm \ SO gx) MS1296S 3mm E72 Kennametal
