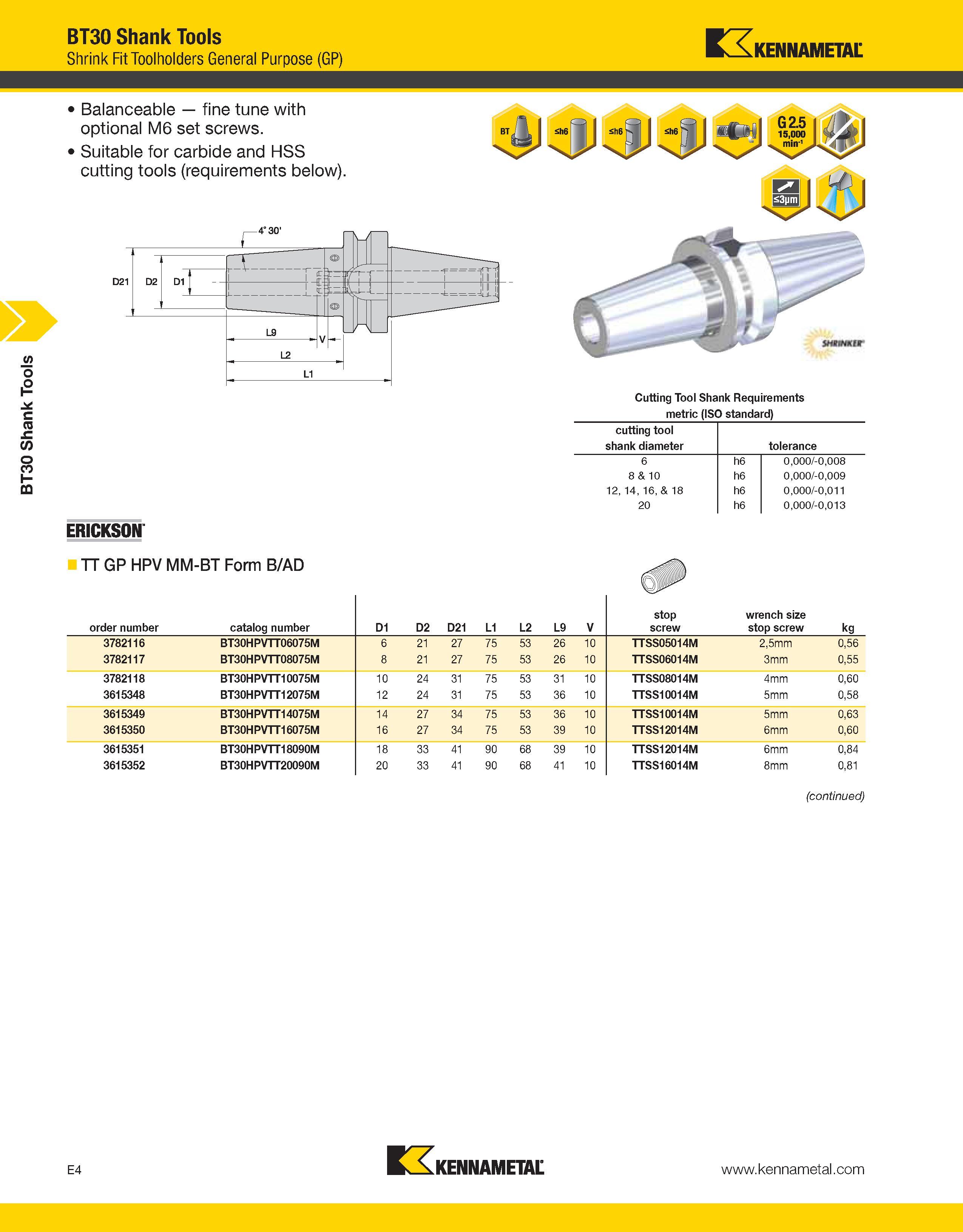

BT30 Shank Tools BT30 Shank Tools Shrink Fit Toolholders General Purpose (GP) Kennametal Balanceable fine tune with optional M6 set screws. Suitable for carbide and HSS cutting tools (requirements below). ERICKSON Cutting Tool Shank Requirements metric (ISO standard) cutting tool shank diameter tolerance 6 h6 0,000/-0,008 8 & 10 h6 0,000/-0,009 12, 14, 16, & 18 h6 0,000/-0,011 20 h6 0,000/-0,013 TT GP HPV MM-BT Form B/AD order number catalog number D1 D2 D21 L1 L2 L9 V stop screw wrench size stop screw kg 3782116 BT30HPVTT06075M 6 21 27 75 53 26 10 TTSS05014M 2,5mm 0,56 3782117 BT30HPVTT08075M 8 21 27 75 53 26 10 TTSS06014M 3mm 0,55 3782118 BT30HPVTT10075M 10 24 31 75 53 31 10 TTSS08014M 4mm 0,60 3615348 BT30HPVTT12075M 12 24 31 75 53 36 10 TTSS10014M 5mm 0,58 3615349 BT30HPVTT14075M 14 27 34 75 53 36 10 TTSS10014M 5mm 0,63 3615350 BT30HPVTT16075M 16 27 34 75 53 39 10 TTSS12014M 6mm 0,60 3615351 BT30HPVTT18090M 18 33 41 90 68 39 10 TTSS12014M 6mm 0,84 3615352 BT30HPVTT20090M 20 33 41 90 68 41 10 TTSS16014M 8mm 0,81 (continued) E4 Kennametal
