945 Каталог KENNAMETAL 2013 Инструментальная оснастка для металлорежущих станков Стр.E15

Каталог KENNAMETAL 2013 Инструментальная оснастка Стр. E15 0945 Lab2u

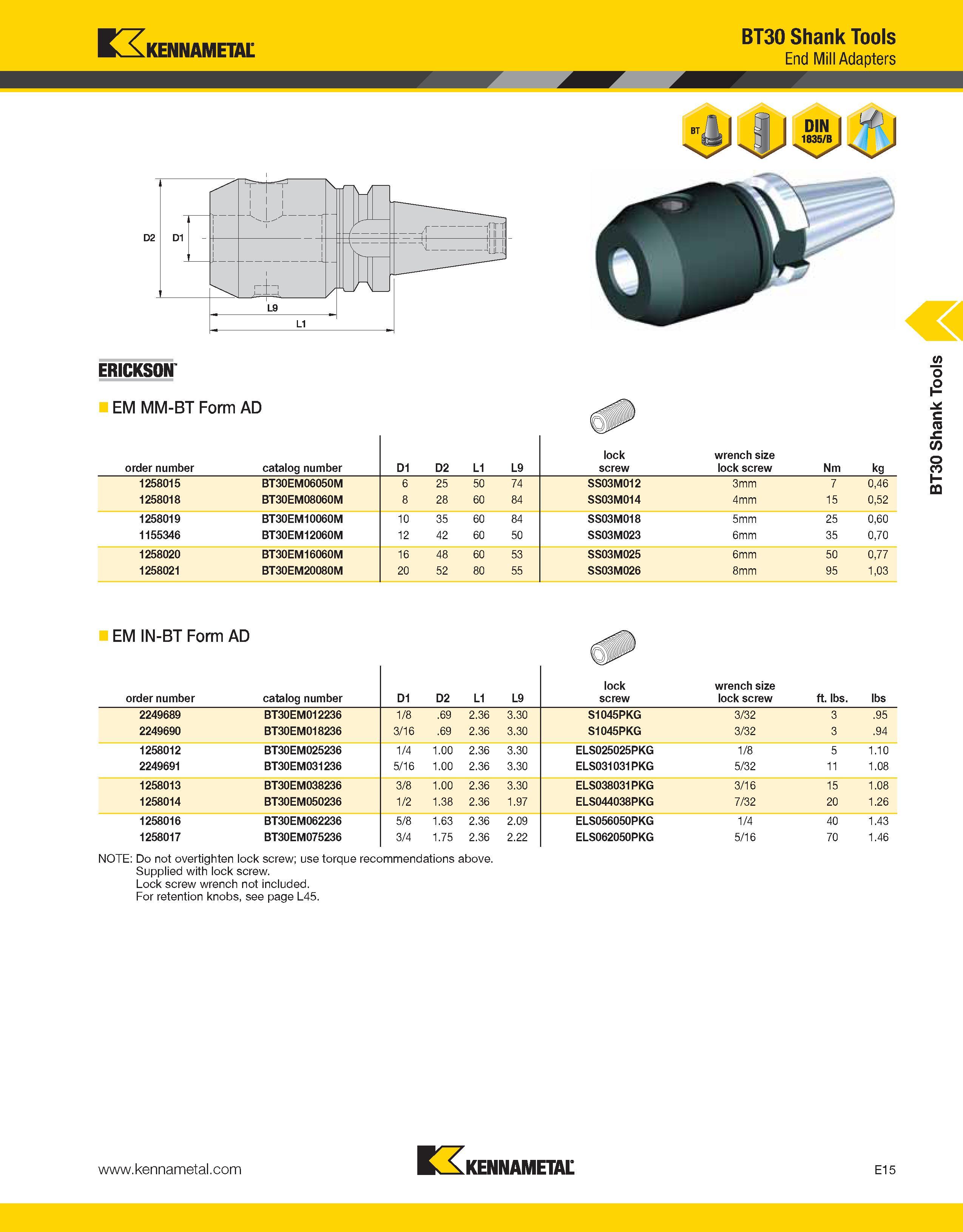

Kennametal BT30 Shank Tools End Mill Adapters ERICKSON EM MM-BT Form AD order number catalog number D1 D2 L1 L9 lock screw wrench size lock screw Nm kg 1258015 BT30EM06050M 6 25 50 74 SS03M012 3mm 7 0,46 1258018 BT30EM08060M 8 28 60 84 SS03M014 4mm 15 0,52 1258019 BT30EM10060M 10 35 60 84 SS03M018 5mm 25 0,60 1155346 BT30EM12060M 12 42 60 50 SS03M023 6mm 35 0,70 1258020 BT30EM16060M 16 48 60 53 SS03M025 6mm 50 0,77 1258021 BT30EM20080M 20 52 80 55 SS03M026 8mm 95 1,03 EM IN-BT Form AD order number catalog number D1 D2 L1 L9 lock screw wrench size lock screw ft. lbs. lbs 2249689 BT30EM012236 1/8 .69 2.36 3.30 S1045PKG 3/32 3 .95 2249690 BT30EM018236 3/16 .69 2.36 3.30 S1045PKG 3/32 3 .94 1258012 BT30EM025236 1/4 1.00 2.36 3.30 ELS025025PKG 1/8 5 1.10 2249691 BT30EM031236 5/16 1.00 2.36 3.30 ELS031031PKG 5/32 11 1.08 1258013 BT30EM038236 3/8 1.00 2.36 3.30 ELS038031PKG 3/16 15 1.08 1258014 BT30EM050236 1/2 1.38 2.36 1.97 ELS044038PKG 7/32 20 1.26 1258016 BT30EM062236 5/8 1.63 2.36 2.09 ELS056050PKG 1/4 40 1.43 1258017 BT30EM075236 3/4 1.75 2.36 2.22 ELS062050PKG 5/16 70 1.46 NOTE: Do not overtighten lock screw; use torque recommendations above. Supplied with lock screw. Lock screw wrench not included. For retention knobs, see page L45. Kennametal E15 BT30 Shank Tools
