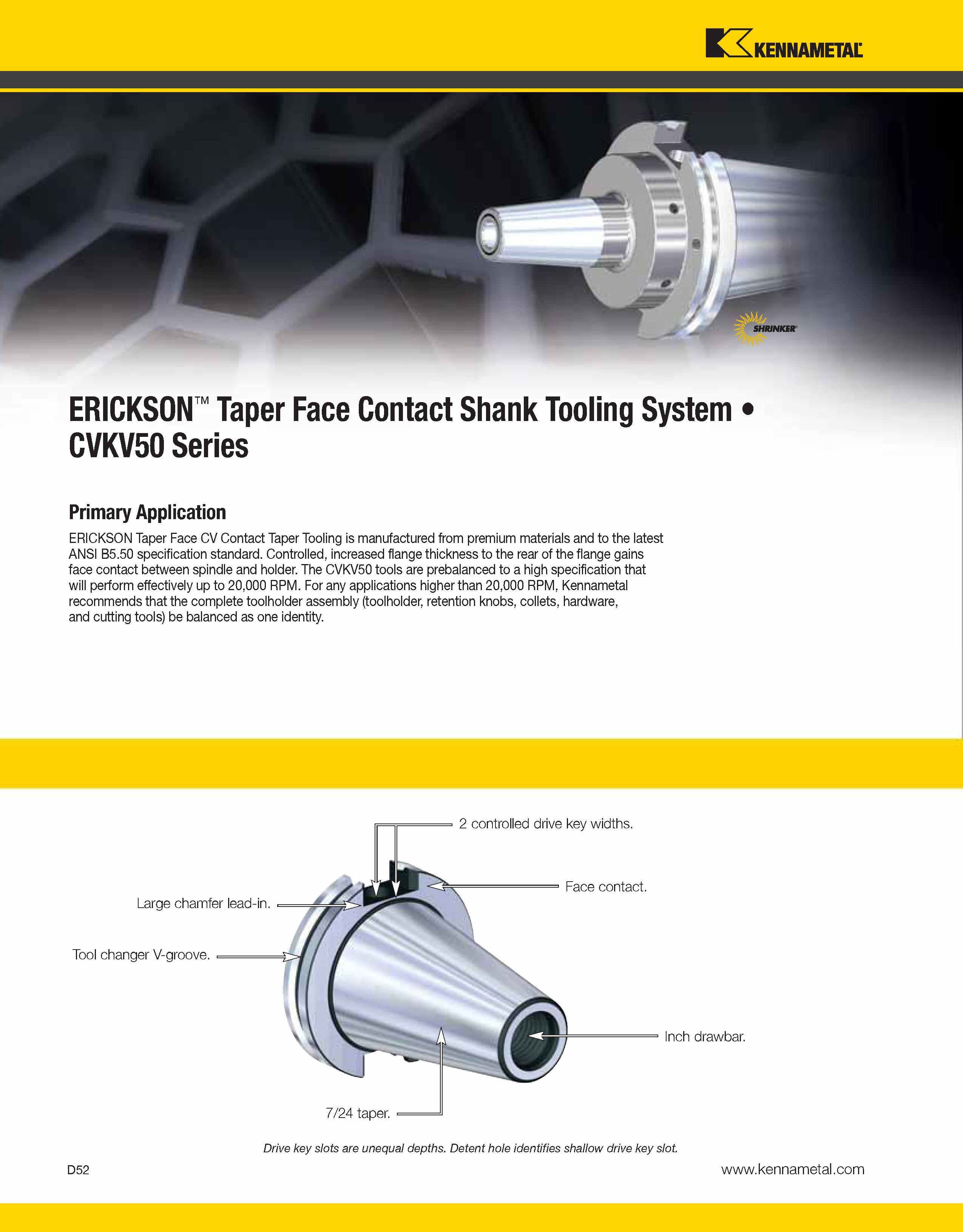

Kennametal ERICKSON Taper Face Contact Shank Tooling System CVKV50 Series Primary Application ERICKSON Taper Face CV Contact Taper Tooling is manufactured from premium materials and to the latest ANSI B5.50 specification standard. Controlled, increased flange thickness to the rear of the flange gains face contact between spindle and holder. The CVKV50 tools are prebalanced to a high specification that will perform effectively up to 20,000 RPM. For any applications higher than 20,000 RPM, Kennametal recommends that the complete toolholder assembly (toolholder, retention knobs, collets, hardware, and cutting tools) be balanced as one identity. 2 controlled drive key widths. Face contact. Large chamfer lead-in. . Tool changer V-groove. Inch drawbar. 7/24 taper. Drive key slots are unequal depths. Detent hole identifies shallow drive key slot. D52
