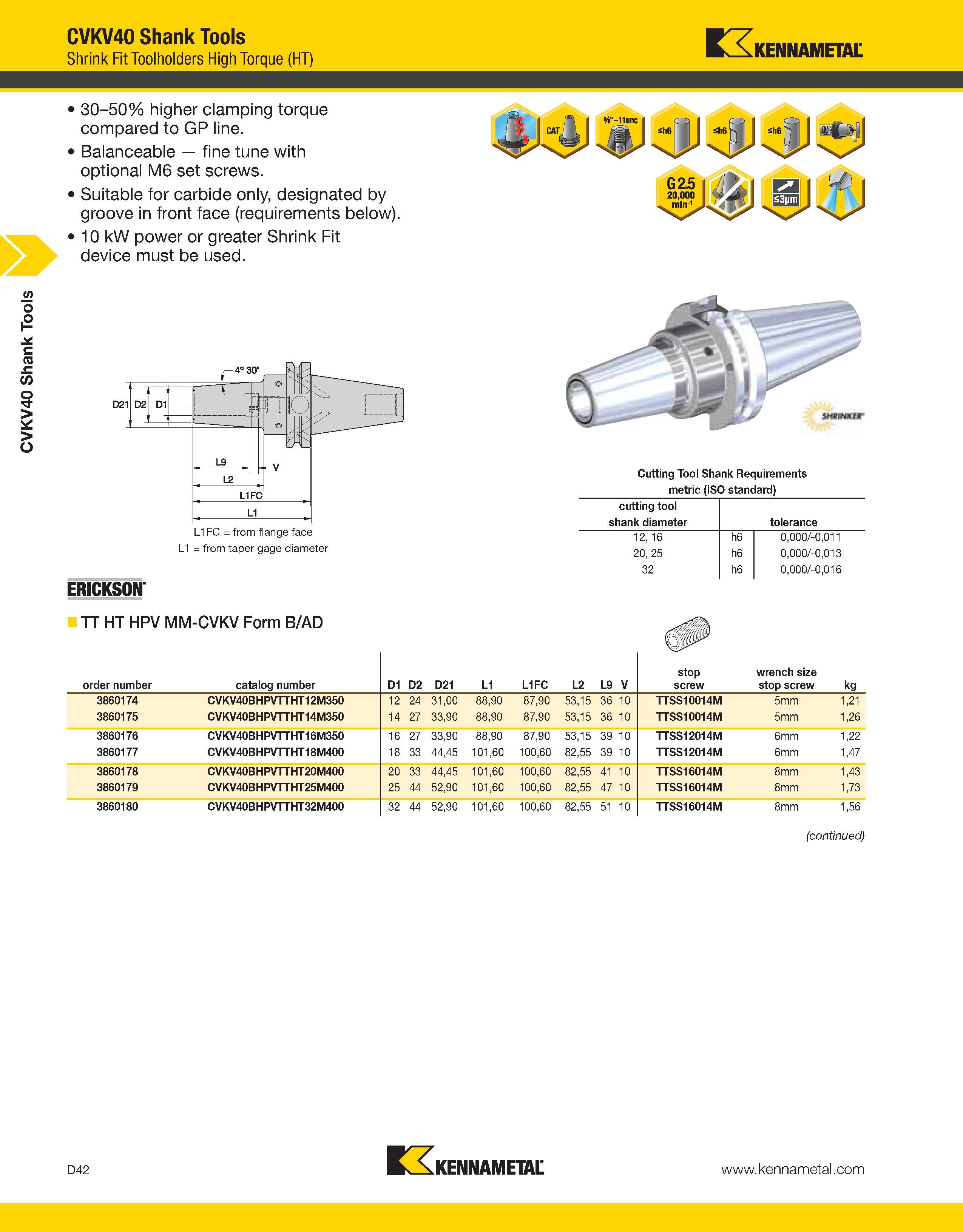

CVKV40 Shank Tools CVKV40 Shank Tools Shrink Fit Toolholders High Torque (HT) Kennametal 30-50% higher clamping torque compared to GP line. Balanceable fine tune with optional M6 set screws. Suitable for carbide only, designated by groove in front face (requirements below). 10 kW power or greater Shrink Fit device must be used. L1FC = from flange face L1 = from taper gage diameter ERICKSON Cutting Tool Shank Requirements metric (ISO standard) cutting tool shank diameter tolerance 12, 16 h6 0,000/-0,011 20, 25 h6 0,000/-0,013 32 h6 0,000/-0,016 TT HT HPV MM-CVKV Form B/AD order number catalog number D1 D2 D21 L1 L1FC L2 L9 V stop screw wrench size stop screw kg 3860174 CVKV40BHPVTTHT12M350 12 24 31,00 88,90 87,90 53,15 36 10 TTSS10014M 5mm 1,21 3860175 CVKV40BHPVTTHT14M350 14 27 33,90 88,90 87,90 53,15 36 10 TTSS10014M 5mm 1,26 3860176 CVKV40BHPVTTHT16M350 16 27 33,90 88,90 87,90 53,15 39 10 TTSS12014M 6mm 1,22 3860177 CVKV40BHPVTTHT18M400 18 33 44,45 101,60 100,60 82,55 39 10 TTSS12014M 6mm 1,47 3860178 CVKV40BHPVTTHT20M400 20 33 44,45 101,60 100,60 82,55 41 10 TTSS16014M 8mm 1,43 3860179 CVKV40BHPVTTHT25M400 25 44 52,90 101,60 100,60 82,55 47 10 TTSS16014M 8mm 1,73 3860180 CVKV40BHPVTTHT32M400 32 44 52,90 101,60 100,60 82,55 51 10 TTSS16014M 8mm 1,56 (continued) n, D42 KENNAMETAL
