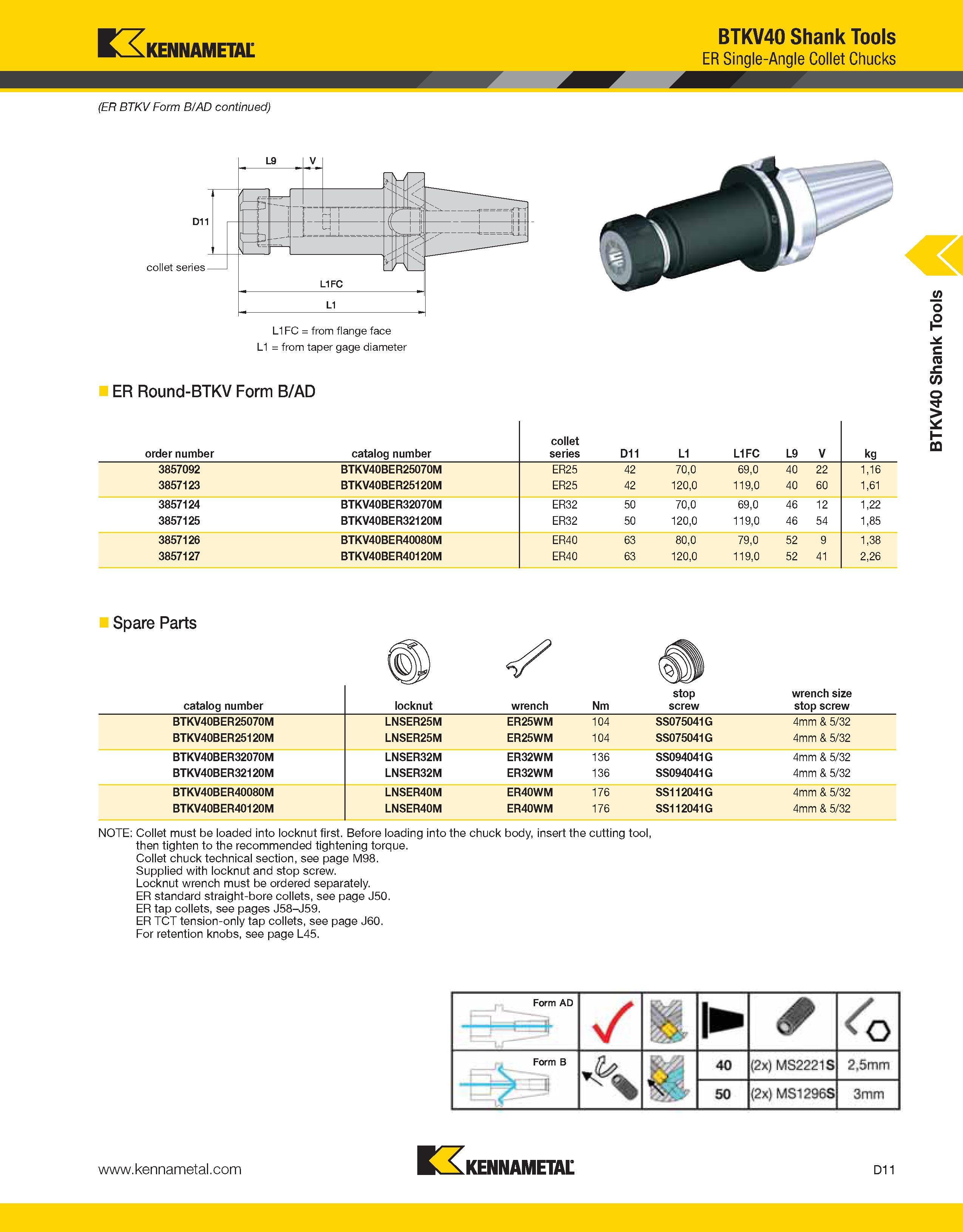

ifEMMAMETAr BTKV40 Shank Tools ivtNNAlVlt IAL ER Single-Angle Collet Chucks (ER BTKV Form B/AD continued) L1FC = from flange face L1 = from taper gage diameter ER Round-BTKV Form B/AD order number catalog number collet series D11 L1 L1FC L9 V kg 3857092 BTKV40BER25070M ER25 42 70,0 69,0 40 22 1,16 3857123 BTKV40BER25120M ER25 42 120,0 119,0 40 60 1,61 3857124 BTKV40BER32070M ER32 50 70,0 69,0 46 12 1,22 3857125 BTKV40BER32120M ER32 50 120,0 119,0 46 54 1,85 3857126 BTKV40BER40080M ER40 63 80,0 79,0 52 9 1,38 3857127 BTKV40BER40120M ER40 63 120,0 119,0 52 41 2,26 Spare Parts catalog number locknut wrench Nm stop screw wrench size stop screw BTKV40BER25070M LNSER25M ER25WM 104 SS075041G 4mm & 5/32 BTKV40BER25120M LNSER25M ER25WM 104 SS075041G 4mm & 5/32 BTKV40BER32070M LNSER32M ER32WM 136 SS094041G 4mm & 5/32 BTKV40BER32120M LNSER32M ER32WM 136 SS094041G 4mm & 5/32 BTKV40BER40080M LNSER40M ER40WM 176 SS112041G 4mm & 5/32 BTKV40BER40120M LNSER40M ER40WM 176 SS112041G 4mm & 5/32 NOTE: Collet must be loaded into locknut first. Before loading into the chuck body, insert the cutting tool, then tighten to the recommended tightening torque. Collet chuck technical section, see page M98. Supplied with locknut and stop screw. Locknut wrench must be ordered separately. ER standard straight-bore collets, see page J50. ER tap collets, see pages J58-J59. ER TCT tension-only tap collets, see page J60. For retention knobs, see page L45. Kennametal D11 BTKV40 Shank Tools
