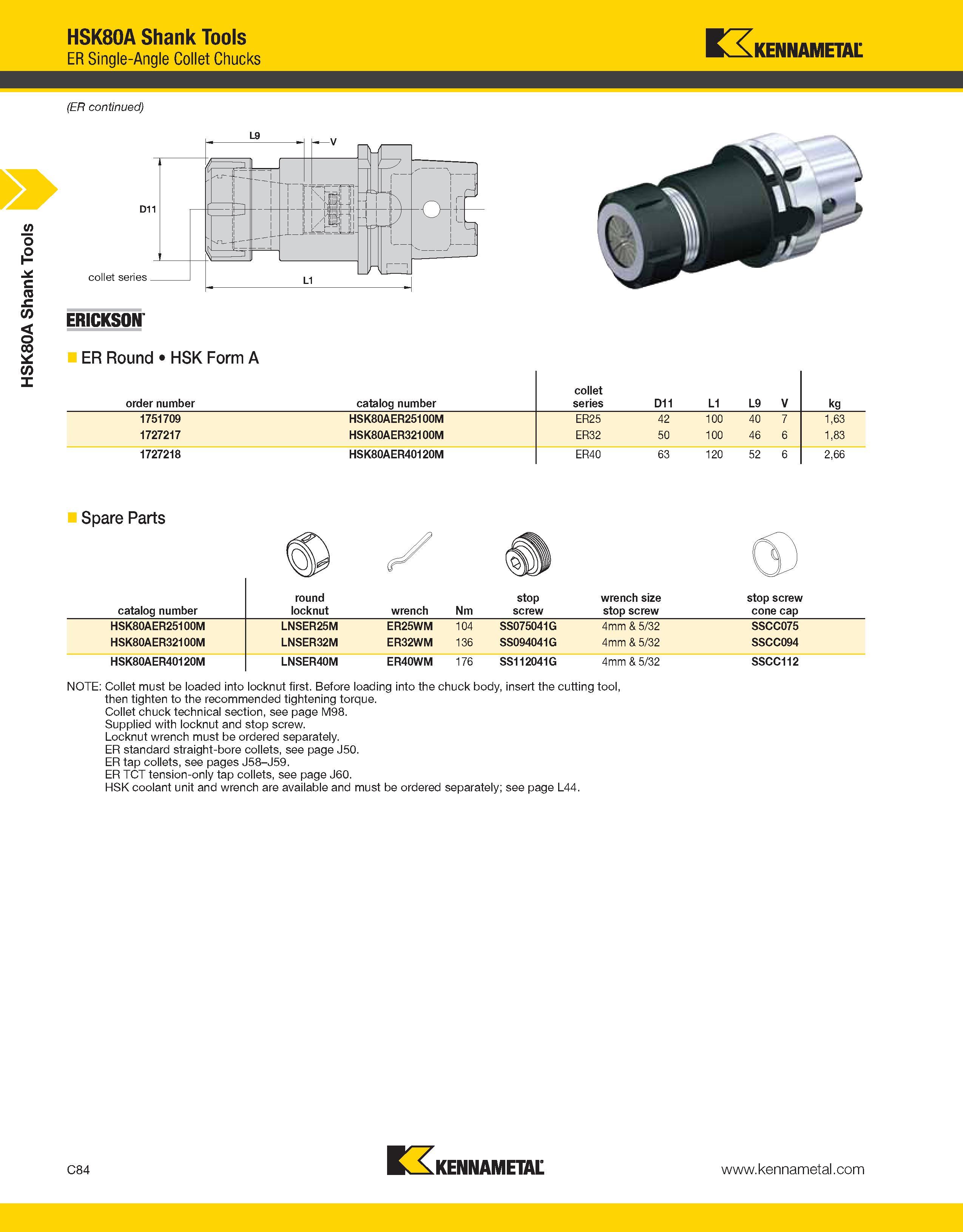

HSK80A Shank Tools HSK80A Shank Tools ER Single-Angle Collet Chucks Kennametal (ER continued) ERICKSON ER Round HSK Form A order number catalog number collet series D11 L1 L9 V kg 1751709 HSK80AER25100M ER25 42 100 40 7 1,63 1727217 HSK80AER32100M ER32 50 100 46 6 1,83 1727218 HSK80AER40120M ER40 63 120 52 6 2,66 Spare Parts catalog number round locknut wrench Nm stop screw wrench size stop screw stop screw cone cap HSK80AER25100M LNSER25M ER25WM 104 SS075041G 4mm & 5/32 SSCC075 HSK80AER32100M LNSER32M ER32WM 136 SS094041G 4mm & 5/32 SSCC094 HSK80AER40120M LNSER40M ER40WM 176 SS112041G 4mm & 5/32 SSCC112 NOTE: Collet must be loaded into locknut first. Before loading into the chuck body, insert the cutting tool, then tighten to the recommended tightening torque. Collet chuck technical section, see page M98. Supplied with locknut and stop screw. Locknut wrench must be ordered separately. ER standard straight-bore collets, see page J50. ER tap collets, see pages J58-J59. ER TCT tension-only tap collets, see page J60. HSK coolant unit and wrench are available and must be ordered separately; see page L44. C84 Kennametal
