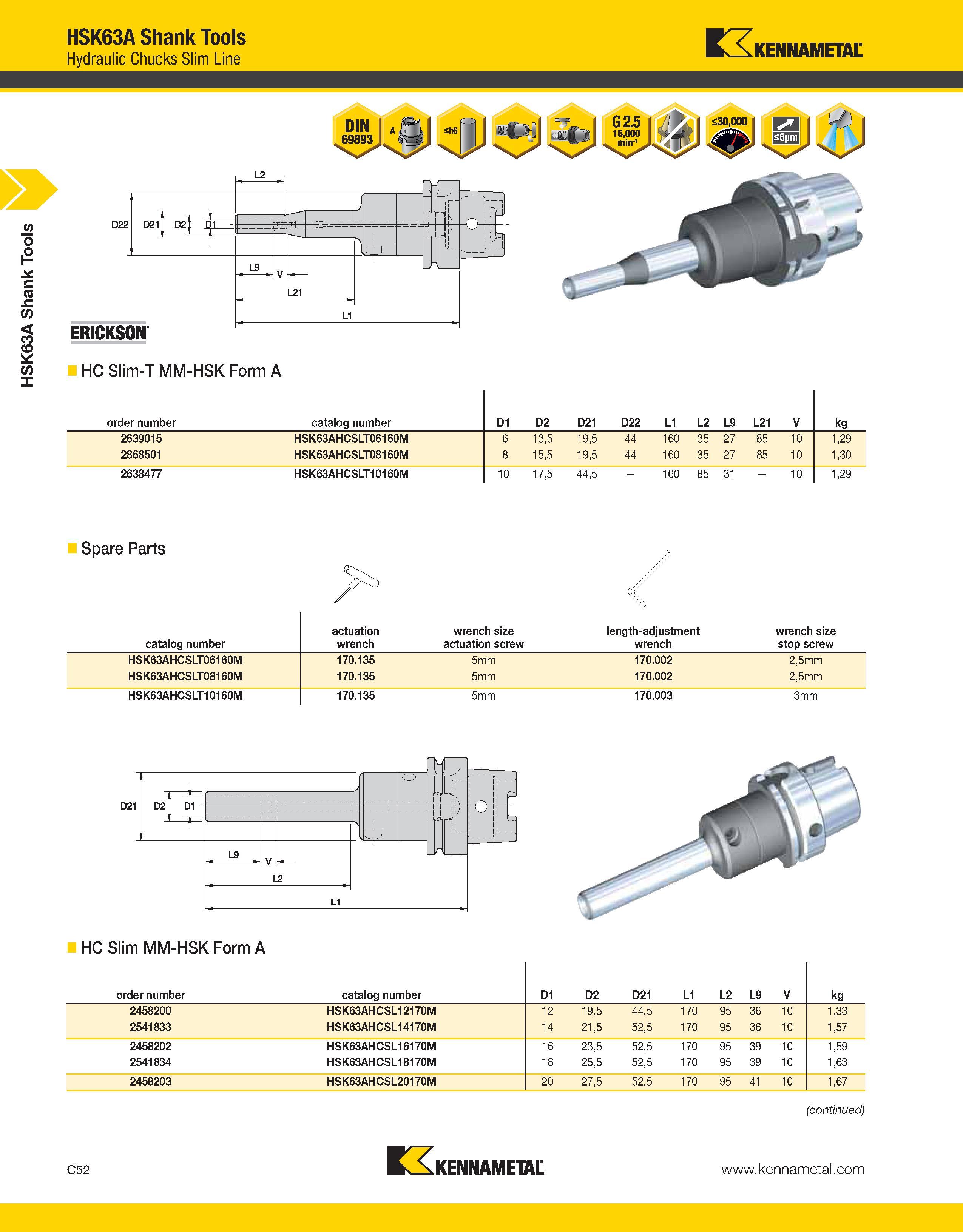

HSK63A Shank Tools HSK63A Shank Tools Hydraulic Chucks Slim Line Kennametal ERICKSON J1 , i > f i . I - r_1_ J + i h- rh I '' L9 V 1 HC Slim-T MM-HSK Form A order number catalog number D1 D2 D21 D22 L1 L2 L9 L21 V kg 2639015 HSK63AHCSLT06160M 6 13,5 19,5 44 160 35 27 85 10 1,29 2868501 HSK63AHCSLT08160M 8 15,5 19,5 44 160 35 27 85 10 1,30 2638477 HSK63AHCSLT10160M 10 17,5 44,5 - 160 85 31 - 10 1,29 Spare Parts catalog number actuation wrench wrench size actuation screw length-adjustment wrench wrench size stop screw HSK63AHCSLT06160M 170.135 5mm 170.002 2,5mm HSK63AHCSLT08160M 170.135 5mm 170.002 2,5mm HSK63AHCSLT10160M 170.135 5mm 170.003 3mm HC Slim MM-HSK Form A order number catalog number D1 D2 D21 L1 L2 L9 V kg 2458200 HSK63AHCSL12170M 12 19,5 44,5 170 95 36 10 1,33 2541833 HSK63AHCSL14170M 14 21,5 52,5 170 95 36 10 1,57 2458202 HSK63AHCSL16170M 16 23,5 52,5 170 95 39 10 1,59 2541834 HSK63AHCSL18170M 18 25,5 52,5 170 95 39 10 1,63 2458203 HSK63AHCSL20170M 20 27,5 52,5 170 95 41 10 1,67 (continued) C52 n, KENNAMETAL
