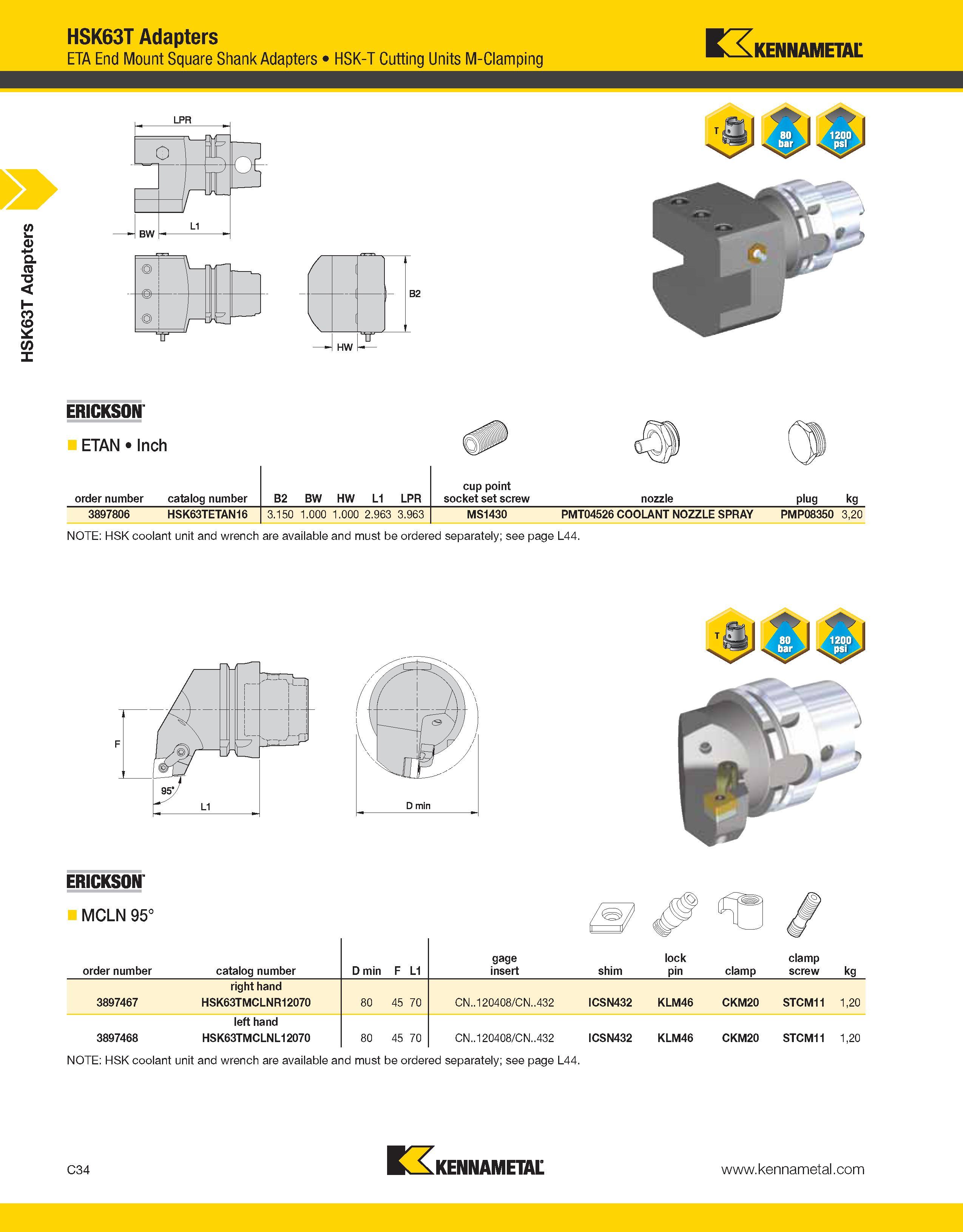

HSK63T Adapters HSK63T Adapters ETA End Mount Square Shank Adapters HSK-T Cutting Units M-Clamping Kennametal ERICKSON ETAN Inch order number catalog number B2 BW HW L1 LPR cup point socket set screw nozzle plug kg 3897806 HSK63TETAN16 3.150 1.000 1.000 2.963 3.963 MS1430 PMT04526 COOLANT NOZZLE SPRAY PMP08350 3,20 NOTE: HSK coolant unit and wrench are available and must be ordered separately; see page L44. ERICKSON MCLN 95° order number catalog number D min F L1 gage insert shim lock pin clamp clamp screw kg 3897467 right hand HSK63TMCLNR12070 80 45 70 CN..120408/CN..432 ICSN432 KLM46 CKM20 STCM11 1,20 3897468 left hand HSK63TMCLNL12070 80 45 70 CN..120408/CN..432 ICSN432 KLM46 CKM20 STCM11 1,20 NOTE: HSK coolant unit and wrench are available and must be ordered separately; see page L44. C34 Kennametal
