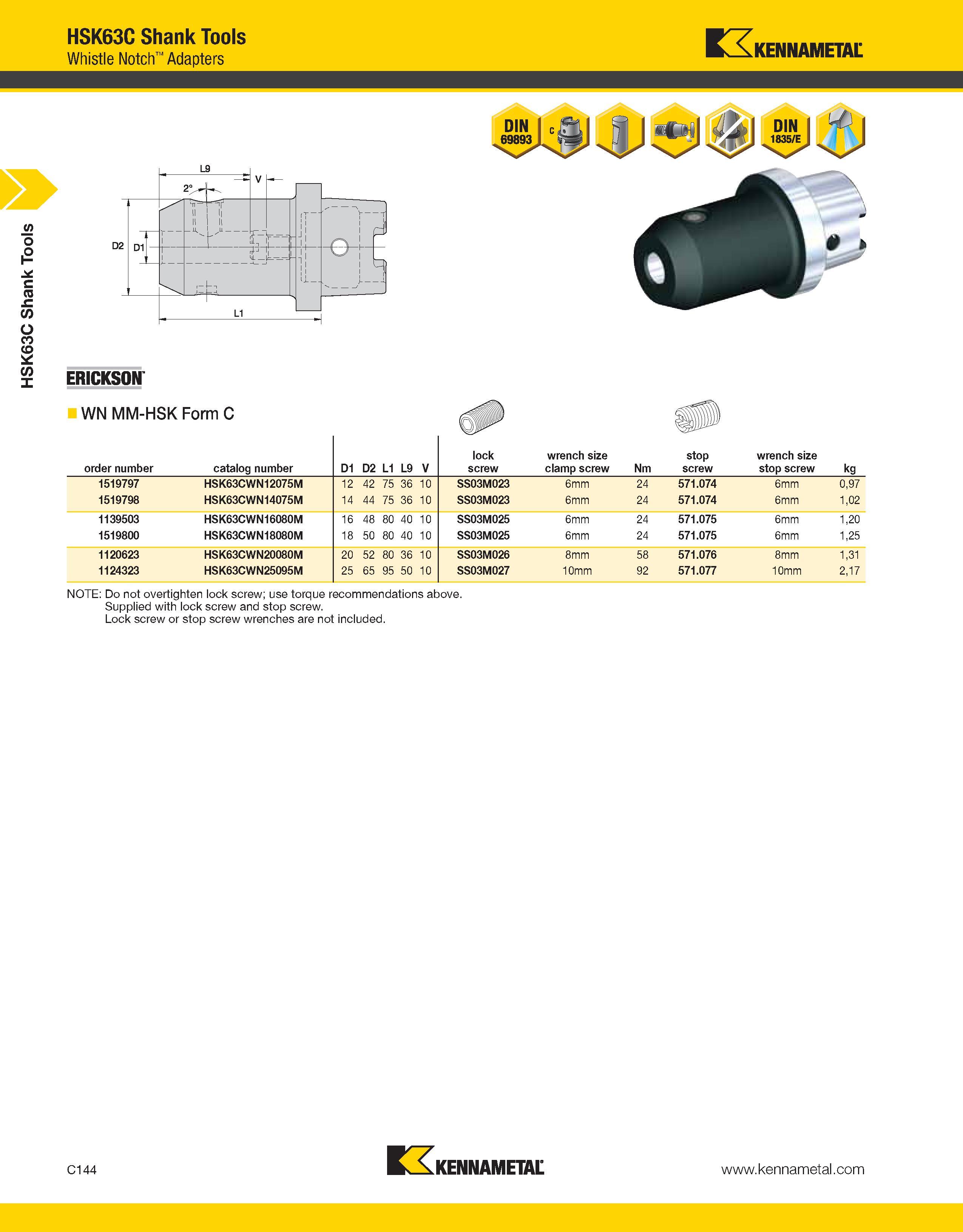

HSK63C Shank Tools HSK63C Shank Tools Whistle Notch Adapters Kennametal ERICKSON WN MM-HSK Form C order number catalog number D1 D2 L1 L9 V lock screw wrench size clamp screw Nm stop screw wrench size stop screw kg 1519797 HSK63CWN12075M 12 42 75 36 10 SS03M023 6mm 24 571.074 6mm 0,97 1519798 HSK63CWN14075M 14 44 75 36 10 SS03M023 6mm 24 571.074 6mm 1,02 1139503 HSK63CWN16080M 16 48 80 40 10 SS03M025 6mm 24 571.075 6mm 1,20 1519800 HSK63CWN18080M 18 50 80 40 10 SS03M025 6mm 24 571.075 6mm 1,25 1120623 HSK63CWN20080M 20 52 80 36 10 SS03M026 8mm 58 571.076 8mm 1,31 1124323 HSK63CWN25095M 25 65 95 50 10 SS03M027 10mm 92 571.077 10mm 2,17 NOTE: Do not overtighten lock screw; use torque recommendations above. Supplied with lock screw and stop screw. Lock screw or stop screw wrenches are not included. C144 Kennametal
