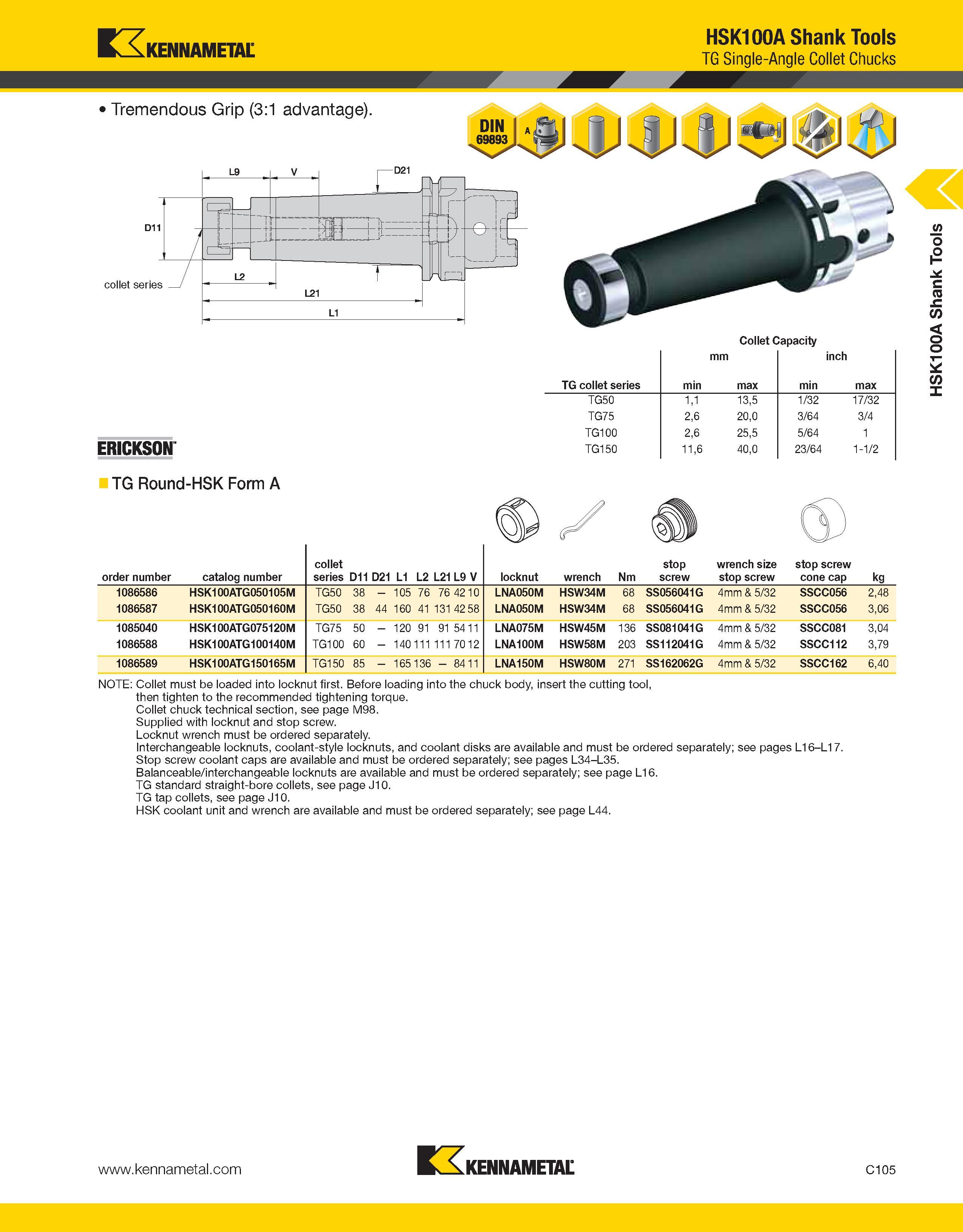

Kennametal HSK100A Shank Tools TG Single-Angle Collet Chucks Tremendous Grip (3:1 advantage). collet series L9 \nO T i 1 1 ii- ’ 1 b <±- ERICKSON Collet Capacity mm inch TG collet series min max min max TG50 1,1 13,5 1/32 17/32 TG75 2,6 20,0 3/64 3/4 TG100 2,6 25,5 5/64 1 TG150 11,6 40,0 23/64 1-1/2 TG Round-HSK Form A order number catalog number collet series D11 D21 L1 L2 L21 L9 V locknut wrench Nm stop screw wrench size stop screw stop screw cone cap kg 1086586 HSK100ATG050105M TG50 38 - 105 76 76 4210 LNA050M HSW34M 68 SS056041G 4mm & 5/32 SSCC056 2,48 1086587 HSK100ATG050160M TG50 38 44 160 41 131 42 58 LNA050M HSW34M 68 SS056041G 4mm & 5/32 SSCC056 3,06 1085040 HSK100ATG075120M TG75 50 - 120 91 91 54 11 LNA075M HSW45M 136 SS081041G 4mm & 5/32 SSCC081 3,04 1086588 HSK100ATG100140M TG100 60 - 140111 111 7012 LNA100M HSW58M 203 SS112041G 4mm & 5/32 SSCC112 3,79 1086589 HSK100ATG150165M TG150 85 - 165136 - 8411 LNA150M HSW80M 271 SS162062G 4mm & 5/32 SSCC162 6,40 NOTE: Collet must be loaded into locknut first. Before loading into the chuck body, insert the cutting tool, then tighten to the recommended tightening torque. Collet chuck technical section, see page M98. Supplied with locknut and stop screw. Locknut wrench must be ordered separately. Interchangeable locknuts, coolant-style locknuts, and coolant disks are available and must be ordered separately; see pages L16-L17. Stop screw coolant caps are available and must be ordered separately; see pages L34-L35. Balanceable/interchangeable locknuts are available and must be ordered separately; see page L16. TG standard straight-bore collets, see page J10. TG tap collets, see page J10. HSK coolant unit and wrench are available and must be ordered separately; see page L44. Kennametal C105 HSK100A Shank Tools
