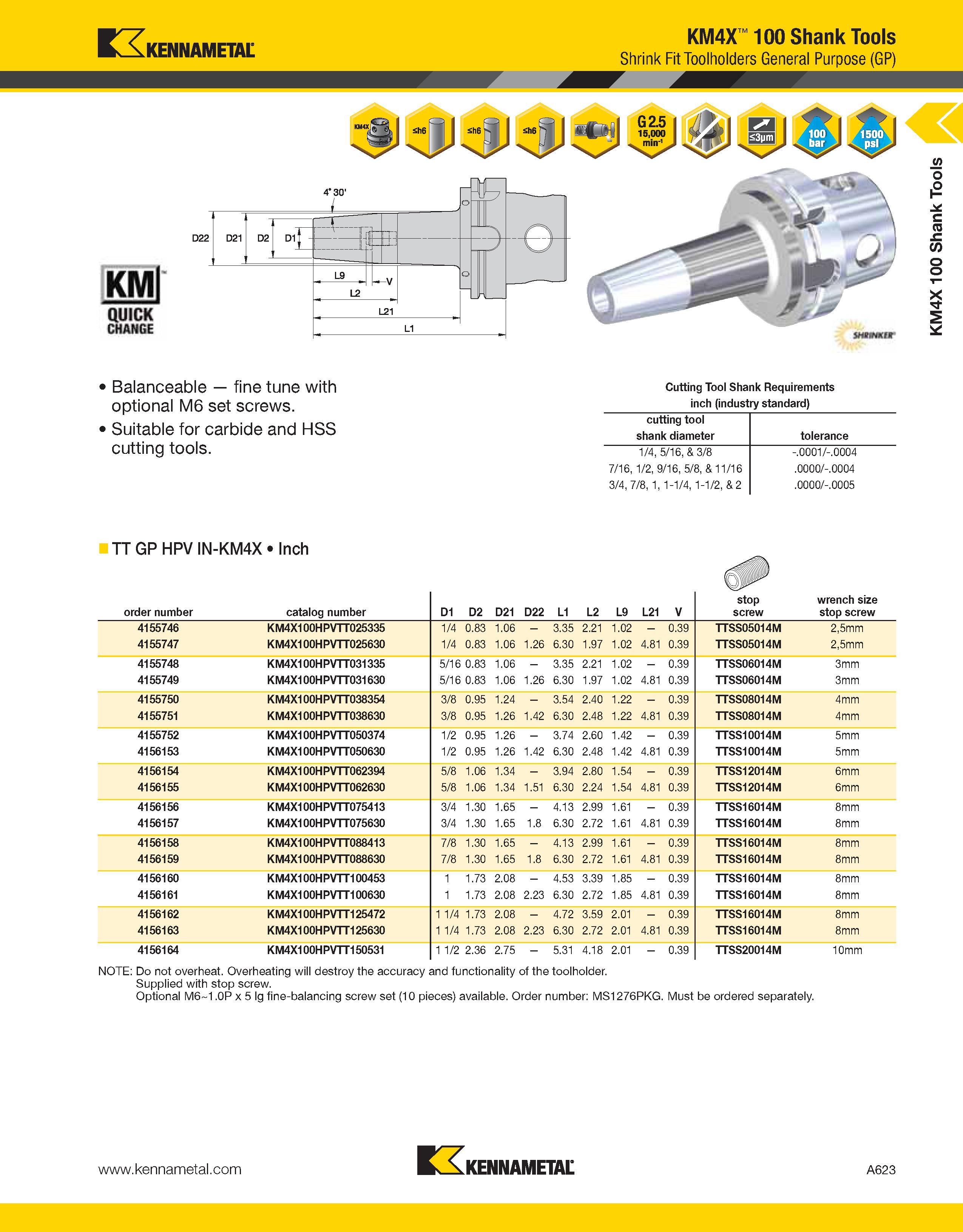

Kennametal KM4X 100 Shank Tools Shrink Fit Toolholders General Purpose (GP) Balanceable fine tune with optional M6 set screws. Suitable for carbide and HSS cutting tools. Cutting Tool Shank Requirements inch (industry standard) cutting tool shank diameter tolerance 1/4, 5/16, & 3/8 -.0001/-.0004 7/16, 1/2, 9/16, 5/8, & 11/16 .0000/-.0004 3/4, 7/8, 1, 1-1/4, 1-1/2, & 2 .0000/-.0005 TT GP HPV IN-KM4X Inch order number catalog number D1 D2 D21 D22 L1 L2 L9 L21 V stop screw wrench size stop screw 4155746 KM4X100HPVTT025335 1/4 0.83 1.06 3.35 2.21 1.02 0.39 TTSS05014M 2,5mm 4155747 KM4X100HPVTT025630 1/4 0.83 1.06 1.26 6.30 1.97 1.02 4.81 0.39 TTSS05014M 2,5mm 4155748 KM4X100HPVTT031335 5/16 0.83 1.06 3.35 2.21 1.02 0.39 TTSS06014M 3mm 4155749 KM4X100HPVTT031630 5/16 0.83 1.06 1.26 6.30 1.97 1.02 4.81 0.39 TTSS06014M 3mm 4155750 KM4X100HPVTT038354 3/8 0.95 1.24 3.54 2.40 1.22 0.39 TTSS08014M 4mm 4155751 KM4X100HPVTT038630 3/8 0.95 1.26 1.42 6.30 2.48 1.22 4.81 0.39 TTSS08014M 4mm 4155752 KM4X100HPVTT050374 1/2 0.95 1.26 3.74 2.60 1.42 0.39 TTSS10014M 5mm 4156153 KM4X100HPVTT050630 1/2 0.95 1.26 1.42 6.30 2.48 1.42 4.81 0.39 TTSS10014M 5mm 4156154 KM4X100HPVTT062394 5/8 1.06 1.34 3.94 2.80 1.54 0.39 TTSS12014M 6mm 4156155 KM4X100HPVTT062630 5/8 1.06 1.34 1.51 6.30 2.24 1.54 4.81 0.39 TTSS12014M 6mm 4156156 KM4X100HPVTT075413 3/4 1.30 1.65 4.13 2.99 1.61 0.39 TTSS16014M 8mm 4156157 KM4X100HPVTT075630 3/4 1.30 1.65 1.8 6.30 2.72 1.61 4.81 0.39 TTSS16014M 8mm 4156158 KM4X100HPVTT088413 7/8 1.30 1.65 4.13 2.99 1.61 0.39 TTSS16014M 8mm 4156159 KM4X100HPVTT088630 7/8 1.30 1.65 1.8 6.30 2.72 1.61 4.81 0.39 TTSS16014M 8mm 4156160 KM4X100HPVTT100453 1 1.73 2.08 4.53 3.39 1.85 0.39 TTSS16014M 8mm 4156161 KM4X100HPVTT100630 1 1.73 2.08 2.23 6.30 2.72 1.85 4.81 0.39 TTSS16014M 8mm 4156162 KM4X100HPVTT125472 1 1/4 1.73 2.08 4.72 3.59 2.01 0.39 TTSS16014M 8mm 4156163 KM4X100HPVTT125630 1 1/4 1.73 2.08 2.23 6.30 2.72 2.01 4.81 0.39 TTSS16014M 8mm 4156164 KM4X100HPVTT150531 1 1/2 2.36 2.75 5.31 4.18 2.01 0.39 TTSS20014M 10mm NOTE: Do not overheat. Overheating will destroy the accuracy and functionality of the toolholder. Supplied with stop screw. Optional M6 1.0P x 5 lg fine-balancing screw set (10 pieces) available. Order number: MS1276PKG. Must be ordered separately. n, KENNAMETAL A623 KM4X 100 Shank Tools
