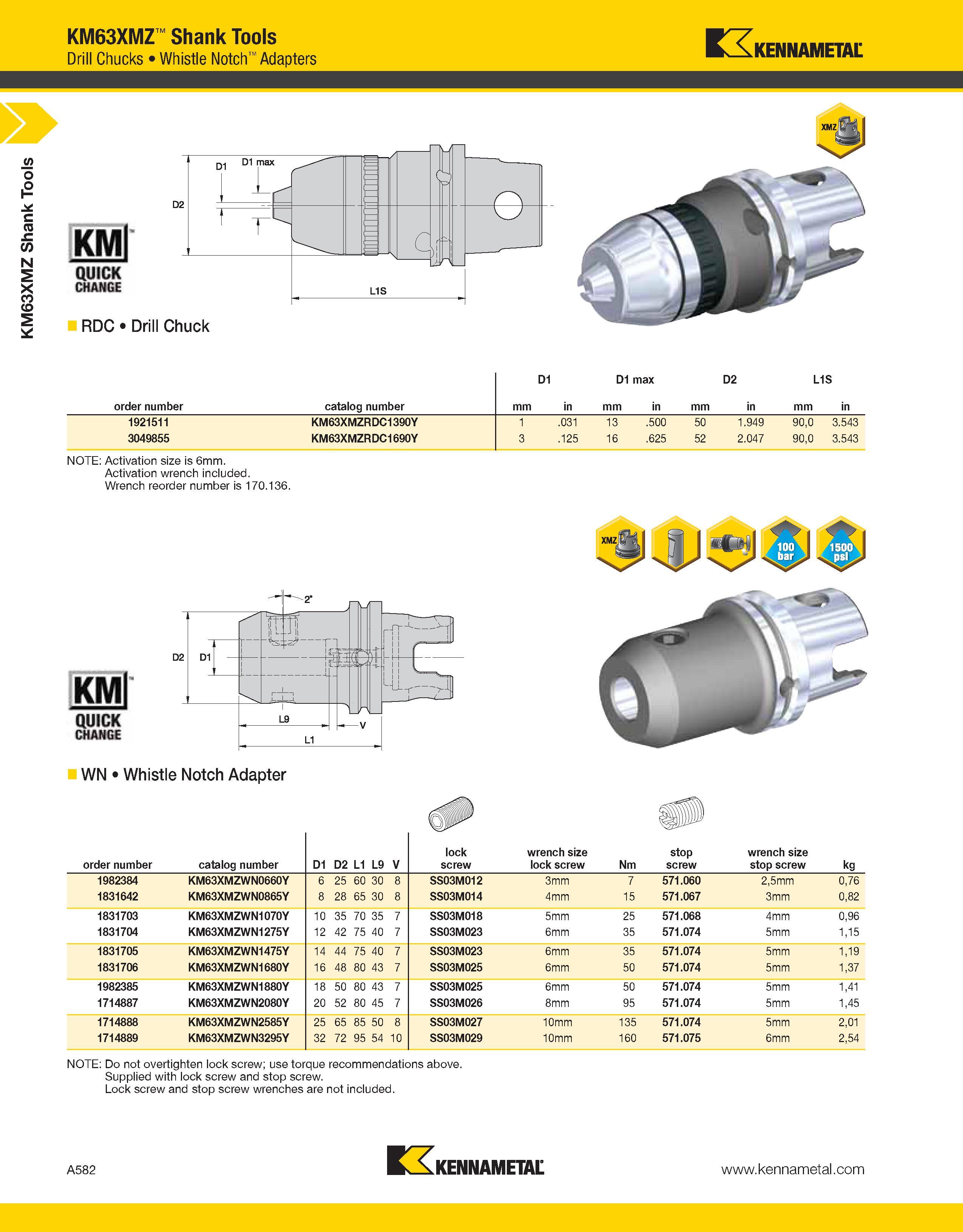

a KM63XMZ Shank Tools KM63XMZ Shank Tools Drill Chucks Whistle Notch Adapters Kennametal KMl QUICK CHANGE RDC Drill Chuck D1 D1 max D2 L1S order number catalog number mm in 1921511 KM63XMZRDC1390Y 1 .031 13 .500 50 1.949 90,0 3.543 3049855 KM63XMZRDC1690Y 3 .125 16 .625 52 2.047 90,0 3.543 NOTE: Activation size is 6mm. Activation wrench included. Wrench reorder number is 170.136. KMl QUICK CHANGE 5 h WN Whistle Notch Adapter order number catalog number D1 D2 L1 L9 V lock screw wrench size lock screw Nm stop screw wrench size stop screw kg 1982384 KM63XMZWN0660Y 6 25 60 30 8 SS03M012 3mm 7 571.060 2,5mm 0,76 1831642 KM63XMZWN0865Y 8 28 65 30 8 SS03M014 4mm 15 571.067 3mm 0,82 1831703 KM63XMZWN1070Y 10 35 70 35 7 SS03M018 5mm 25 571.068 4mm 0,96 1831704 KM63XMZWN1275Y 12 42 75 40 7 SS03M023 6mm 35 571.074 5mm 1,15 1831705 KM63XMZWN1475Y 14 44 75 40 7 SS03M023 6mm 35 571.074 5mm 1,19 1831706 KM63XMZWN1680Y 16 48 80 43 7 SS03M025 6mm 50 571.074 5mm 1,37 1982385 KM63XMZWN1880Y 18 50 80 43 7 SS03M025 6mm 50 571.074 5mm 1,41 1714887 KM63XMZWN2080Y 20 52 80 45 7 SS03M026 8mm 95 571.074 5mm 1,45 1714888 KM63XMZWN2585Y 25 65 85 50 8 SS03M027 10mm 135 571.074 5mm 2,01 1714889 KM63XMZWN3295Y 32 72 95 54 10 SS03M029 10mm 160 571.075 6mm 2,54 NOTE: Do not overtighten lock screw; use torque recommendations above. Supplied with lock screw and stop screw. Lock screw and stop screw wrenches are not included. n, A582 KENNAMETAL
