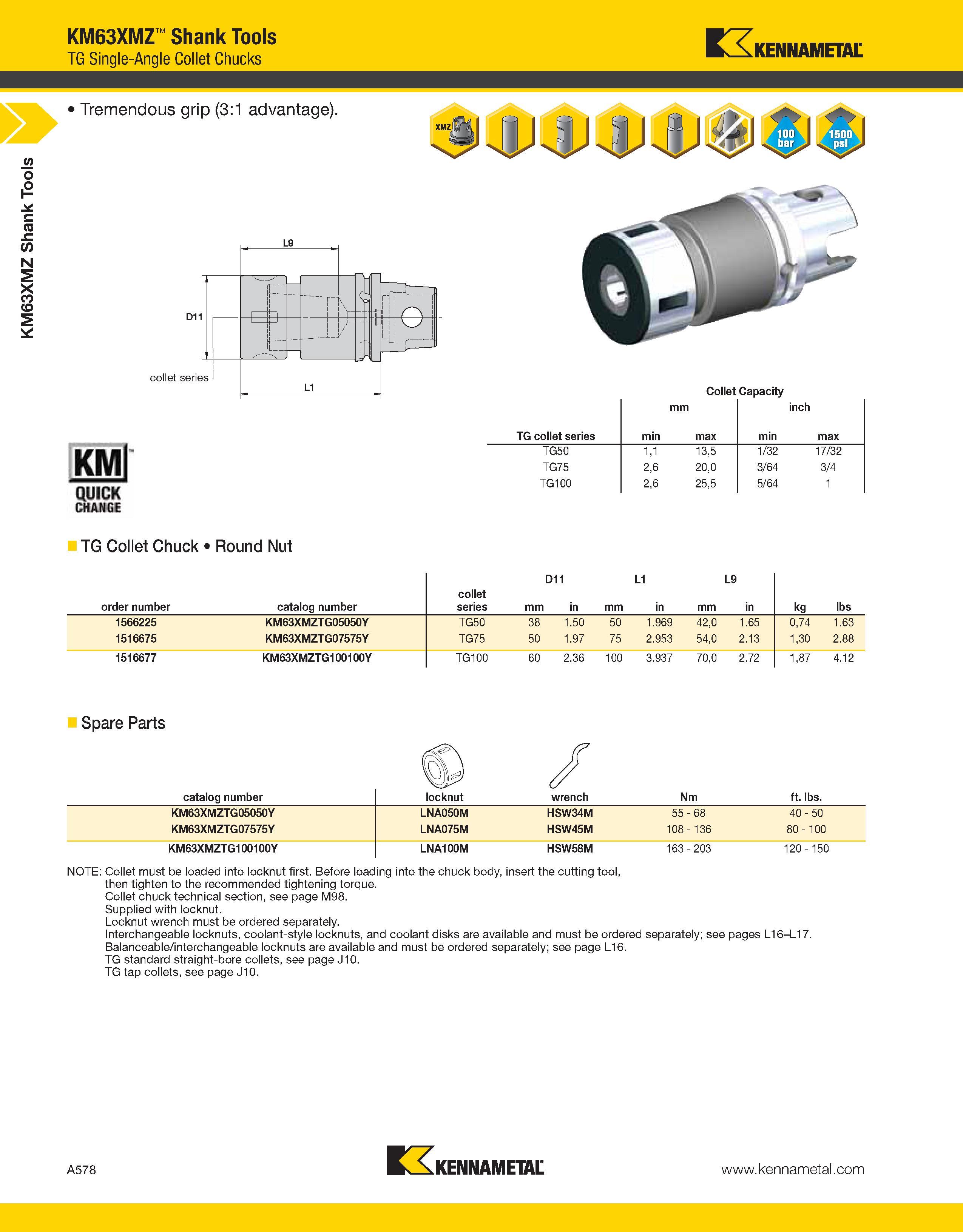

a KM63XMZ Shank Tools KM63XMZ Shank Tools TG Single-Angle Collet Chucks Kennametal Tremendous grip (3:1 advantage). collet series Collet Capacity TG collet series min mm max min inch max TG50 1,1 13,5 1/32 17/32 TG75 2,6 20,0 3/64 3/4 TG100 2,6 25,5 5/64 1 TG Collet Chuck Round Nut order number catalog number collet series D11 mm in mm L1 in L9 mm in kg lbs 1566225 KM63XMZTG05050Y TG50 38 1.50 50 1.969 42,0 1.65 0,74 1.63 1516675 KM63XMZTG07575Y TG75 50 1.97 75 2.953 54,0 2.13 1,30 2.88 1516677 KM63XMZTG100100Y TG100 60 2.36 100 3.937 70,0 2.72 1,87 4.12 Spare Parts catalog number locknut wrench Nm ft. lbs. KM63XMZTG05050Y LNA050M HSW34M 55 - 68 40 - 50 KM63XMZTG07575Y LNA075M HSW45M 108 - 136 80 - 100 KM63XMZTG100100Y LNA100M HSW58M 163 - 203 120 - 150 NOTE: Collet must be loaded into locknut first. Before loading into the chuck body, insert the cutting tool, then tighten to the recommended tightening torque. Collet chuck technical section, see page M98. Supplied with locknut. Locknut wrench must be ordered separately. Interchangeable locknuts, coolant-style locknuts, and coolant disks are available and must be ordered separately; see pages L16-L17. Balanceable/interchangeable locknuts are available and must be ordered separately; see page L16. TG standard straight-bore collets, see page J10. TG tap collets, see page J10. A578 Kennametal
