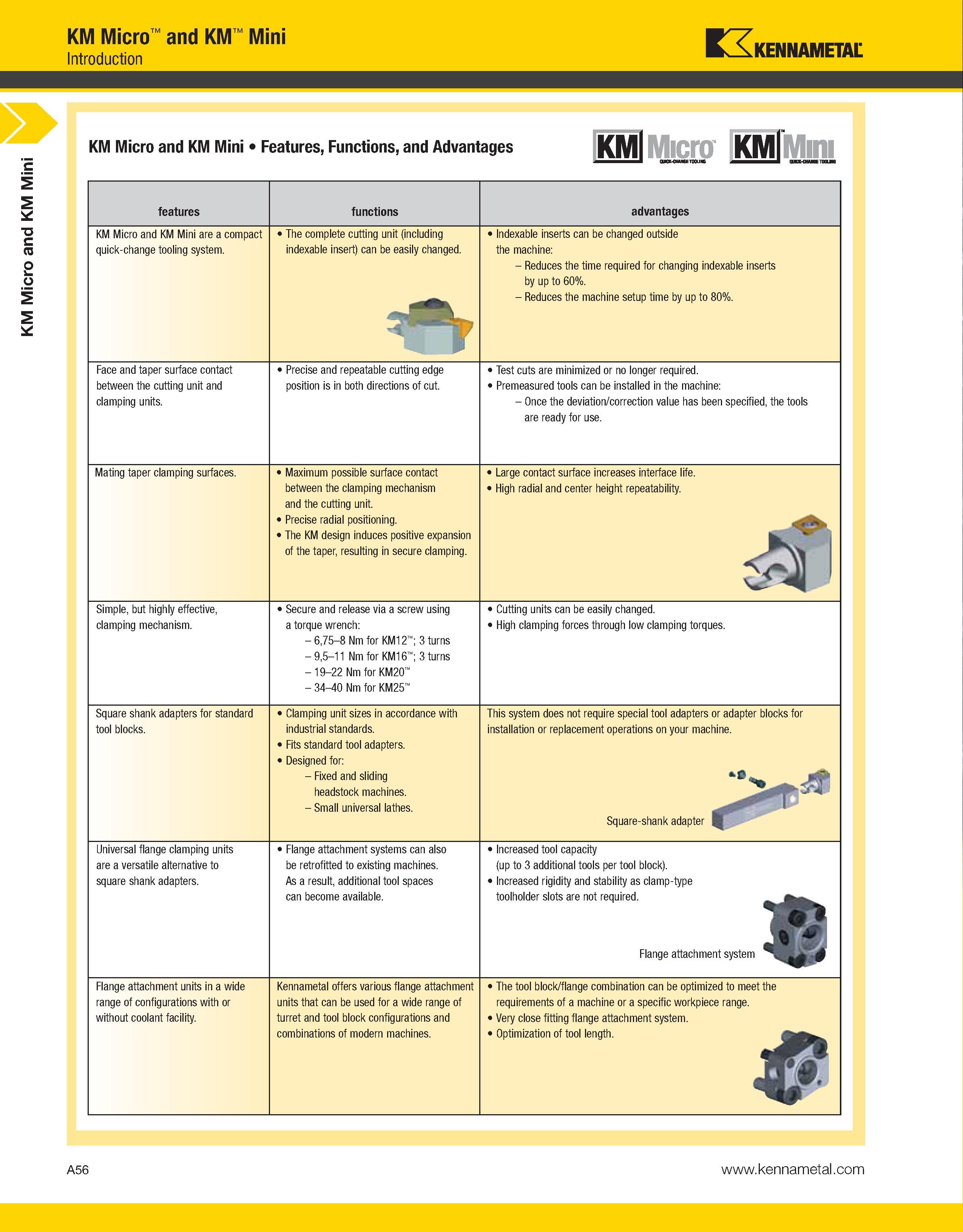

a KM Micro and KM Mini KM Micro and KM Mini Introduction Kennametal KM Micro and KM Mini Features, Functions, and Advantages KMlf KMlMw CU( -CHWEtTtKXJ IMCX-OMH TOOLIM features functions advantages KM Micro and KM Mini are a compact quick-change tooling system. The complete cutting unit (including indexable insert) can be easily changed. Indexable inserts can be changed outside the machine: - Reduces the time required for changing indexable inserts by up to 60%. - Reduces the machine setup time by up to 80%. Face and taper surface contact between the cutting unit and clamping units. Precise and repeatable cutting edge position is in both directions of cut. Test cuts are minimized or no longer required. Premeasured tools can be installed in the machine: - Once the deviation/correction value has been specified, the tools are ready for use. Mating taper clamping surfaces. Maximum possible surface contact between the clamping mechanism and the cutting unit. Precise radial positioning. The KM design induces positive expansion of the taper, resulting in secure clamping. Large contact surface increases interface life. High radial and center height repeatability. Simple, but highly effective, clamping mechanism. Secure and release via a screw using a torque wrench: -6,75-8 Nm for KM12"; 3 turns -9,5-11 Nm for KM16"; 3 turns -19-22 Nm for KM20 - 34-40 Nm for KM25 Cutting units can be easily changed. High clamping forces through low clamping torques. Square shank adapters for standard tool blocks. Clamping unit sizes in accordance with industrial standards. Fits standard tool adapters. Designed for: - Fixed and sliding headstock machines. - Small universal lathes. This system does not require special tool adapters or adapter blocks for installation or replacement operations on your machine. Square-shank adapter Universal flange clamping units are a versatile alternative to square shank adapters. Flange attachment systems can also be retrofitted to existing machines. As a result, additional tool spaces can become available. Increased tool capacity (up to 3 additional tools per tool block). Increased rigidity and stability as clamp-type toolholder slots are not required. Flange attachment system Flange attachment units in a wide range of configurations with or without coolant facility. Kennametal offers various flange attachment units that can be used for a wide range of turret and tool block configurations and combinations of modern machines. The tool block/flange combination can be optimized to meet the requirements of a machine or a specific workpiece range. Very close fitting flange attachment system. Optimization of tool length. & A56
