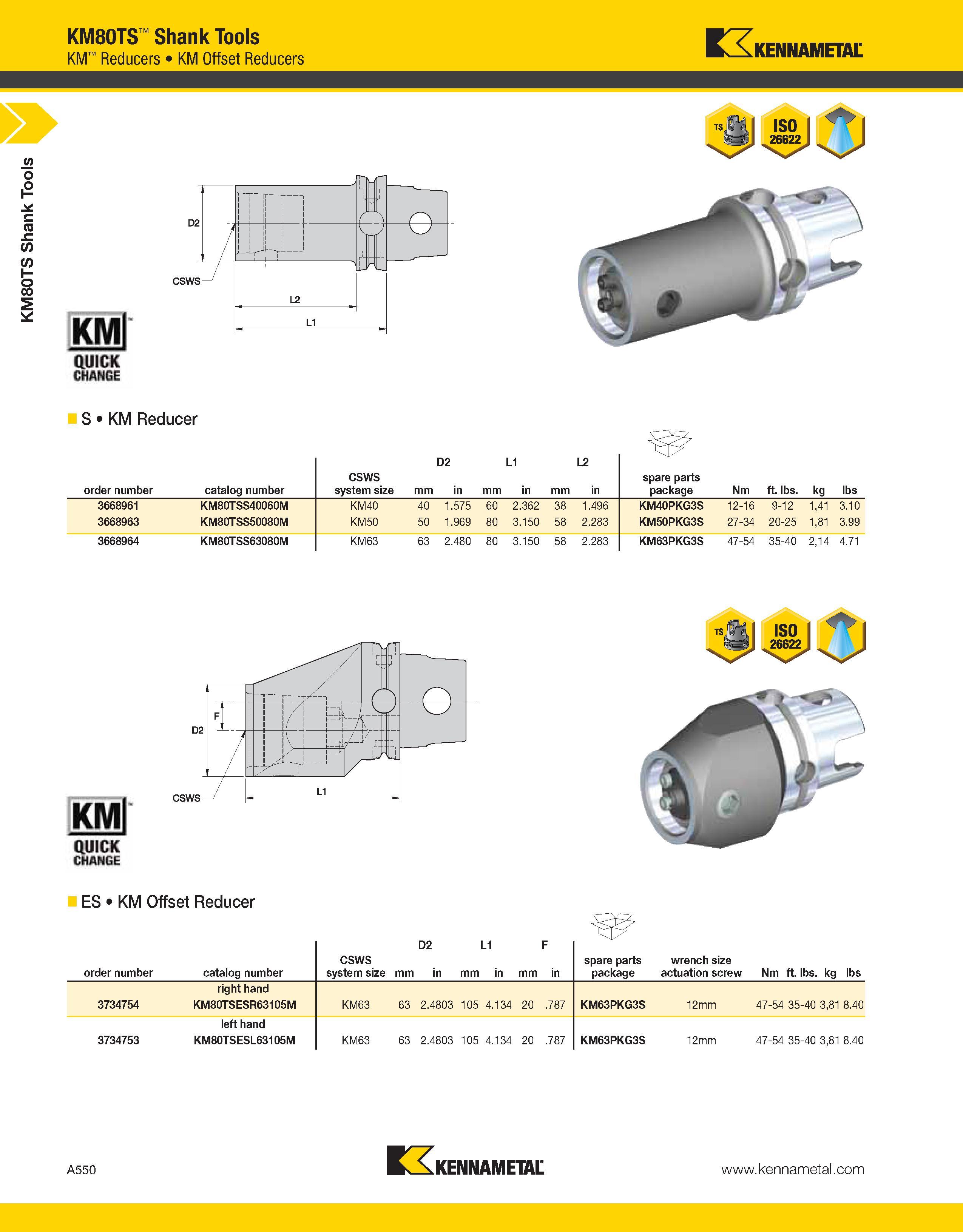

a KM80TS Shank Tools KM80TS Shank Tools KM Reducers KM Offset Reducers Kennametal S KM Reducer Ts ff I ISO I I order number catalog number CSWS system size mm D2 in mm L1 in mm L2 in spare parts package Nm ft. lbs. kg lbs 3668961 KM80TSS40060M KM40 40 1.575 60 2.362 38 1.496 KM40PKG3S 12-16 9-12 1,41 3.10 3668963 KM80TSS50080M KM50 50 1.969 80 3.150 58 2.283 KM50PKG3S 27-34 20-25 1,81 3.99 3668964 KM80TSS63080M KM63 63 2.480 80 3.150 58 2.283 KM63PKG3S 47-54 35-40 2,14 4.71 ES KM Offset Reducer TSJS&I ISO I I order number catalog number CSWS system size mm D2 in mm L1 in mm F in spare parts package wrench size actuation screw Nm ft. lbs. kg lbs 3734754 right hand KM80TSESR63105M KM63 63 2.4803 105 4.134 20 .787 KM63PKG3S 12mm 47-54 35-40 3,81 8.40 3734753 left hand KM80TSESL63105M KM63 63 2.4803 105 4.134 20 .787 KM63PKG3S 12mm 47-54 35-40 3,81 8.40 A550 n, KENNAMETAL
