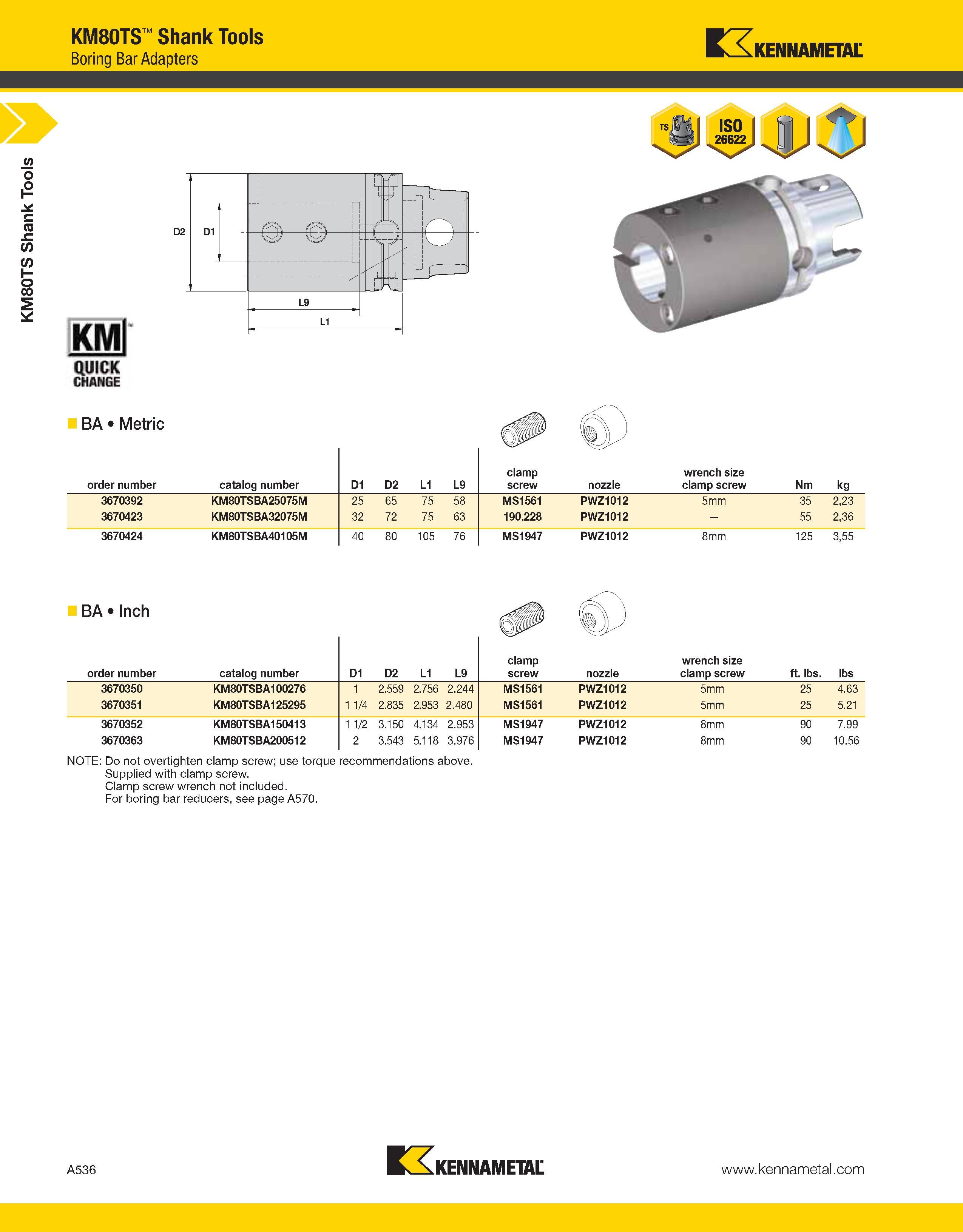

a KM80TS Shank Tools KM80TS Shank Tools Boring Bar Adapters Kennametal BA Metric order number catalog number D1 D2 L1 L9 clamp screw nozzle wrench size clamp screw Nm kg 3670392 KM80TSBA25075M 25 65 75 58 MS1561 PWZ1012 5mm 35 2,23 3670423 KM80TSBA32075M 32 72 75 63 190.228 PWZ1012 - 55 2,36 3670424 KM80TSBA40105M 40 80 105 76 MS1947 PWZ1012 8mm 125 3,55 BA Inch order number catalog number D1 D2 L1 L9 clamp screw nozzle wrench size clamp screw ft. lbs. lbs 3670350 KM80TSBA100276 1 2.559 2.756 2.244 MS1561 PWZ1012 5mm 25 4.63 3670351 KM80TSBA125295 1 1/4 2.835 2.953 2.480 MS1561 PWZ1012 5mm 25 5.21 3670352 KM80TSBA150413 1 1/2 3.150 4.134 2.953 MS1947 PWZ1012 8mm 90 7.99 3670363 KM80TSBA200512 2 3.543 5.118 3.976 MS1947 PWZ1012 8mm 90 10.56 NOTE: Do not overtighten clamp screw; use torque recommendations above. Supplied with clamp screw. Clamp screw wrench not included. For boring bar reducers, see page A570. A536 Kennametal
