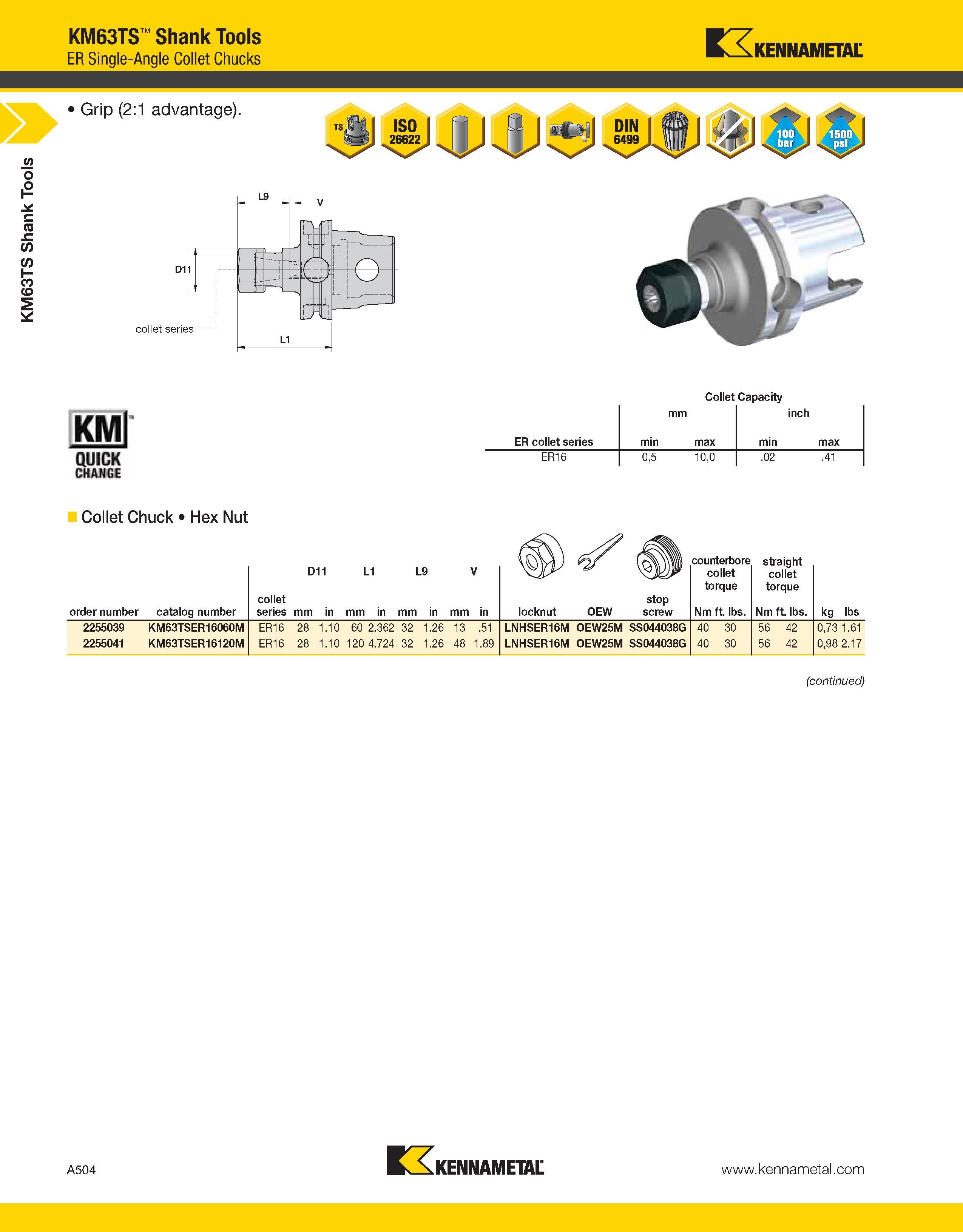

a KM63TS Shank Tools KM63TS Shank Tools ER Single-Angle Collet Chucks Kennametal Collet Capacity mm inch ER collet series min max min max ER16 0,5 10,0 .02 .41 Collet Chuck Hex Nut order number catalog number D11 L1 L9 collet series mm in locknut OEW stop screw counterbore straight collet torque Nm ft. lbs. collet torque Nm ft. lbs. kg lbs 2255039 2255041 KM63TSER16060M KM63TSER16120M ER16 ER16 28 1.10 60 2.362 32 28 1.10 120 4.724 32 1.26 13 .51 1.26 48 1.89 LNHSER16M OEW25M SS044038G LNHSER16M OEW25M SS044038G 40 30 40 30 56 42 56 42 0,73 1.61 0,98 2.17 (continued) V A504 Kennametal
