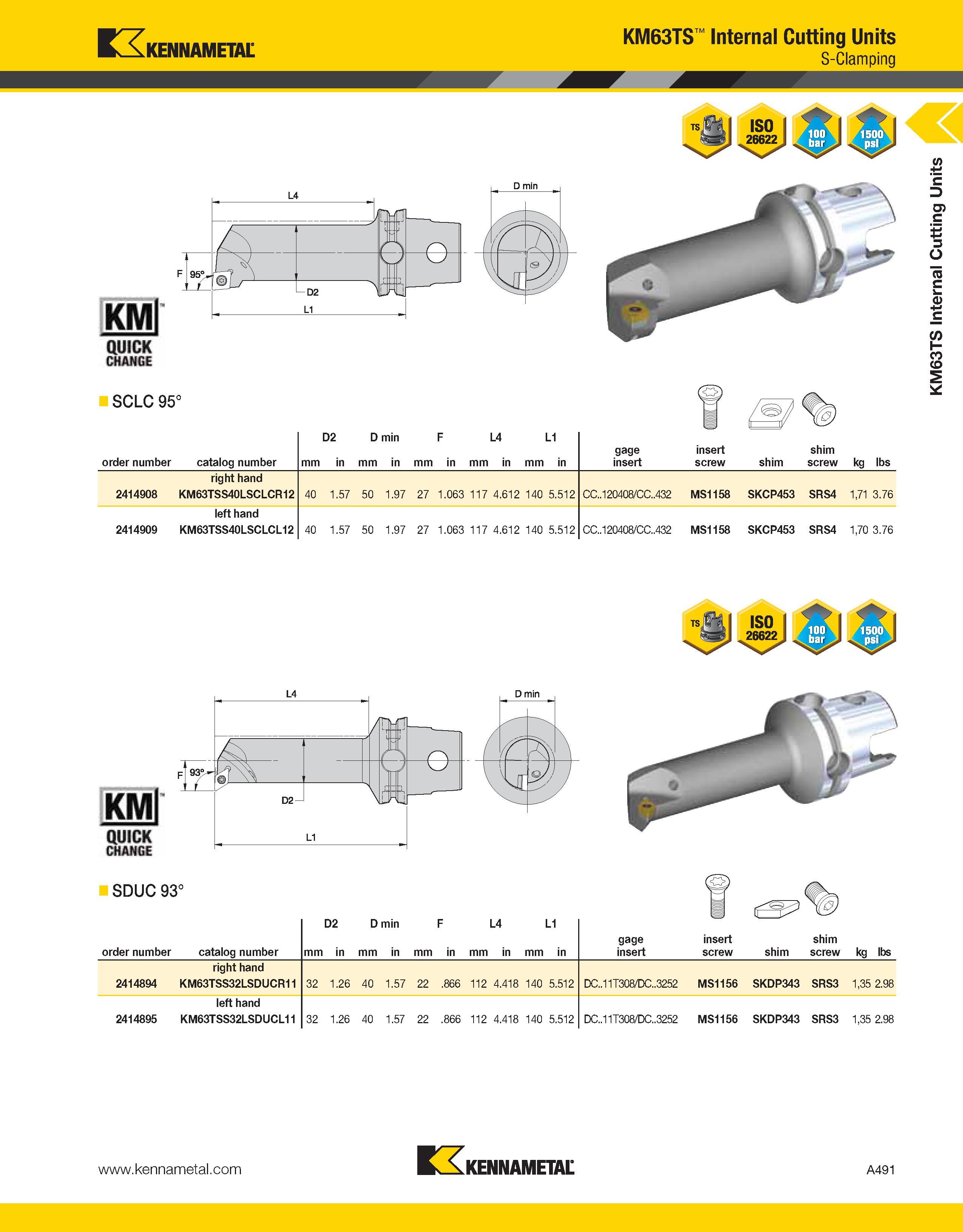

Kennametal KMl QUJCK CHANGE L4 ± D2 LI _ -e- KM63TS Internal Cutting Units S-Clamping SCLC 95° order number catalog number mm D2 in D min mm in mm F in mm L4 in mm L1 in gage insert insert screw shim shim screw kg lbs 2414908 right hand KM63TSS40LSCLCR12 40 1.57 50 1.97 27 1.063 117 4.612 140 5.512 CC..120408/CC..432 MS1158 SKCP453 SRS4 1,71 3.76 2414909 left hand KM63TSS40LSCLCL12 40 1.57 50 1.97 27 1.063 117 4.612 140 5.512 CC..120408/CC..432 MS1158 SKCP453 SRS4 1,70 3.76 SDUC 93° QUICK CHANGE order number catalog number mm D2 in D min mm in mm F in L4 mm in L1 mm in gage insert insert screw shim shim screw kg lbs right hand 2414894 KM63TSS32LSDUCR11 32 1.26 40 1.57 22 .866 112 4.418 140 5.512 DC..11T308/DC..3252 MS1156 SKDP343 SRS3 1,35 2.98 left hand 2414895 KM63TSS32LSDUCL11 32 1.26 40 1.57 22 .866 112 4.418 140 5.512 DC..11T308/DC..3252 MS1156 SKDP343 SRS3 1,35 2.98 n, KENNAMETAL A491 KM63TS Internal Cutting Units
