470 Каталог KENNAMETAL 2013 Инструментальная оснастка для металлорежущих станков Стр.A430

Каталог KENNAMETAL 2013 Инструментальная оснастка Стр. A430 0470 Lab2u

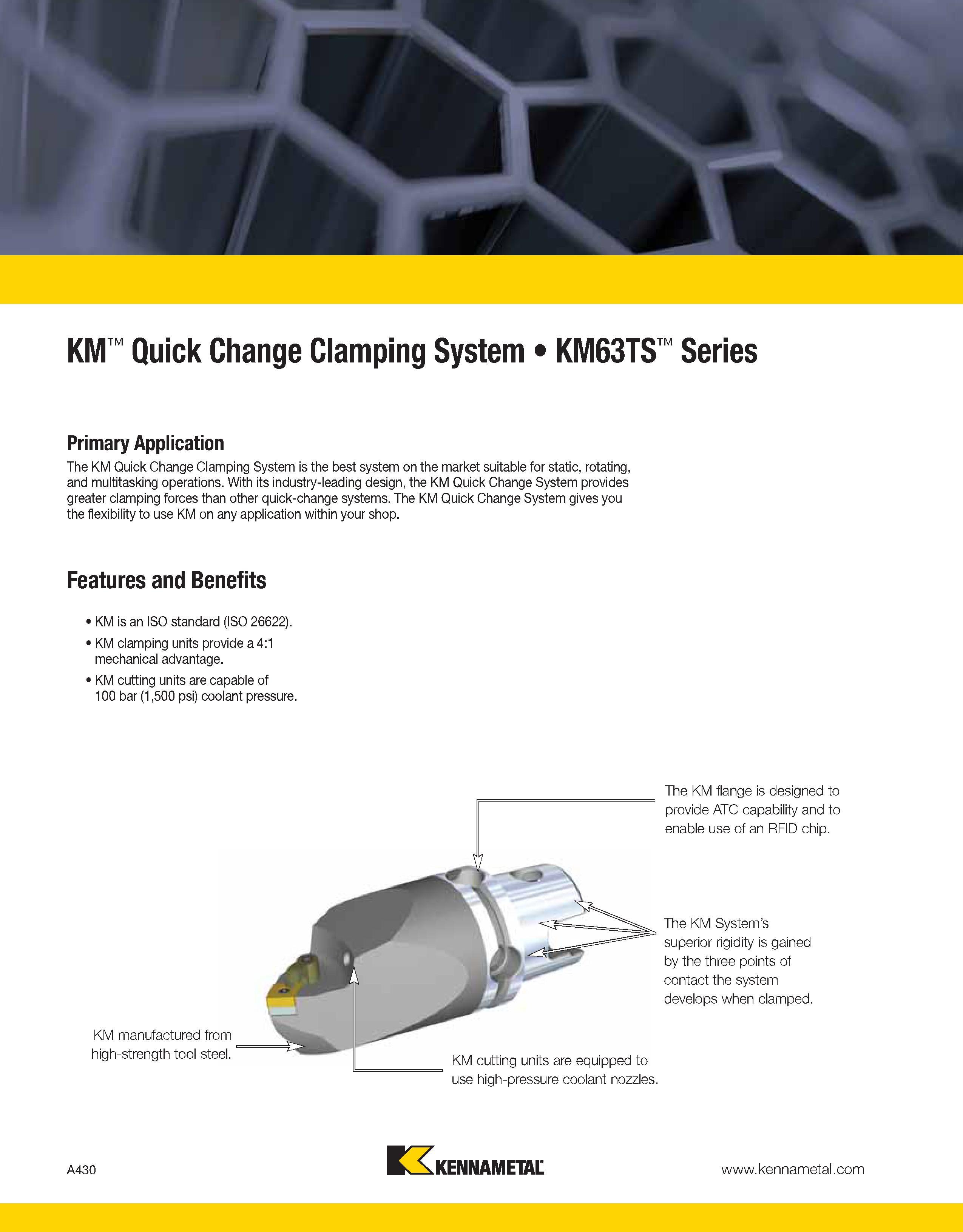

Primary Application The KM Quick Change Clamping System is the best system on the market suitable for static, rotating, and multitasking operations. With its industry-leading design, the KM Quick Change System provides greater clamping forces than other quick-change systems. The KM Quick Change System gives you the flexibility to use KM on any application within your shop. Features and Benefits KM is an ISO standard (ISO 26622). KM clamping units provide a 4:1 mechanical advantage. KM cutting units are capable of 100 bar (1,500 psi) coolant pressure. KM manufactured from high-strength tool steel. The KM flange is designed to provide ATC capability and to enable use of an RFID chip. The KM System’s superior rigidity is gained by the three points of contact the system develops when clamped. KM cutting units are equipped to use high-pressure coolant nozzles. A430 Kennametal
