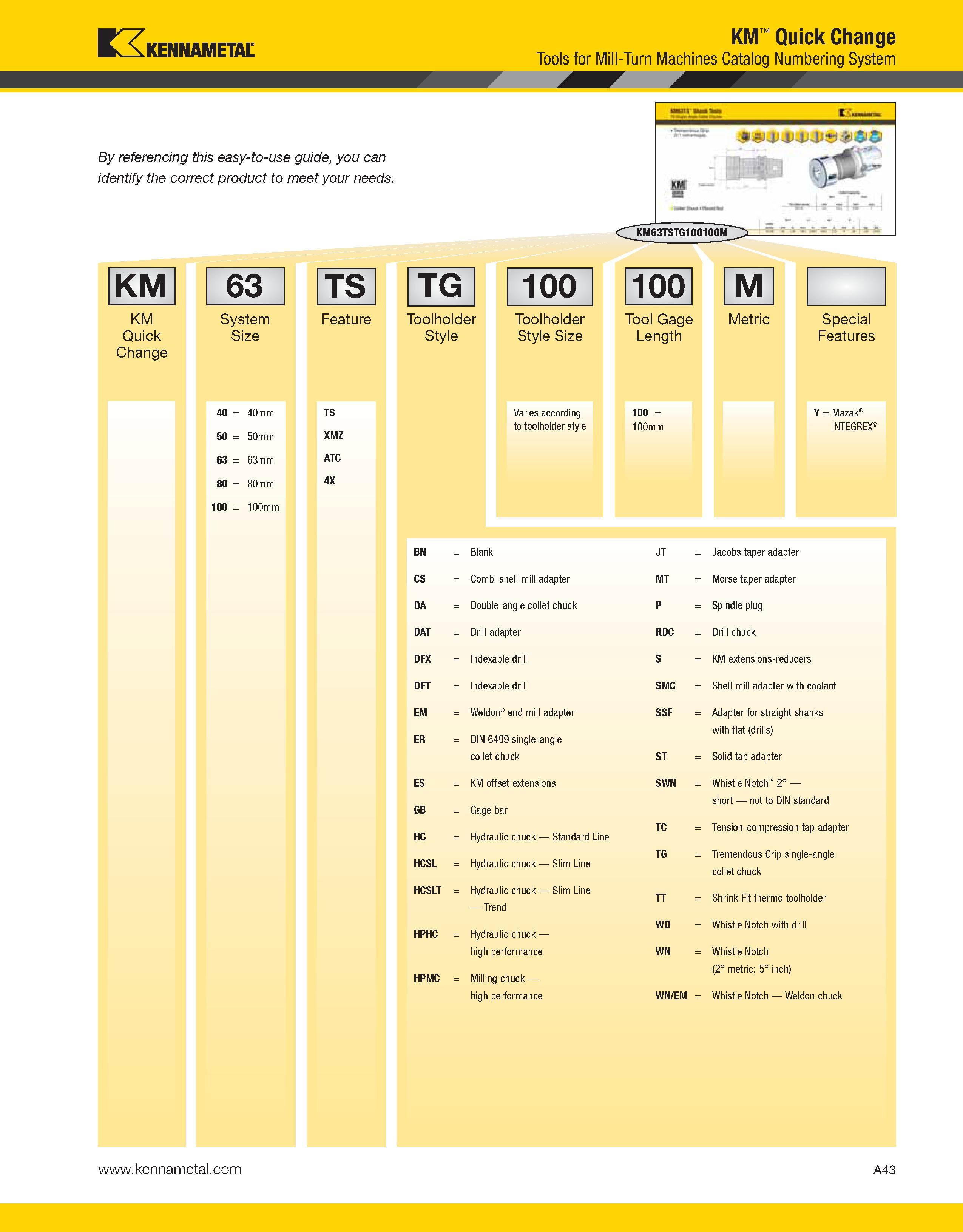

Kennametal By referencing this easy-to-use guide, you can identify the correct product to meet your needs. KM Quick Change Tools for Mill-Turn Machines Catalog Numbering System . i. - HP EP <; KM63TSTG100100M ;;:;X KM Quick Change System Size Feature KM 63 TS TG 100 100 M Toolholder Toolholder Style Style Size Tool Gage Length Metric Special Features 40 50 63 80 100 40mm 50mm 63mm 80mm 100mm TS XMZ ATC 4X Varies according 100 = to toolholder style 100mm Y = Mazak INTEGREX BN = Blank JT = Jacobs taper adapter CS = Combi shell mill adapter MT = Morse taper adapter DA = Double-angle collet chuck P = Spindle plug DAT = Drill adapter RDC = Drill chuck DFX = Indexable drill S = KM extensions-reducers DFT = Indexable drill SMC = Shell mill adapter with coolant EM = Weldon end mill adapter SSF = Adapter for straight shanks ER = DIN 6499 single-angle with flat (drills) collet chuck ST = Solid tap adapter ES = KM offset extensions SWN = Whistle Notch 2° GB = Gage bar short not to DIN standard HC = Hydraulic chuck Standard Line TC = Tension-compression tap adapter HCSL = Hydraulic chuck Slim Line TG = Tremendous Grip single-angle collet chuck HCSLT = Hydraulic chuck Slim Line Trend TT = Shrink Fit thermo toolholder HPHC = Hydraulic chuck WD = Whistle Notch with drill high performance WN = Whistle Notch HPMC = Milling chuck (2° metric; 5° inch) high performance WN/EM = Whistle Notch Weldon chuck A43
