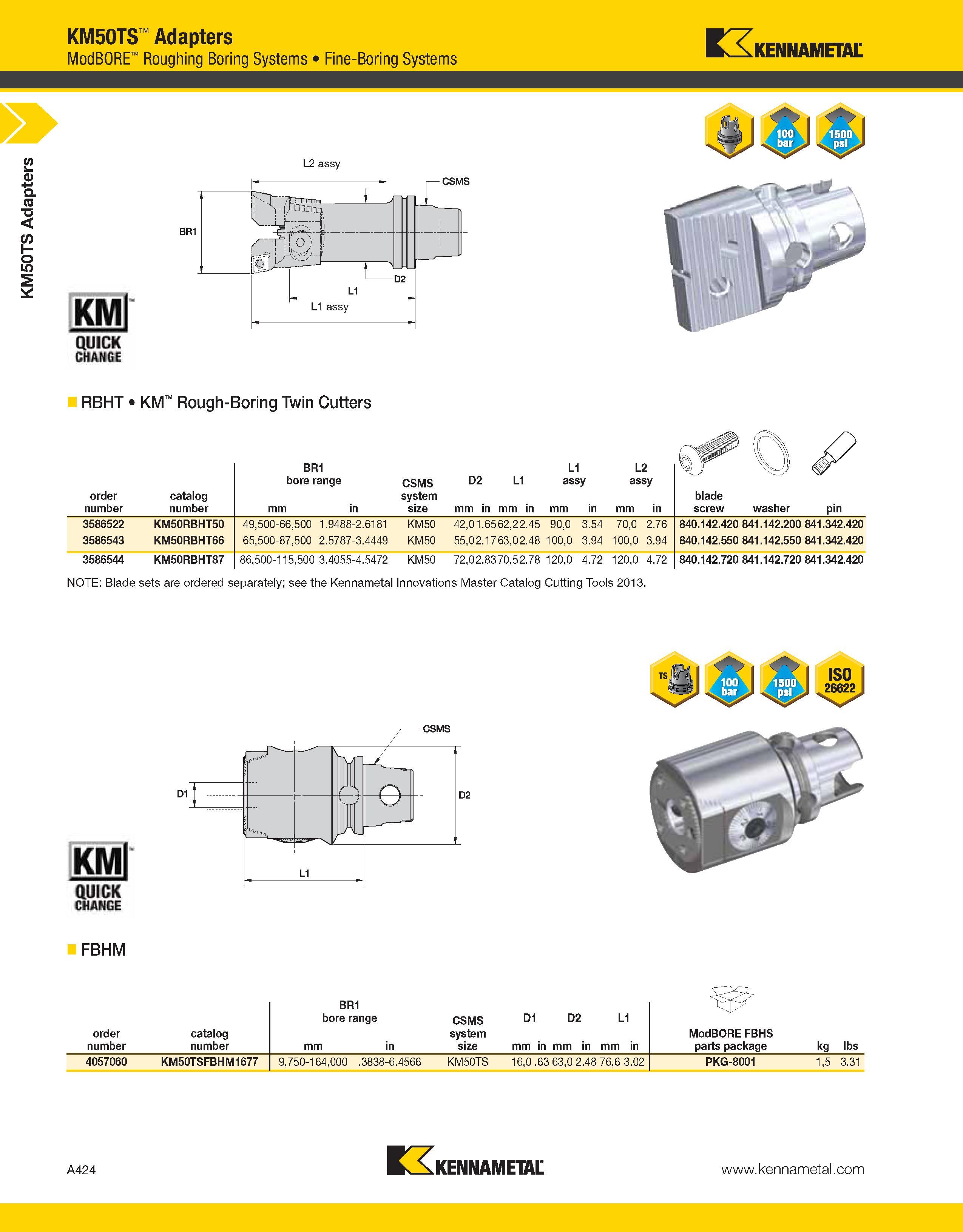

a KM50TS Adapters KM50TS Adapters ModBORE Roughing Boring Systems Fine-Boring Systems Kennametal L2 assy RBHT KM Rough-Boring Twin Cutters order number catalog number BR1 bore range mm in CSMS system size D2 L1 mm in L1 assy mm in L2 assy mm in 3586522 KM50RBHT50 49,500-66,500 1.9488-2.6181 KM50 42,01.6562,22.45 90,0 3.54 70,0 2.76 3586543 KM50RBHT66 65,500-87,500 2.5787-3.4449 KM50 55,02.1763,02.48 100,0 3.94 100,0 3.94 3586544 KM50RBHT87 86,500-115,500 3.4055-4.5472 KM50 72,02.8370,52.78 120,0 4.72 120,0 4.72 blade screw washer pin 840.142.420 841.142.200 841.342.420 840.142.550 841.142.550 841.342.420 840.142.720 841.142.720 841.342.420 NOTE: Blade sets are ordered separately; see the Kennametal Innovations Master Catalog Cutting Tools 2013. QUICK change FBHM order number catalog number BR1 bore range mm in CSMS system size D1 D2 L1 mm in ModBORE FBHS parts package kg lbs 4057060 KM50TSFBHM1677 9,750-164,000 .3838-6.4566 KM50TS 16,0.63 63,0 2.48 76,6 3.02 PKG-8001 1,5 3.31 A424 Kennametal
