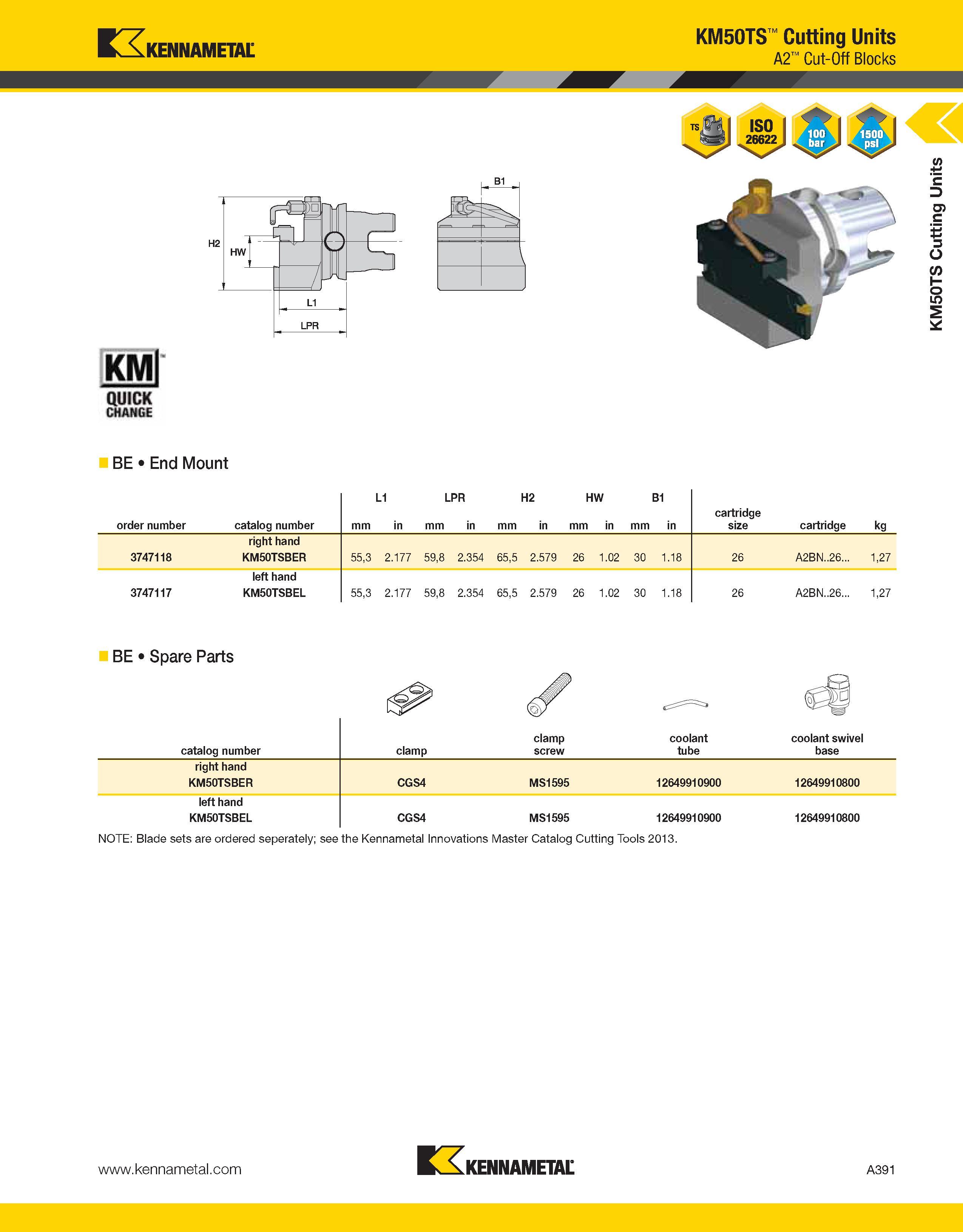

Kennametal UN B1 _ V KM50TS Cutting Units A2 Cut-Off Blocks BE End Mount order number catalog number mm L1 in LPR mm in H2 mm in HW mm in mm B1 in cartridge size cartridge kg 3747118 right hand KM50TSBER 55,3 2.177 59,8 2.354 65,5 2.579 26 1.02 30 1.18 26 A2BN..26... 1,27 3747117 left hand KM50TSBEL 55,3 2.177 59,8 2.354 65,5 2.579 26 1.02 30 1.18 26 A2BN..26... 1,27 BE Spare Parts catalog number clamp clamp screw coolant tube coolant swivel base right hand KM50TSBER CGS4 MS1595 12649910900 12649910800 left hand KM50TSBEL CGS4 MS1595 12649910900 12649910800 NOTE: Blade sets are ordered seperately; see the Kennametal Innovations Master Catalog Cutting Tools 2013. K3KENNAMETAL A391 KM50TS Cutting Units
