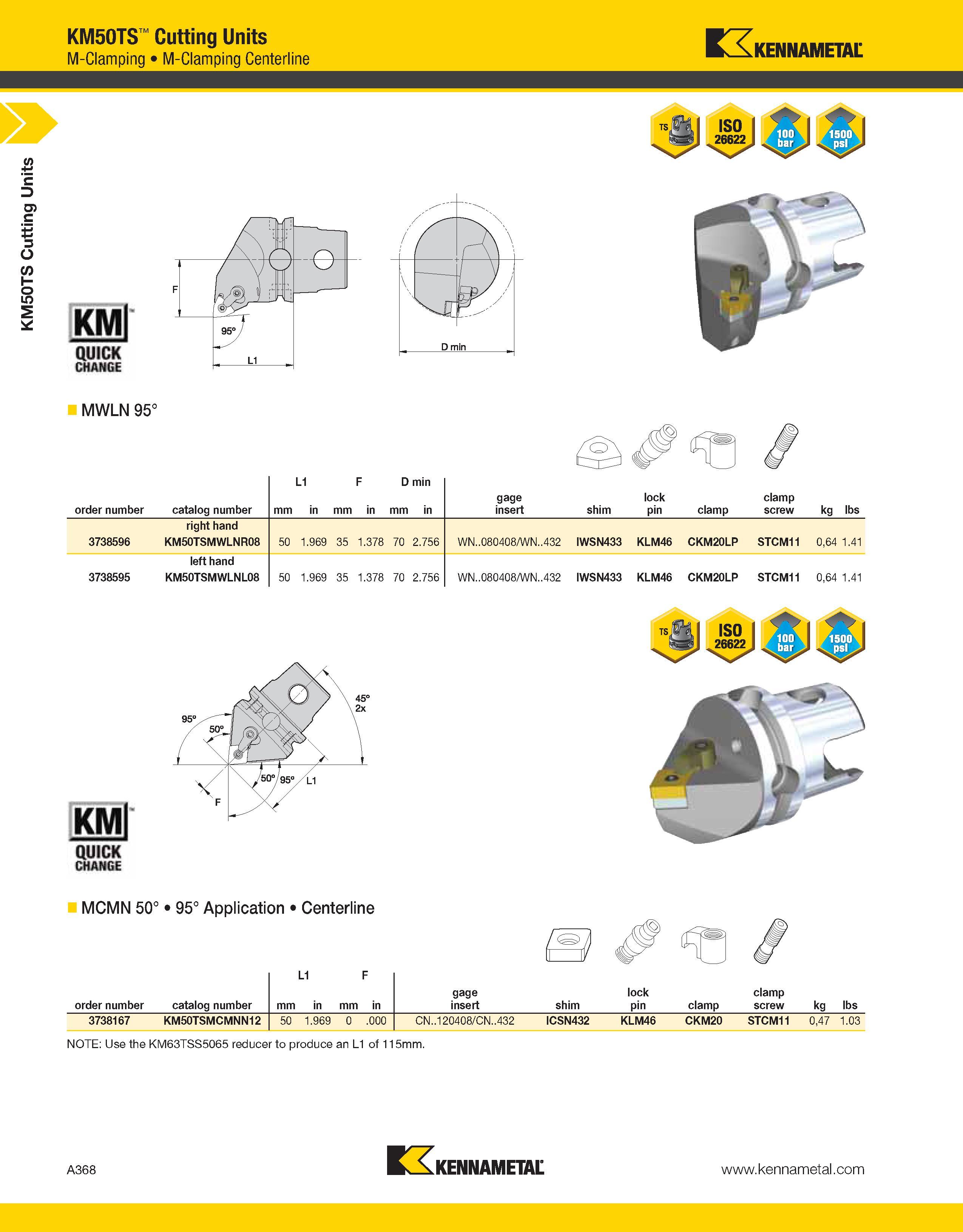

a KM50TS Cutting Units KM50TS Cutting Units M-Clamping M-Clamping Centerline Kennametal MWLN 95° order number catalog number mm L1 in mm F in D min mm in gage insert shim lock pin clamp clamp screw kg lbs 3738596 right hand KM50TSMWLNR08 50 1.969 35 1.378 70 2.756 WN..080408/WN..432 IWSN433 KLM46 CKM20LP STCM11 0,64 1.41 3738595 left hand KM50TSMWLNL08 50 1.969 35 1.378 70 2.756 WN..080408/WN..432 IWSN433 KLM46 CKM20LP STCM11 0,64 1.41 MCMN 50° 95° Application Centerline order number catalog number L1 F mm in gage insert shim lock pin clamp clamp screw kg lbs 3738167 KM50TSMCMNN12 50 1.969 0 .000 CN..120408/CN..432 ICSN432 KLM46 CKM20 STCM11 0,47 1.03 NOTE: Use the KM63TSS5065 reducer to produce an L1 of 115mm. A368 n, KENNAMETAL
